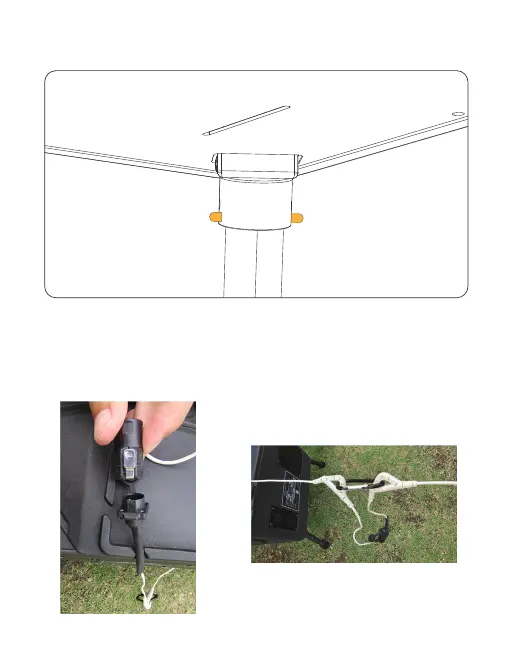

3.6.11 Stand the ground end of the TK3 upright, hold it by hand in the
position shown in the figure, and pull out the folding stand directly.
3.6.12 Installation tutorial of 30m extension cable
Pull out about 3m LP12 aviation
plug of the ground end and
connect it to the LP12 aviation
socket with a 30m extension
cable.
Connect the lifting ring on the
ground end cable to the lifting ring
with a 30m extension cable through
a quick-release buckle, as shown in
the figure.
70
