8 System Wiring Example
CIRCUIT
BREAKER
CIRCUIT
BREAKER
BUS BAR
NEGATIVE
FLOAT SWITCH
BILGE PUMP
POSITIVE
BUS BAR
SWITCH PANEL
SWITCH
BATTERY
SEND NEG.
TANK SENDER
0-5 VOLT
CIRCUIT
BREAKER
No connection DC Negative
Signal input 1
Signal input 2 Signal input 3
Signal input 4
Signal input 5 Signal input 6
Signal inputs:
10-180 Ohm Sender
240-33 Ohm Sender
0-5v Sender
Negative (for switching purposes)
Positive (0-32v, for switching purposes )
NETWORK
NMEA 2000
SEND
POS. NEG.
10-180 or 240-33
TANK SENDER
BATTERY
-
+

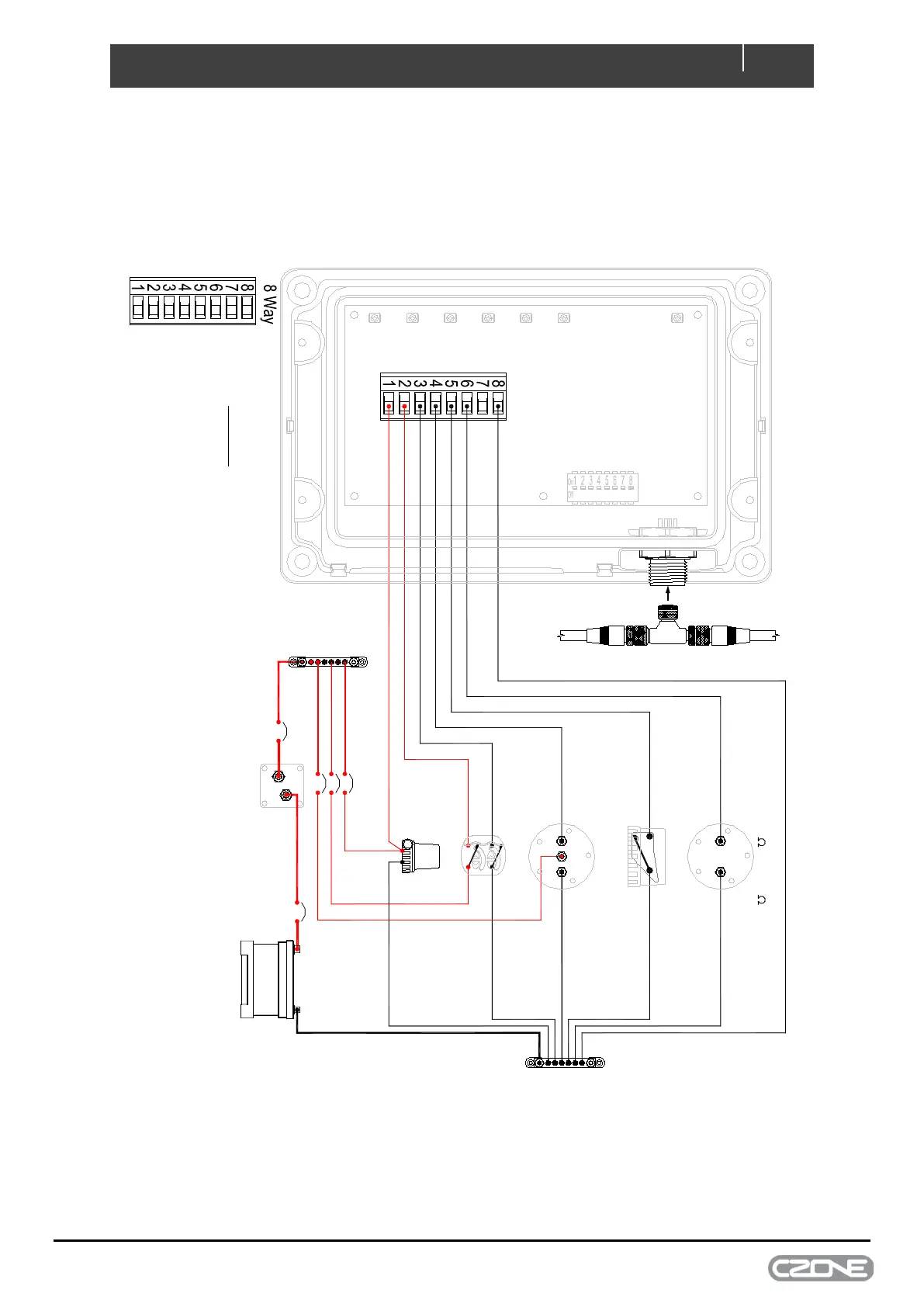

Figure 8. Wiring Diagram
