D.A.C.E Compact 300 User Manual

6

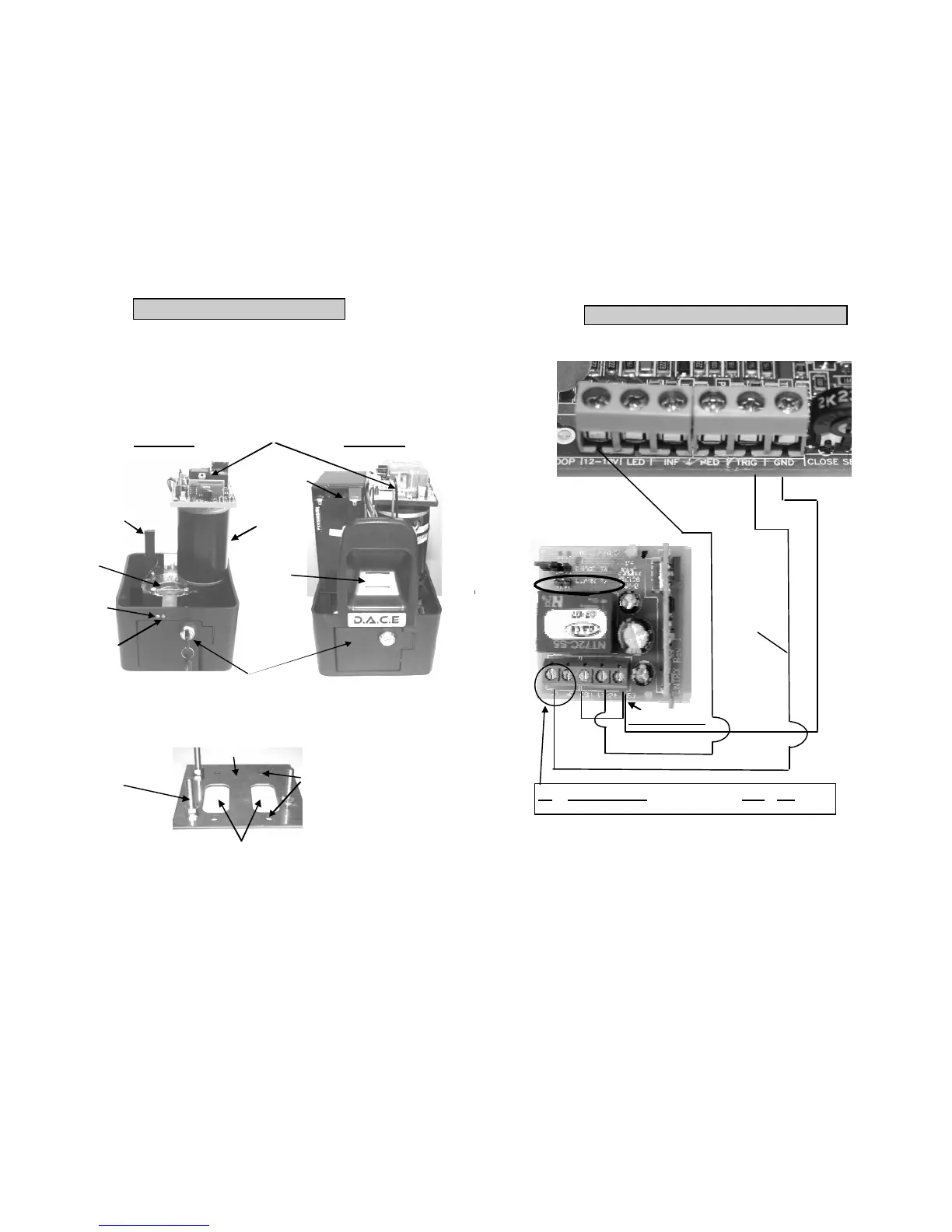

GENERAL MOTOR LAYOUT
Main P.C.Board
(Marker / magnetic sensor
Compact 500 ONLY) 12V D/C
Electric m otor
Charge L.E.D.
GREEN (Compact 500 only )
Low battery L.E.D.
RED (Compact 500 only)
Clear gearbox lid
Over-ride access door with lock
Foundation plate
Jack –up bolts and nuts used to
secure the motor to the foundation
plate
Holes in plate for conduit access
4 Holes for m ounting
the plate to the concrete
using coach screws
The pictures below show the Compact 500 and the Compact 300 m otors. The lids have been removed to show greater
detail. The Compact 500 and Com pact 300 share the same major com ponents. The differences are shown in the pictures.
The Compact 500 is shown with the battery removed. The foundation plate, base, gearbox, electric motor, battery ,
P.C.Board and the lid are all shared parts by both motors.
The Compact 500 and the Com pact 300 share the same foundation plate as shown here
Battery
L.C.D. screen
(Compact 300 only)
Compact 500 Compact 300
23
NB the normally open (NO) connector is wired to the TRIG or PED
connector on the Main P.C.Board
Receiver board
To program remotes to the receiver.
1. Press and hold the button on the remote.
2. Place the jum per over the two TX LEARN pins for 1 second.
3. Remove the j um per.
4. Release the button on the remote.
Repeat the above steps for each remote to be programmed.
Connect to
TRIG for full
opening or
connect to
PED for
pedestrian
opening
Bridge com and neg
CONNECTING AN EXTERNAL RECEIVER (OPTIONAL)
Main P.C.Board
