D.A.C.E Compact 300 User Manual

18
1m

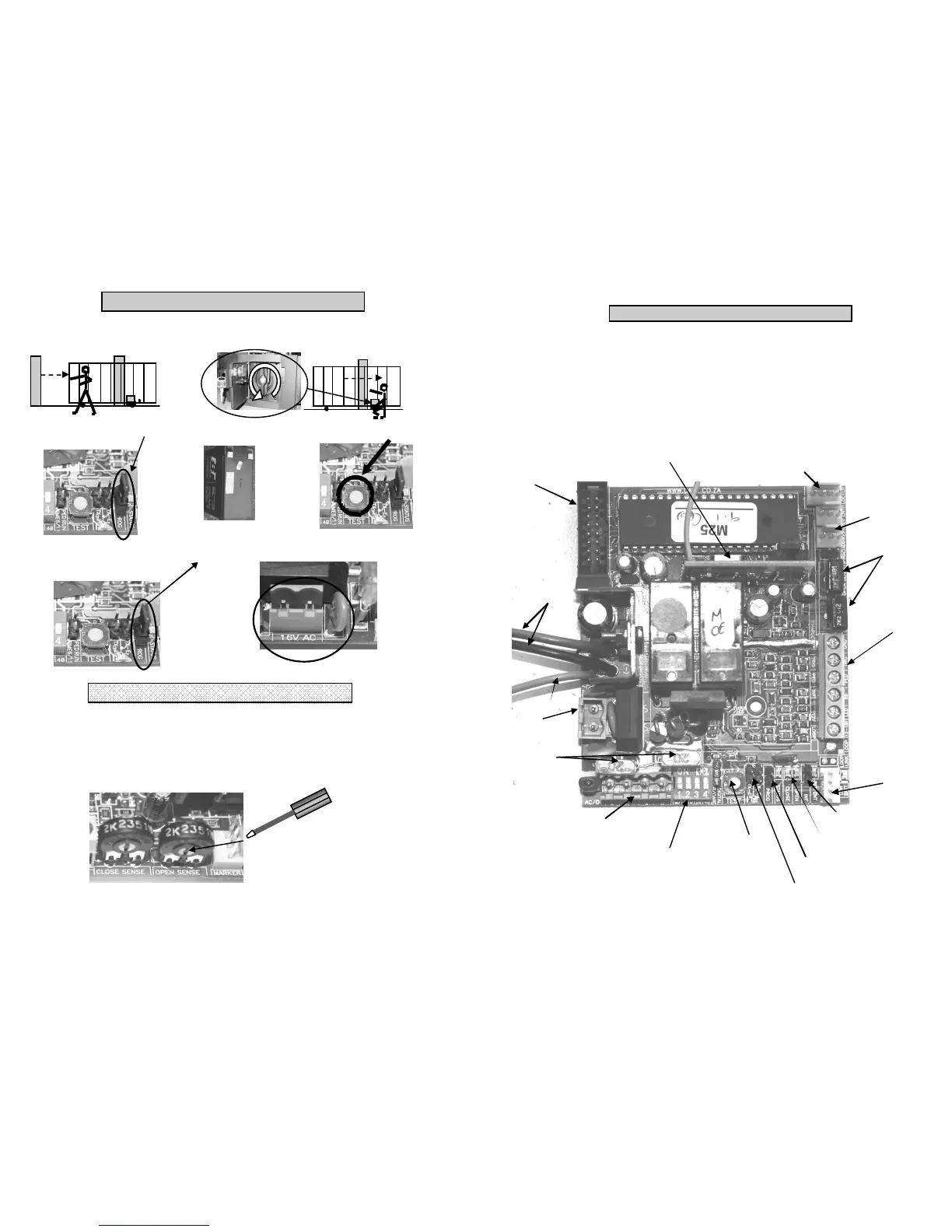

1. Open the gate manually 1m .—1.5m
2. While turning the thumb wheel anti clockwise, move the gate
slightly until a click is heard and the m otor locks into place
3. Place the jum per over the “PROG” pins 4. Apply battery power.
Do not reverse polarity
5. Press the test button once
8. Apply 16 volt AC power
7.When the m otor is fully open, remove the PROG jum per.
The motor is now fully programmed
Over-current is the amount of force that the m otor delivers before stopping when an object is struck.
The amount of force is controlled by the two potentiometers (pots) found on the main P.C.Board.
To increase the am ount of force turn the pots clockwise.
To decrease the amount of force turn the pots counter clockwise.
Set the current sensing pots according to the gates weight. Do not set them too high, as increasing the current sensing
may cause serious injury or damage in the case of the gate striking an object
Using a sm all flat screwdriver turn the
pots to increase or decrease the current
sensing of the motor
SETTING THE OVER-CURRENT
PROGRAMMING THE MOTOR
11
P.C.B OARD LAYOUT
The P.C. board is a sensitive piece of electronic equipm ent. All electronic equipment should be handled with care. Never
connect or remove wires on a P.C.Board while there is power on the board as this m ay lead to damage. Never touch the
board with any metal obj ect. Never allow the board to get water on or near it as this may lead to corrosion. No insecticide
or other sprays should be used on a P.C.Board. Do not attempt to repair the P.C.Board. Any repairs must be carried out by
an authorized agent.
Do not apply 220volts to the board. (16 volts AC and 12 volts DC only). Never reverse the polarity of the battery wires as
this will lead to extensive damage.
The charger circuit on the P.C.Board has a rectifier which converts AC voltage to DC voltage, this will generate som e
heat on the rectifier heat sink., care should be taken that no wires touch the heat sink as this may cause the plastic insula-
tion of the wire to melt and may lead to a short circuit.
L.E.D. extension connector
Marker connector
(Compact 500 only)
Current sensing pots
Auxiliary connectors
Infra red jumper
Program j um per
Open / close / status L.E.D.
Learn / erase remote jum pers
Test button
Dipswitches
Motor wire connectors
20 amp motor fuses
16 volt AC connector
from transformer
Earth wire
Green and y ellow
Battery wires
Red and black
Light / lock connector
L.C.D. connector
Receiver
