D.A.C.E DURASWING User Manual

30

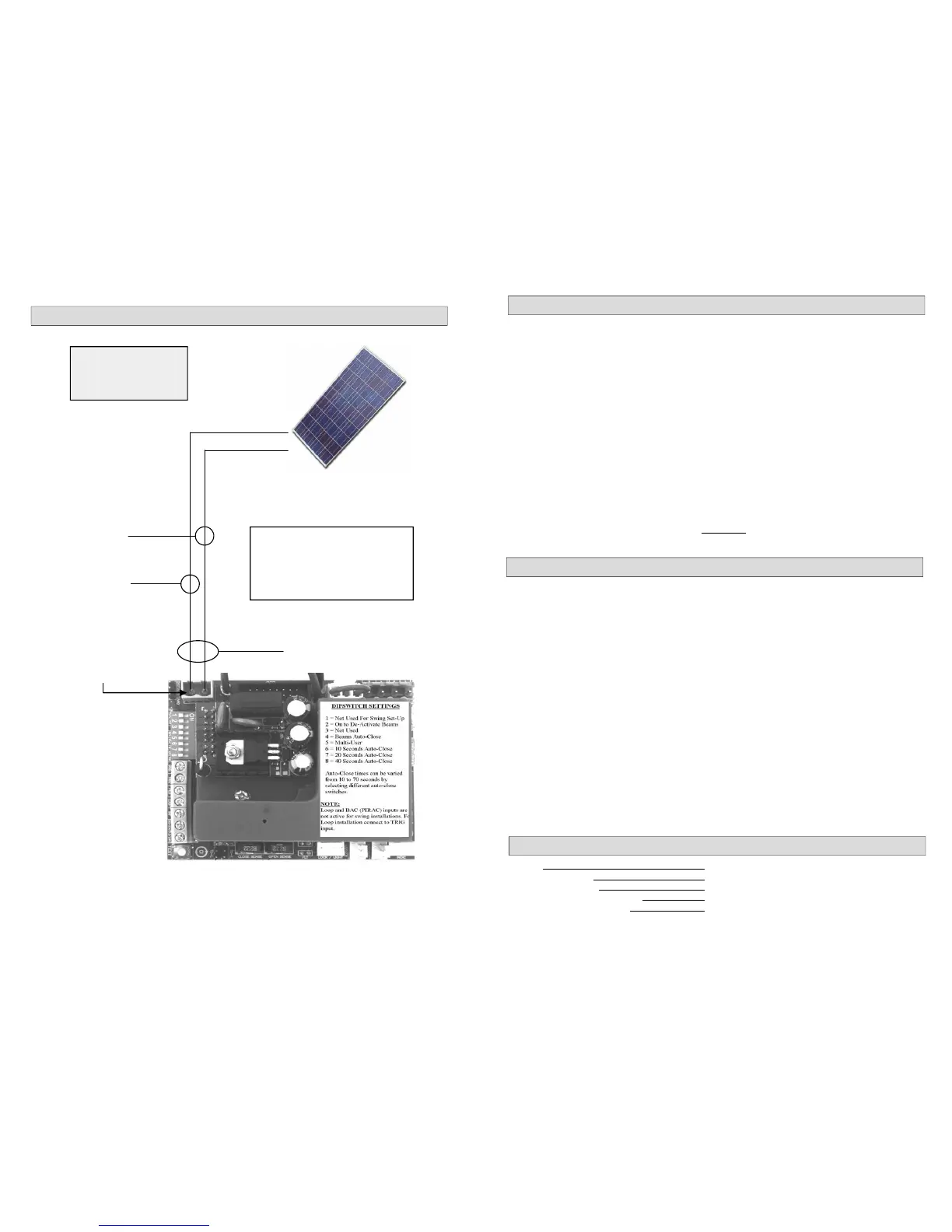

CONNECTING A SOLAR PANEL
16 VAC connector
from transformer
SOLAR PANEL
(min 20 Watts)
A REGULATOR IS NOT
REQUIRED WHEN
CONNECTING A SOLAR
PANEL
Negative wire
(-)
Positive wire
(+)
Connect the solar panel wires
to the 16 VAC plug on the
main PC Board.
(Wire polarity is not important)
Solar Panel Specifications:
• Min output voltage 16.5 VDC
• Max output voltage 21 VDC
(an output voltage below 16.5 VDC will
not charge the internal battery).
An external regulator is NOT required when connecting
a solar panel. Ensure that the panel does NOT exceed
the min and max specifications.
3
INTRODUCTION AND RECOMMENDATIONS
Congratulations on purchasing your DURASWING gate operators. D.A.C.E has proven to be a
leader in the automation field and strives to manufacture high quality products using the latest
technology available. D.A.C.E is constantly working on upgrading their products to bring you, the
customer, a product of the highest quality. Other products manufactured include:
• Slide gate operators - SOLO; CONDO; CONDO AC/DC; COMPACT 300 & 500
• Infrared beams - DuraOptics
• Remotes & receivers - DuraTronic
• Vehicle detection loop - DuraLoop
It is recommended that an experienced gate installer is used to install your gate operator. If you intend
to install this operator yourself, please read this manual carefully before any installation begins.
It is strongly recommended that DuraOptics safety beams are used on all installations, as this re-
duces the risk of the gate closing on a pedestrian or vehicle.
It is also recommended that a theft deterrent bracket is installed to deter any tampering with the opera-
tor.
NOTE : D.A.C.E. supplies an on-board receiver with every operator. D.A.C.E. cannot guarantee the
range of the receiver due to interference or obstacles in the path of the receiver. Should more range
be required, it is recommended that an external DuraTronic receiver be used.
This automatic gate operator is NOT a security device. It is designed to make access to a premises
undemanding.
SPECIFICATIONS
LEGAL REQUIREMENTS AND WARNINGS
Motors
12v/dc (battery operated with charging system)
Maximum gate size 2,5 m per leaf
Maximum gate mass 100 kg per leaf
Maximum number of operations 100 per day
Maximum operating degrees 110 ( recommended 90 degrees)
•
••
• It is recommended that your local E.C.A. (Electrical Contractors Association) is contacted
in order to obtain the legal wiring regulations pertaining to the area.
•
••
• Electrical Shock may occur while installing this equipment.
• Injury or death by electrocution may lead to law suits against the installer/homeowner.
• If you intend to run 230V directly from the Mains supply (house supply) to the
transformer, the wiring should be done by a qualified/registered electrician. This is a legal
requirement and failure to do so may lead to non-compliance of property or law suits
against the property owner in the event of an accident.
• It is a legal requirement to run all cabling in conduit. The power supply must be run in a
separate conduit to ANY other cables.
• Mains supply may only be run in a guarded cable. Under no circumstances may 230V be
run using Communication cable, Ripcord or Cabtyre.
• D.A.C.E will not be held liable for any accident / incident resulting in damage, injury or
death ensuing from the installation of the automatic gate operator.
• Although the DURASWING operators have built-in collision sensing, substantial damage
may still occur. For this reason safety beams should be used on all installations.
• Do not allow children to play near or with any gate, gate operator or remote control.
• It is the responsibility of the installer to ensure that the gate is in good working condition
before automating the gate.
• This D.A.C.E. operator is supplied with a 16 VAC transformer. This transformer should
be plugged into a normal plug socket. DO NOT open the transformer.
