GENERAL OPERATOR LAYOUT
• Inward swing gates use the long crank arm and the short conrod.
• Outward swing gates use the short crank arm and the long conrod.
Do not tighten the
crank arm until the
closed direction has
been established.
See setting the limit
switches
DuraSwing operator
Crank Arm
Ball joint
Conrod adjuster
Conrod
Gate bracket
Pedestal
Hole for padlock

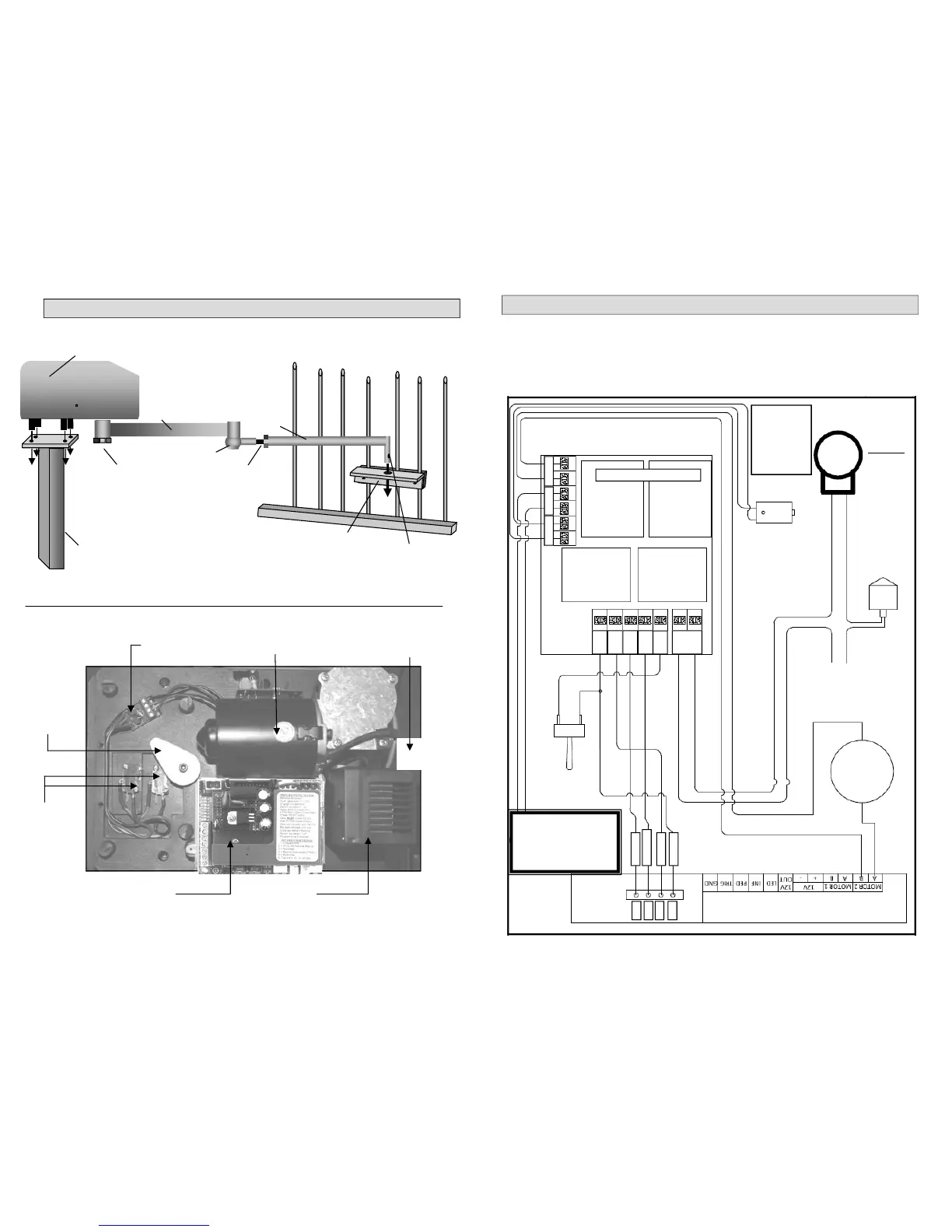

Diagram showing the top view of the operator with the lid and battery removed.
Limit
switches
Limit
switch rotor
Transformer
Main PC Board
Electric motor Cable Conduit access Limit switch diodes
Diagram showing the general layout for a pedestal mount type installation.
27
CONNECTING A MAG LOCK/LIGHT RELAY BOARD - (DOUBLE SWING ONLY SA041)
A magnetic lock can be set up on a double swing gate to provide extra security. Check the manufac-
turers specifications before installing a magnetic lock. In order for the magnetic lock to operate on the
DuraSwing gate motor, a D.A.C.E Mag Lock Card (SA141) must be connected to the main PC Board.
The Mag Lock card will delay the opening of one leaf of the gate for 2 seconds. The power supply to
the Mag Lock must not be taken from the motor battery or the PC Board as this will result in a flat
battery or malfunction of the PC Board. The Mag Lock Card can also turn pillar lights on when a trig-
ger is received. Pillar lights should only be connected by a registered electrician.
STOCK CODE: SA141
RELAY
RELAY
RELAY
RELAY
MAGNETIC
LOCK
NOTE: THIS
LOCK
FEATURE IS
NOT ACTIVE
WITH SLIDE
GATE
DANGER:
HIGH
VOLTAGE
Day light
switch
(optional)
230V
Supply
LIGHT
MASTER
MOTOR
TOGGLE
SWITCH
(optional)
IMPORTANT:
Use separate power
supply.
WHITE
PURPLE
BLACK
RED
LIT
LOC
(-)
(+)
MOTOR
12v+GND
-LOCK+
MAG LOCK-LIGHT BOARD
+12v
(red)
GND
(black
LIGHT (white)
LOCK
(purpl
Toggle
LIGHT
OUT
MAIN PC CONNECTOR BLOCK
