10BASE-T Ethernet Mini Hubs User’s Guide
Installation 9

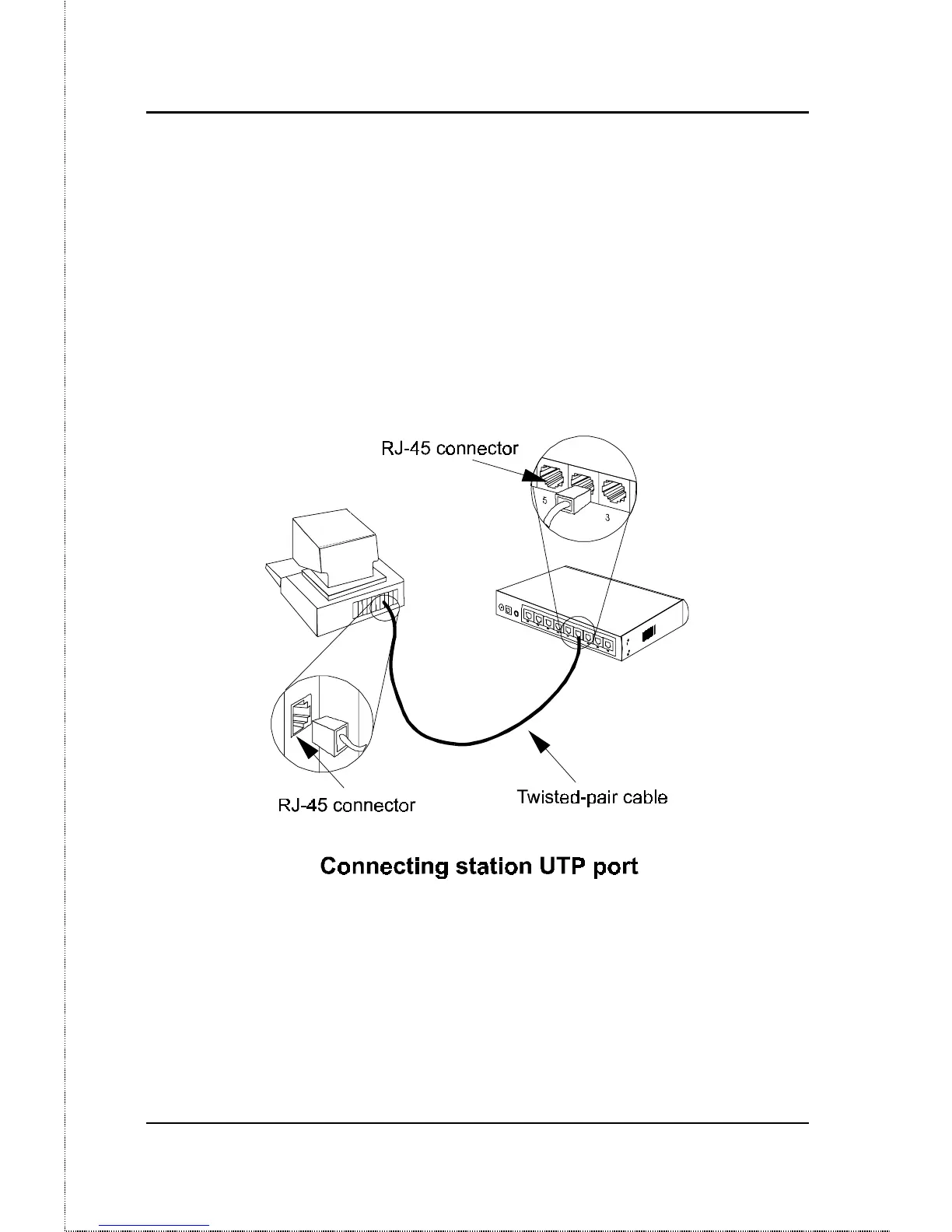

Note that, for Mini Hub model DE-809TP, UTP port labeled “9”
must be in the
Normal
position in order to be connectable to a
station, bridge or router. To connect this port to a UTP port of a
10BASE-T hub, the port must be in the
Uplink
position (see section
Cascading Hubs Through UTP Cable in this chapter for details).
The button to the right of the UTP port labeled “9” is used to switch
between the
Normal
and the
Uplink
position.
