D-Link DAP-2020 User Manual

DAP-2020
5
ENGLISH

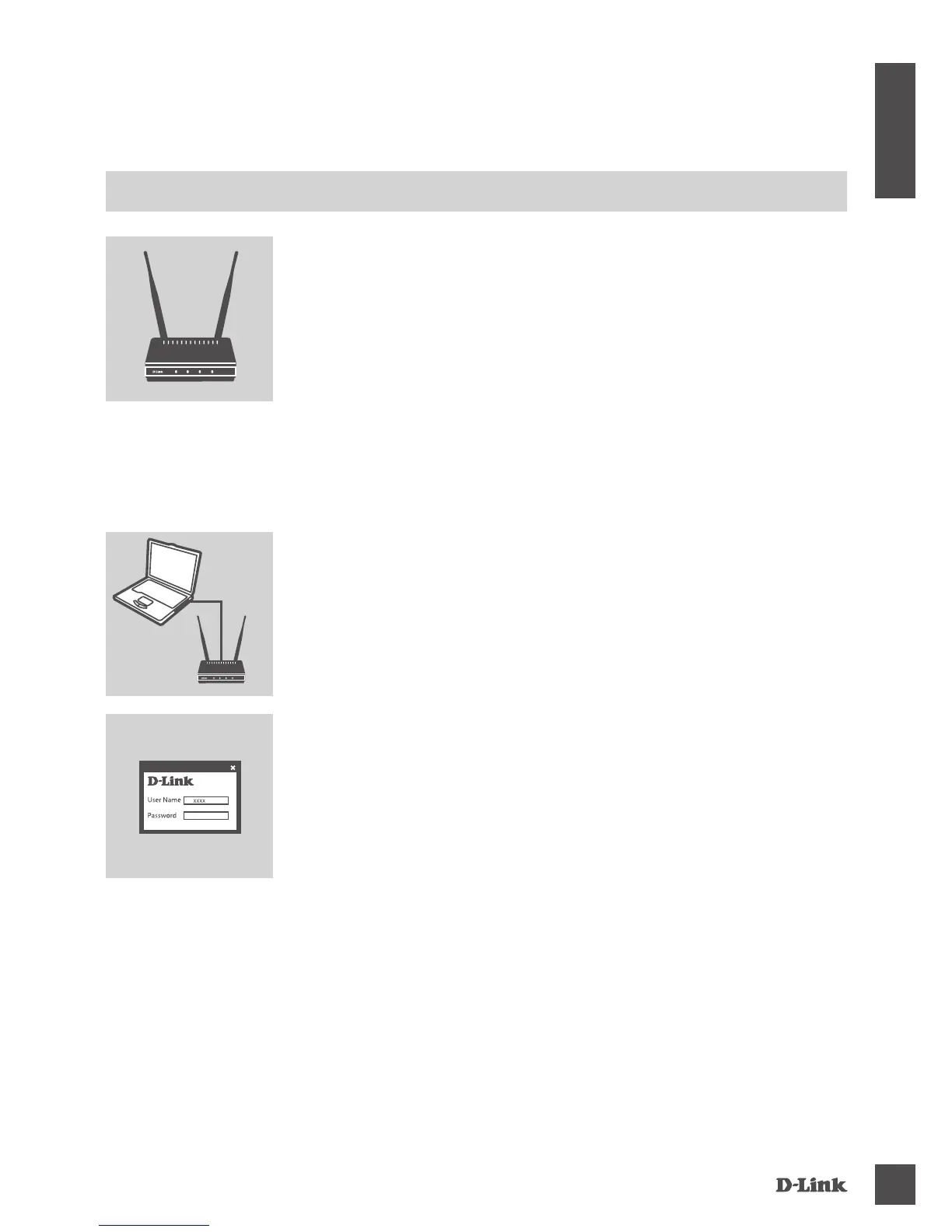

PRODUCT
SETUP
EASY SETUP
CONNECT THE ETHERNET CABLE
Connect one end of the Ethernet cable to the LAN port on the
back panel of the DAP-2020, and the other end of this cable to
your computer’s Ethernet port. If your computer is connected to
an Ethernet network via an Ethernet switch, connect this end of
the cable to the switch’s port.
CONFIGURE THE DAP-2020
Open a web browser and go to http://dlinkap. Enter admin as
the User name, and leave the Password blank. Now you can
use the Setup Wizard to congure your DAP-2020.
(The setup wizard only support Access Point/Wireless Client/
Repeater mode, please refer user manual to congure your
DAP-2020 for different operation mode)
CONNECT THE POWER ADAPTER AND ANTENNAS
Check the AC voltage of your AC power outlet against the AC power
input of the power adapter. Connect the power adapter supplied with
the DAP-2020 to the power socket on the back of this device rst,
then plug it to your AC power outlet. Check to see that the Power
LED on the front panel of the DAP-2020 is turned ON. Connect both
antennas to the antenna connectors on the back of the DAP-2020.
WARNING! The DAP-2020’s power output is 12 volts DC, 0.5
Ampere. Use only the power adapter supplied with this DAP-2020 or
one with the same power specications. Using a power adapter with
a different voltage or plugging your DAP-2020 to a wrong AC voltage
outlet will damage this device and will void the warranty for this
product.
Login

D-Link DAP-2020 Specifications

General

5 GHz	No
2.4 GHz	Yes
Modulation	CCK, DBPSK, DQPSK, OFDM
Frequency band	2.4 - 2.4835 GHz
Networking standards	IEEE 802.3i, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	300 Mbit/s
Placement	-
Certification	Wi-Fi, CE
Product color	White
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA, WPA2
Antennas quantity	2
Input current	0.5 A
AC input voltage	12 V
Power consumption (max)	2.25 W
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	113 mm
Width	147.5 mm
Height	31.5 mm
Weight	224.7 g
