D-Link DAP-2230 Manual To Install The Firmware

- 3 -
If your DAP is build-in and you cant’t press the Reset button easily you
can reset it over the setup instead.

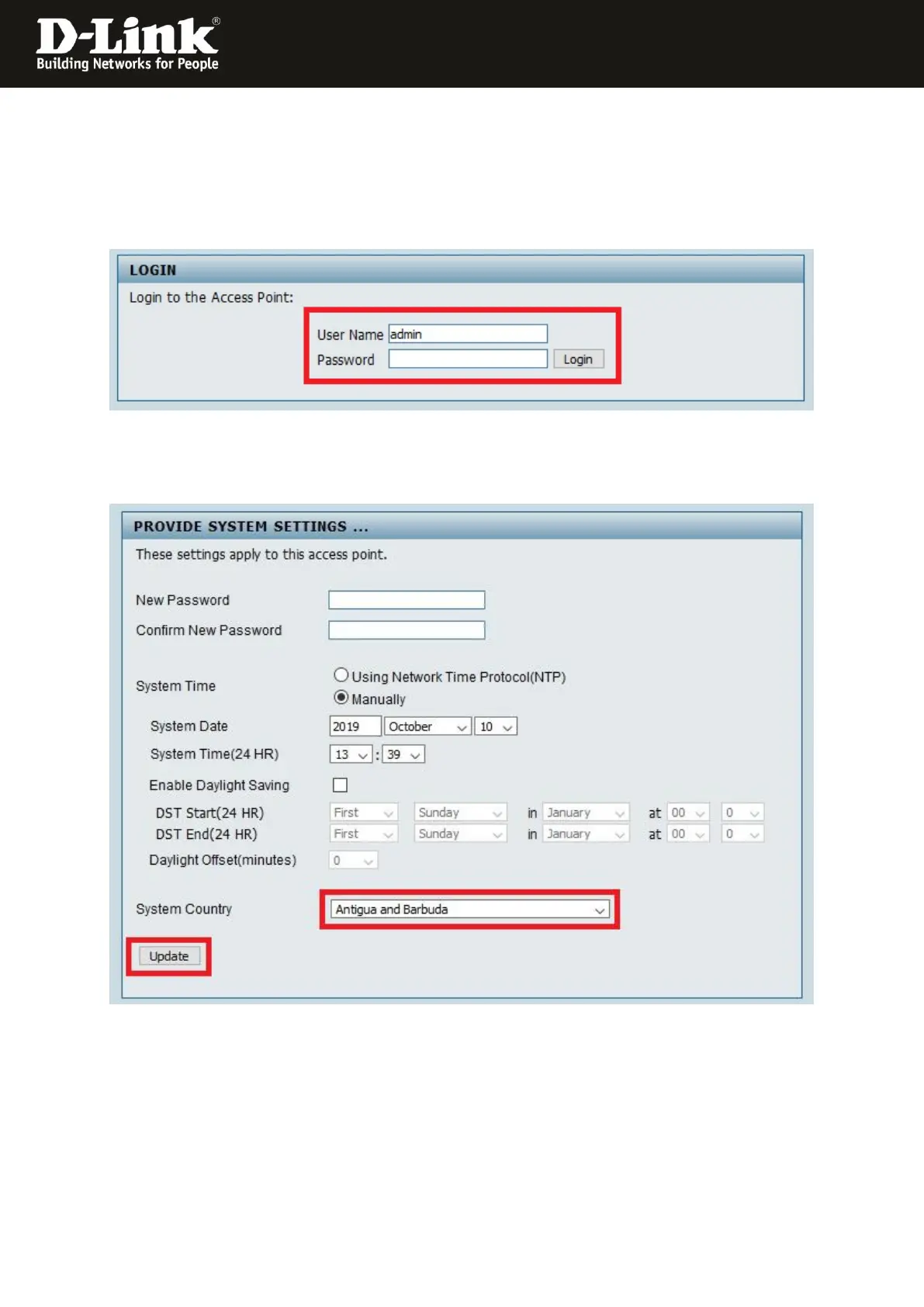

7. Log-in into the setup again.
At User name enter admin and then click onto Login.
Did you set an Admin-Password please enter it.
8. At System Country choose any country and click onto Update.

D-Link DAP-2230 Specifications

General

Frequency Band	2.4 GHz
Maximum Data Rate	300 Mbps
Wireless Standards	IEEE 802.11n
Ethernet Ports	1 x 10/100 Ethernet
PoE Support	Yes (802.3af)
Operating Modes	Access Point, WDS, Client
Wireless Security	WEP, WPA/WPA2-Personal, WPA/WPA2-Enterprise
Power Supply	12V DC or PoE
