D-Link DAP-2360 Command Line Interface Reference Manual

AirPremier N Dual Band PoE Access Point Command Line Interface Manual
7

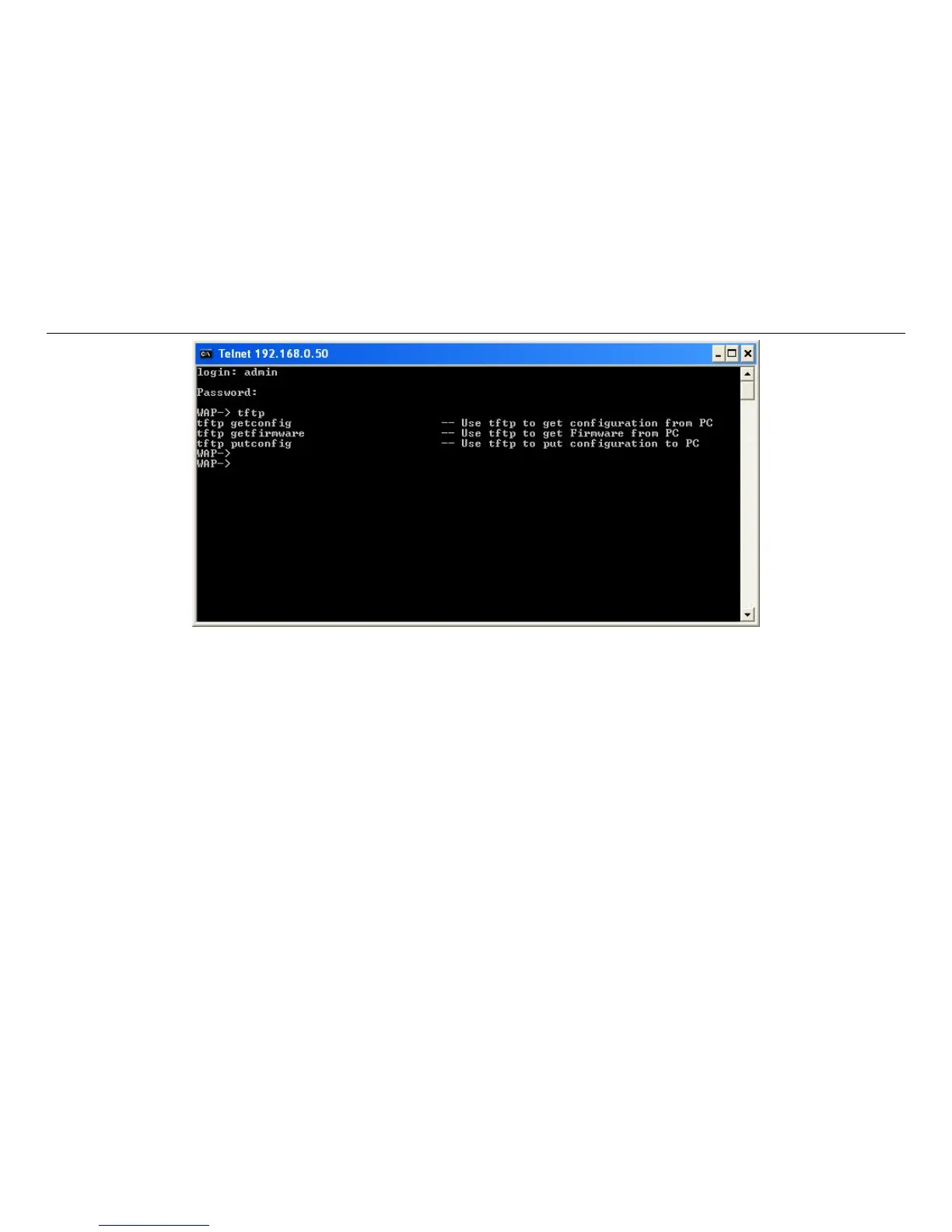

This screen displays all the possible command completions for tftp.
When you enter a command without a variable or value that needs to be specified, the CLI will prompt you with further information about what is needed to complete the
command. For example, if snmp delcomm was entered, the following screen opens:

D-Link DAP-2360 Specifications

General

Frequency band	2.4 - 2.4835 GHz
Cabling technology	10/100Base-T(X)
Ethernet LAN data rates	10, 100 Mbit/s
Maximum data transfer rate	150 Mbit/s
Quality of Service (QoS) support	Yes
Networking features	Fast Ethernet
Wireless technology	802.11b/g/n
Compliance industry standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Antenna gain level (max)	5 dBi
Internal	No
Certification	FCC, UL 2043
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Security algorithms	128-bit WEP, 64-bit WEP, SSH, SSID, WPA, WPA2
Storage temperature (T-T)	-20 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Power supply type	AC/DC
Power consumption (typical)	9 W
Package depth	272 mm
Package width	204 mm
Package height	114 mm
Package weight	1306 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1843 mm
Pallet gross weight (air)	323840 g
Quantity per pallet (air)	210 pc(s)
Shipping (inner) case width	294 mm
Shipping (inner) case height	244 mm
Shipping (inner) case length	600 mm
Shipping (inner) case weight	7270 g
Shipping (inner) case net weight	4500 g
Number of cartons per pallet (air)	42 pc(s)
Quantity per shipping (inner) case	5 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	166 mm
Width	188 mm
Height	36 mm
Weight	689 g
Dimensions (WxDxH)	166 x 37 x 188 mm
