D-Link DAP-3711 Quick Installation Guide

Quick Installation Guide
1
ENGLISH
Hardware Overview
LED Indicators

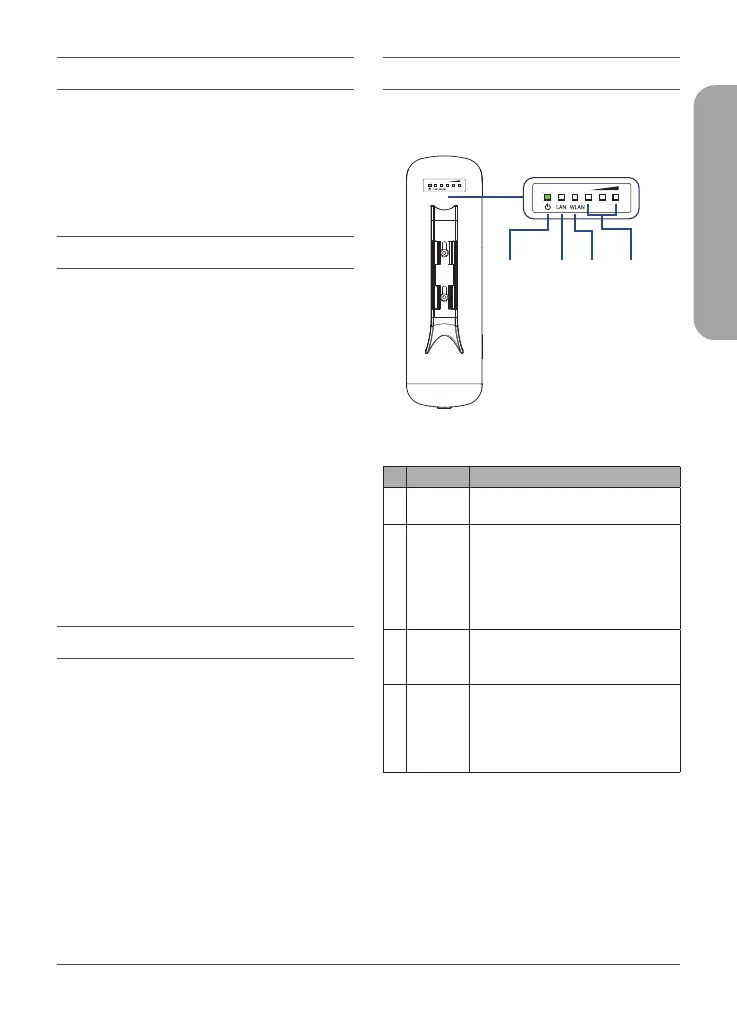

Figure 1: DAP-3711 LEDs
# LED Description
1 Power
Power indicator. Green light indicates
the power is on.
2 LAN
Network connection light. A steady
green light indicates the LAN port of
the PoE power supply is connected
to a network device. A flashing
green light indicates data is being
transmitted.
3 WLAN
Wireless indicator. Lights up to
indicate wireless activation. Flashes
when data is being transmitted.
4
Signal
Strength
Signal strength indicator. A red light
indicates a weak signal. Red and
yellow together indicates a medium
signal. Yellow, red and green together
indicates a strong signal.
Table 1: LED Descriptions
Before You Begin
This installation guide provides basic instructions
for installing the DAP-3711 on your network. For
additional information about how to use the
access point, please see the User Manual from
the D-Link support website.
Package Contents
This DAP-3711 should include the following
items:
• 5km Long Range 802.11ac Wireless Bridge
• PoE injector
• Power cord
• Mounting ties
• Quick Start Guide
If any of the above items are damaged or
missing, please contact your local D-Link reseller.
Note: Using a power supply with a different
voltage than the one recommended for the
device will cause damage and void the warranty
for this product.
System Requirements
• Microsoft Windows®, or a Linux-based
operating system
• An available Ethernet port
• Microsoft Edge, Firefox 60.0, or Chrome
68.0.3440.106
1 2 3 4

D-Link DAP-3711 Specifications

General

5 GHz	Yes
2.4 GHz	-
Bandwidth	0.08 GHz
Frequency band	5.745 - 5.825 GHz
Channels quantity	2 channels
Fit AP mode features	Wireless distribution system (WDS)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n
Maximum outdoor range	5000 m
Ethernet LAN data rates	100, 1000 Mbit/s
Transmitting power (CE)	27 dBm
Maximum data transfer rate	867 Mbit/s
Security algorithms	128-bit AES
Service Set Identifier (SSID) features	SSID broadcast
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	2
AC input voltage	24 V
Power consumption (typical)	15 W
Placement	Pole
Certification	CE, FCC
Product color	White
LED indicators	LAN, Power, Signal strength, WLAN
Housing material	Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code	IP66
Antenna type	Internal
Antenna gain level (max)	15 dBi
Storage temperature (T-T)	-40 - 85 °C
Operating temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	0 - 90 %
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	45 mm
Width	288 mm
Height	88 mm
Weight	600 g
