Quick Installation Guide
ENGLISH
Cable Requirements
Use a CAT 5 cable with an even sheath. The
Ethernet ports on the DAP-3711 access point
cannot accept a CAT 5 cable that has an uneven
sheath; the RJ-45 connector on the cable will
not fit properly into the receptacle on the
access point.
Conguring the Access Point
To set up and manage the DAP-3711, use one
of the following methods.
Connecting Through a Computer
1. Use an Ethernet cable to connect the
DAP-3711 to the management computer.
2. Ensure the computer is configured with a
static IP address in the 192.168.0.2/255
subnet.
3. Launch a web browser. Enter 192.168.0.50
in the address field of your browser.
4. Log in to the administration user interface.
The default login information is:
Username: admin
Password: admin

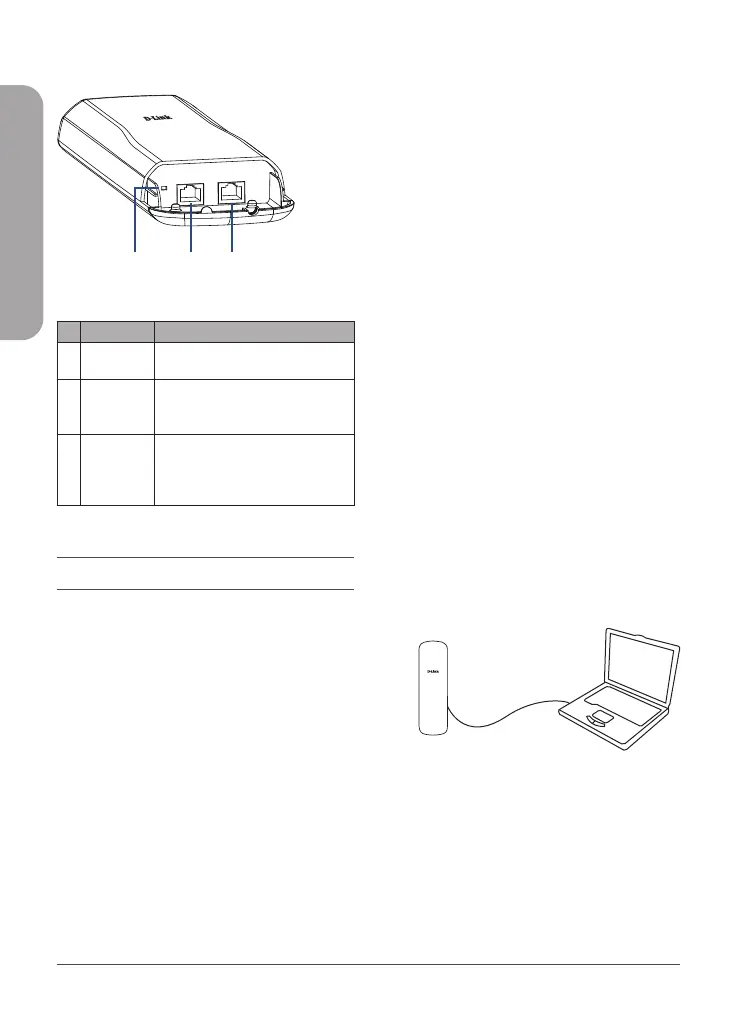

Figure 3: Direct Connection
Interface Connectors
Figure 2: DAP-3711 Interface
# Feature Description
1
Reset
Button
Resets the device to its factory
settings.
2 LAN Port
Uses a standard Ethernet cable
to connect to devices such as
computers and switches.
3 PoE Port
Uses a standard Ethernet cable to
connect the device to a PoE power
source such as a PoE switch or PoE
injector.
Table 2: Interface Descriptions
Hardware Installation
Powering the Access Point
To power the DAP-3711, use a standard Ethernet
cable to connect the PoE port on the DAP-3711
to a PoE power source device such as a PoE
switch or the included PoE injector.
DAP-3711
Computer
1
2
3
To Next Page
