DAP-400P Quick Installation Guide
Mesh Network Subordinate Device (Slave)

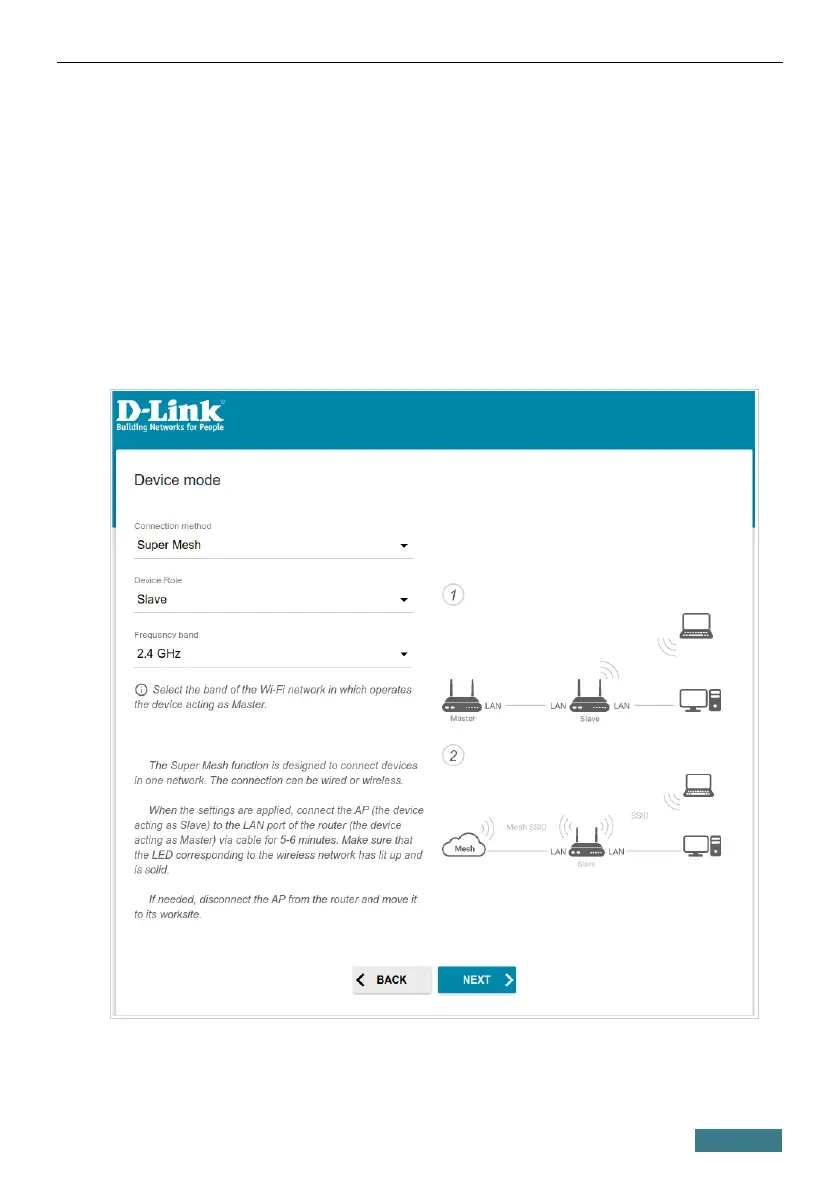

In order to configure DAP-400P as a subordinate device of your Mesh
network, from the Connection method list, select the Super Mesh value.
Then from the Device Role list, select the Slave value. From the
Frequency band list, select the band where your main device (in the Master
role) operates.
Then a device in the Slave role is configured in the assess point mode. In this
mode you can change the LAN IP address, set your own settings for the
wireless network in the 2.4GHz and 5GHz bands, and set your own password
for access to the web-based interface of the device.
26
