D-Link DCS-2230 Quick Installation Guide

D-Link DCS-2210/DCS-2230 Quick Install Guide
3
Hardware Overview
Hardware Overview
ENGLISH
Status LED
Indicates the camera's
current status
PIR
Passive Infrared
sensor for
motion detect
ICR Sensor
The IR-Cut Removable sensor
judges lighting conditions and
switches from color to infrared
accordingly
Infrared LED
Used to illuminate the camera's
eld of view at night
Microphone
Records audio from the
surrounding area
WPS LED
(DCS-2230 only)
WPS status
indicator LED
Speaker
Audio output
Camera Lens
Records video of the
surrounding area
Adjustment Ring
Tighten or loosen the
adjustment ring to adjust
the camera's position
Base Holes
Can be used with cable ties to
attach camera to a surface
Reset
Press and hold this button
for 10 seconds to reset
the camera
Ethernet
RJ45 connector for Ethernet
(DCS-2210 support PoE
which can also be used to
power the camera)
WPS button(DCS-2230 only)
Press this button, then press
the WPS button on your
router to set up a wireless
connection automatically
Power Connector
Connects to the included DC
5 V power adapter
I/O Connector
I/O connectors for
external devices

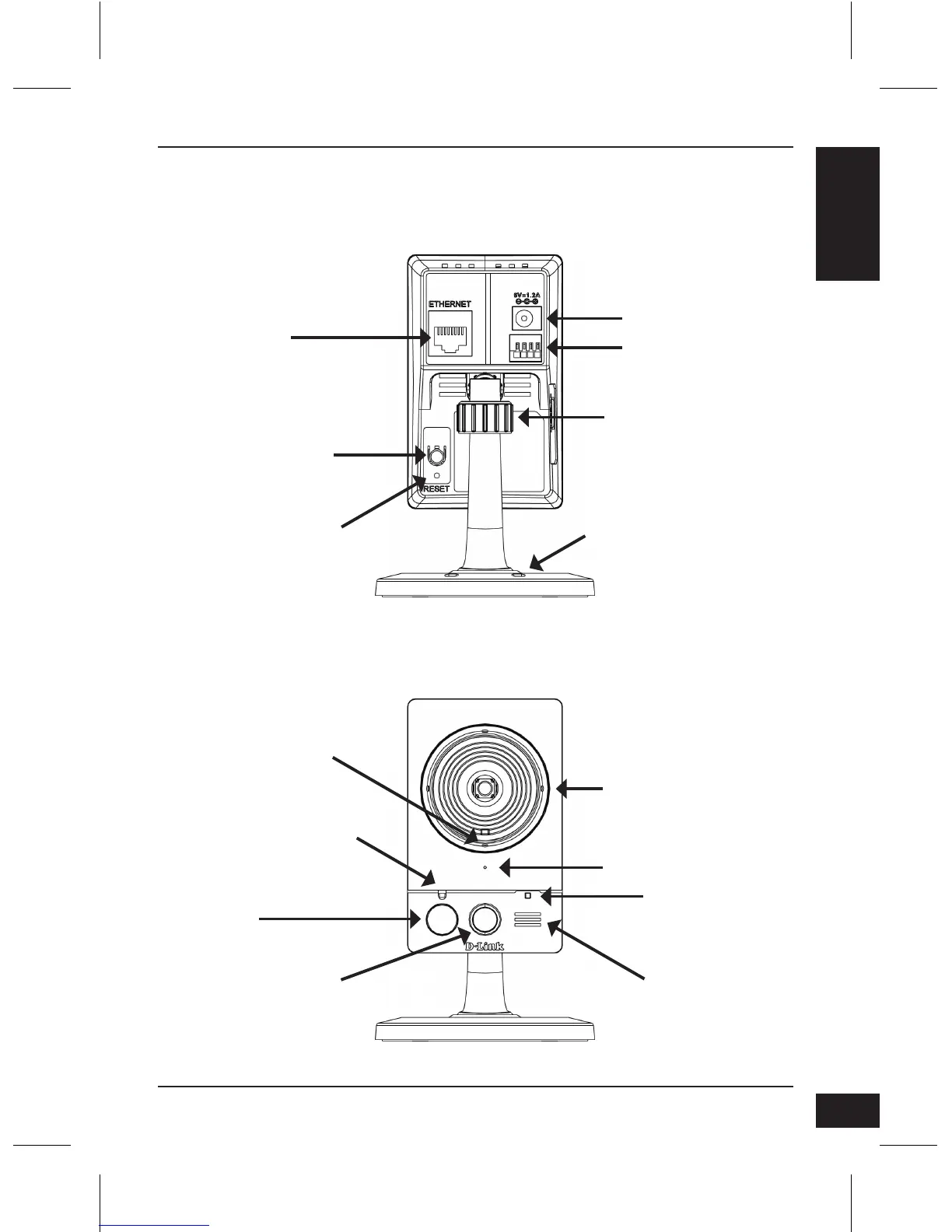

2. Hardware Overview
Rear Panel
Front Panel
