D-Link DCS-4602EV

D-Link DCS-4602EV Quick Installation Guide
10
ENGLISH

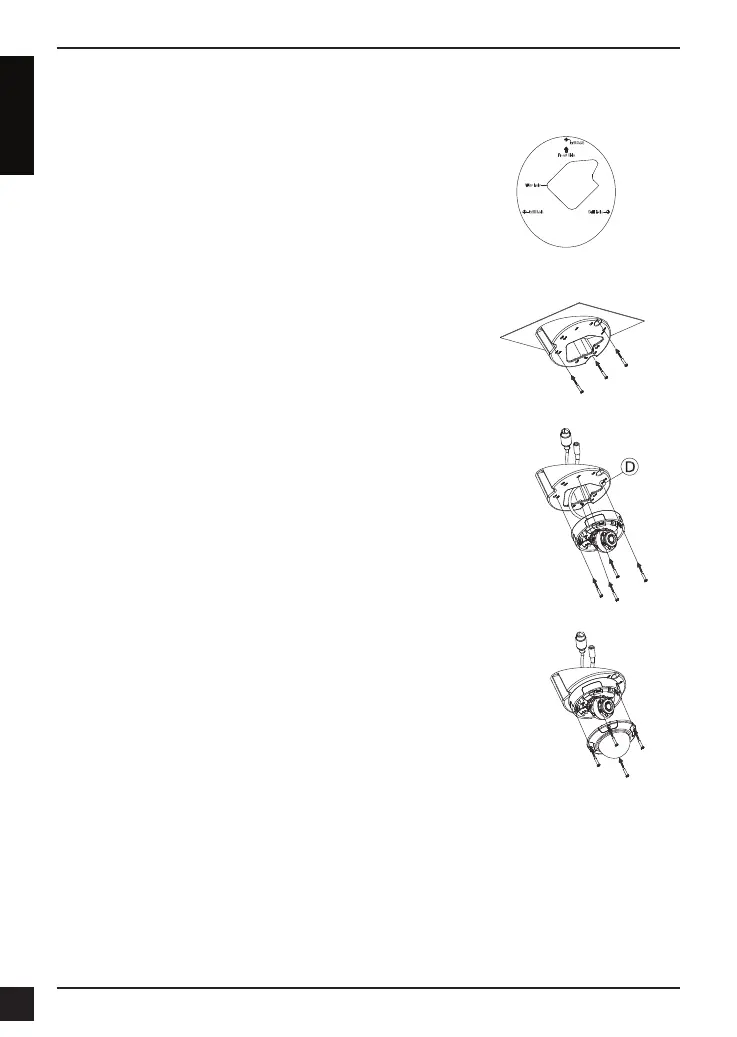

Using the DCS-37-3 Mount (optional)
Use the provided screws to mount the DCS-37-3 to the
ceiling using the inner mounting holes.
Place the DCS-37-3 mounting sticker in the desired
location, then use a 6 mm drill bit to drill the required holes
25 mm deep and insert the wall anchors into the holes. If
you plan to pass cables through the ceiling, you will also
need to drill a hole for the cable channel.
Note: The camera in the corresponding graphics may be
different from your product, but the procedure is the same.
Remove the cover from the camera.
Guide the camera connectors through the bottom cable
channel on the DCS-37-3. Use the provided screws
to mount the camera to the DCS-37-3 using the set of
mounting holes marked D.
Remove the cover and adjust the angle and rotation of
the camera as desired, then put the cover back in place.
Screw the camera cover back in place.
Make sure the rubber stopper is in the side cable channel
to seal it.
