D-Link DCS-5220 Quick Install Guide

4D-Link DCS-5220 Quick Install Guide

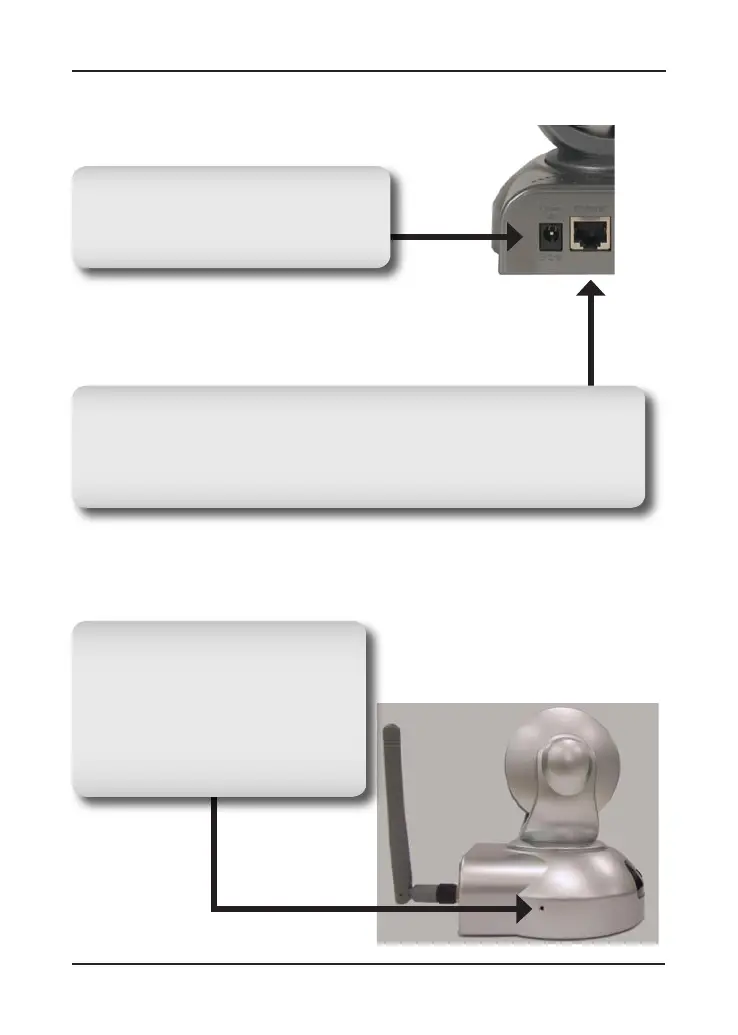

Hardware Overview
Ethernet Cable Connector
The DCS-5220 features a RJ-45 connector for connections to 10Base-T
Ethernet cabling or 100Base-TX Fast Ethernet cabling. The port supports the
NWay protocol, allowing the DCS-5220 to automatically detect or negotiate the
transmission speed of the network.
Reset Button
When the reset button is pressed, the
power and activity LED light will both
appear steady on. While pressing the
reset button both LEDs will begin to
ash, indicating that the DCS-5220’s
settings are now restored to factory
default. Release the reset button.
DC Power Connector
The DC Power input connector is labeled
DC 12V with a single jack socket to supply
power to the DCS-5220.

D-Link DCS-5220 Specifications

Operating Environment

operating temperature	0˚ to 40˚C (32˚- 104˚F)
storage temperature	-40˚ to 70˚C (-14˚ - 158˚F)
humidity	Max. 95% RH

Power

external power supply	12V DC 1.5A
power consumption	4.8 Watts

Camera Specifications

cmos sensor	1/4”
minimum illumination	0.5 Lux @ F2.0
viewing angle horizontal	270º
viewing angle vertical	90º

Video and Audio

video resolution at 160x120	Up to 30fps
video resolution at 176x144	Up to 30fps
video resolution at 320x240	Up to 30fps
video resolution at 640x480	Up to 30fps
audio bitrate AAC	16kbps~128kbps
audio bitrate GSM-AMR	4.75kbps~12.2kbps

Weight and Dimensions

width	4.1”
height	4.4”
depth	4.3”
item weight	0.7 lbs
packaging weight	2.9 lbs
