D-Link Technical Support – How to connect the DCS-942L wirelessly. Page 4 of 8

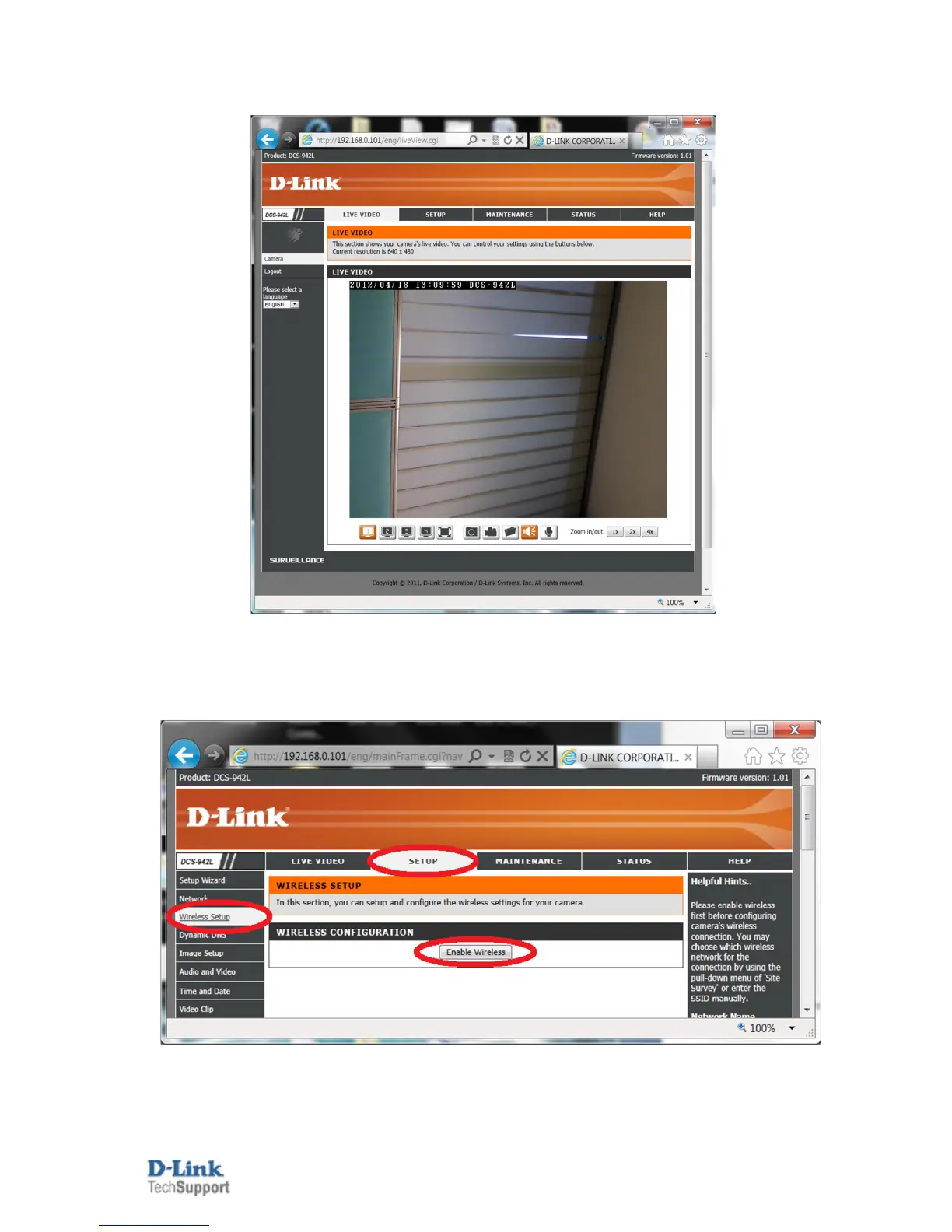

4. When you have successfully accessed the DCS-942L Web Configuration you will see a similar illustration
on your Internet Browser as the below illustration:
NOTE: Your Live Video results may differ.
5. Click on the Setup menu, followed by clicking on the Wireless Setup heading, then click the Enable
Wireless button:

D-Link DCS-942L Specifications

General

Total megapixels	0.3 MP
Maximum resolution	640 x 480 pixels
Supported video modes	-
Video formats supported	H.264, M-JPEG, MPEG4
Power LED	Yes
Networking features	Ethernet, Fast Ethernet, 802.11b/g/n WLAN
Still image resolution(s)	640 x 480
Sensor type	CMOS
Optical sensor size	1/5 \
Optical zoom	- x
Focal length range	0 - 3.15 mm
White balance	Auto
Camera shutter type	Electronic
Minimum illumination	1 lx
Form factor	Cube
Product color	White
Certification	FCC B, IC, C-Tick, CE
Placement supported	Indoor
Connectivity technology	Wireless
Ethernet LAN (RJ-45) ports	1
Windows operating systems supported	Windows 7 Home Premium, Windows Vista Home Premium, Windows XP Home
AC input voltage	100-240 V
DC output current	1.2 A
DC output voltage	+5V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	No
Power consumption (typical)	5.5 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %
LED type	IR
Night vision distance	5 m
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Supported network protocols	IPV4, ARP, TCP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (DynDNS & D-Link) SMTP Client, FTP Client, HTTP Server, PPPoE, UPnP, LLTD
Security algorithms	WEP, WPA, WPA2
Flash memory	16 MB
Internal memory	128 MB

Weight and Dimensions

Depth	60 mm
Width	34.85 mm
Height	96 mm
Weight	78.1 g
