Section 2 - Installation

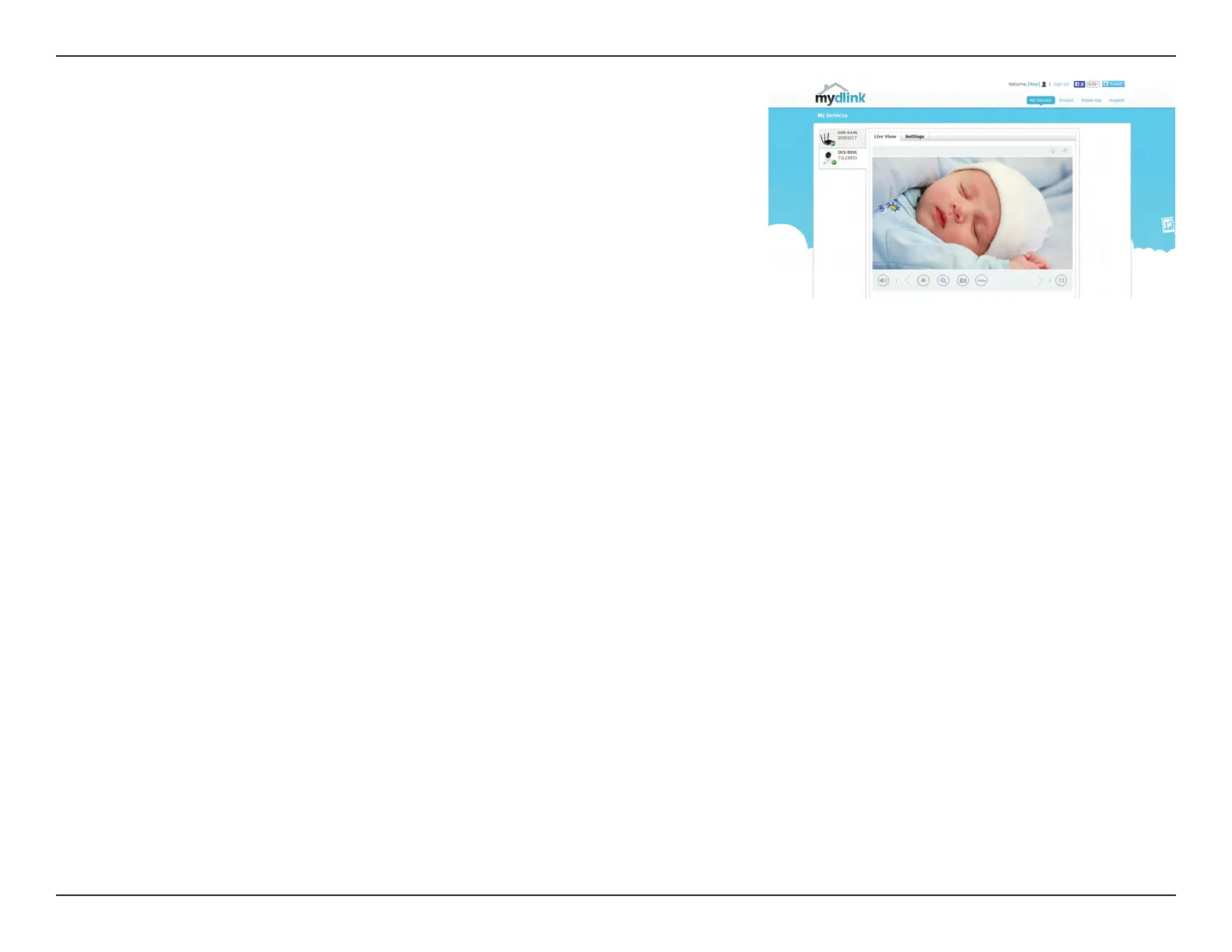

Zero Conguration will navigate to the mydlink Live View tab for your camera
where you will see a screen similar to the following.
Your camera is now set up, and you can skip to mydlink on page 18 to learn
more about the mydlink features of this camera, or to Conguration on
page 19 for advanced conguration of your camera.
Note: If you see a white haze when viewing in night vision mode, the
night vision light on the camera may be reecting o a nearby surface. Try
repositioning and aiming the camera.

D-Link DCS-960L Specifications

General

Type	IP security camera
Day/night mode	Yes
Placement supported	Indoor
Connectivity technology	Wireless
Form factor	Cube
Mounting type	Desk
Product color	Black
Minimum illumination	0 lx
Field of view (FOV) angle	180 °
Total megapixels	1 MP
Maximum resolution	1280 x 720 pixels
Supported video modes	720p
Video formats supported	H.264, M-JPEG
Supported graphics resolutions	320 x 240, 640 x 360, 640 x 480 (VGA), 720 x 480, 800 x 600 (SVGA), 1280 x 720 (HD 720)
Built-in HDD	No
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB
LED type	IR
Night vision distance	4.8 m
Detection distance	0.5 m
Security algorithms	WEP, WPA, WPA2, WPS
DC output voltage	5
Power over Ethernet (PoE)	-
Power consumption (typical)	4.8 W
Frequency band	2.4/5 GHz
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 4 (802.11n)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi data rate (max)	433 Mbit/s
Audio formats supported	G.711
Sensor type	CMOS
Optical sensor size	1/2.7 \
Interface	WLAN
Number of cameras	1
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Width	95.8 mm
Height	137.5 mm
Weight	165 g
