D-Link DES-1008D User Manual

10/100 Dual-Speed Switch User’s Guide
Connecting The Switch
21
Category 5 or better UTP/STP. The PC can be connected to any of
the eight ports (labeled 1x - 8x). The power to the switch and the
PC can be ON while the connection is being made. Once connected,
the NWay feature discussed in Chapter 1 will automatically
configure the connection for optimal performance. These settings
are displayed on the LED indicators on the front panel of the
switch.

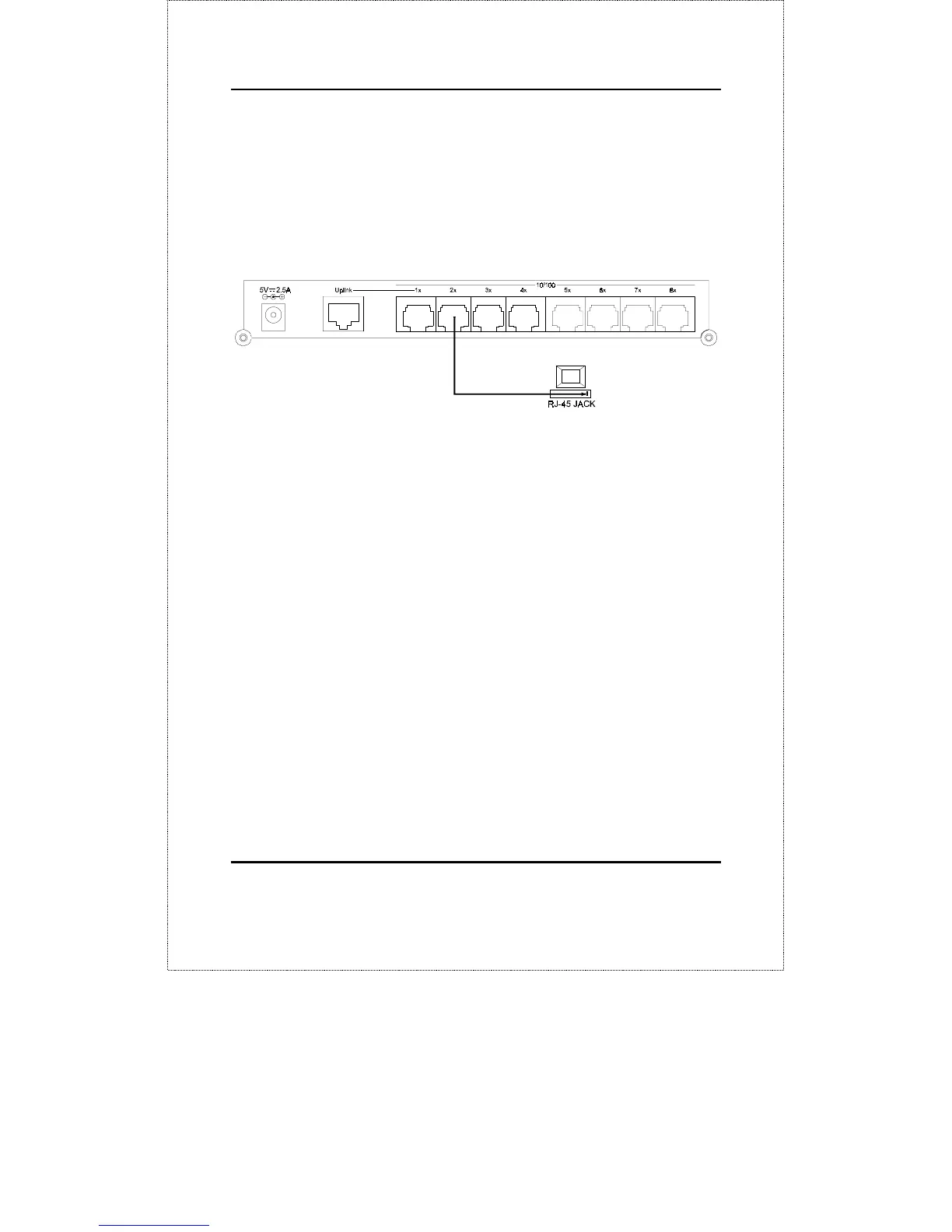

Figure 4.1 PC or Workstation connected to a DES-1008D Switch
The LED indicators for PC connection are dependent on the LAN
card (NIC) capabilities. If no LED indicators are illuminated after
connecting the cable, check the PC’s LAN card, the cable, switch
conditions and connections.
The following are LED indicator possibilities for a PC to switch
connection:
1. The port’s corresponding 100M indicator (LED) lights for a
100 Mbps link and stays dark for 10 Mbps.
2. The Link/Act LED indicator illuminates upon hookup.
3. The FDX LED indicator lights for full-duplex, remains dark
for a half-duplex link, and blinks when collisions take place.

D-Link DES-1008D Specifications

General

Switch type	Unmanaged
Switch layer	-
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Fast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Full duplex	Yes
Networking standards	IEEE 802.3, IEEE 802.3x
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
MAC address table	1024 entries
Product color	Black
Maximum data transfer rate	100 Mbit/s
Mean time between failures (MTBF)	116186 h
Input current	1 A
Output voltage	5 V
Package depth	158 mm
Package width	104 mm
Package height	94 mm
Package weight	310 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1885 mm
Pallet gross weight (air)	330500 g
Quantity per pallet (air)	1000 pc(s)
Shipping (inner) case width	211 mm
Shipping (inner) case height	350 mm
Shipping (inner) case length	543 mm
Shipping (inner) case weight	6230 g
Shipping (inner) case net weight	3960 g
Number of cartons per pallet (air)	50 pc(s)
Quantity per shipping (inner) case	20 pc(s)
Harmonized System (HS) code	85176990
