D-Link DGS-1008P Quick Install Guide

3
ENGLISH

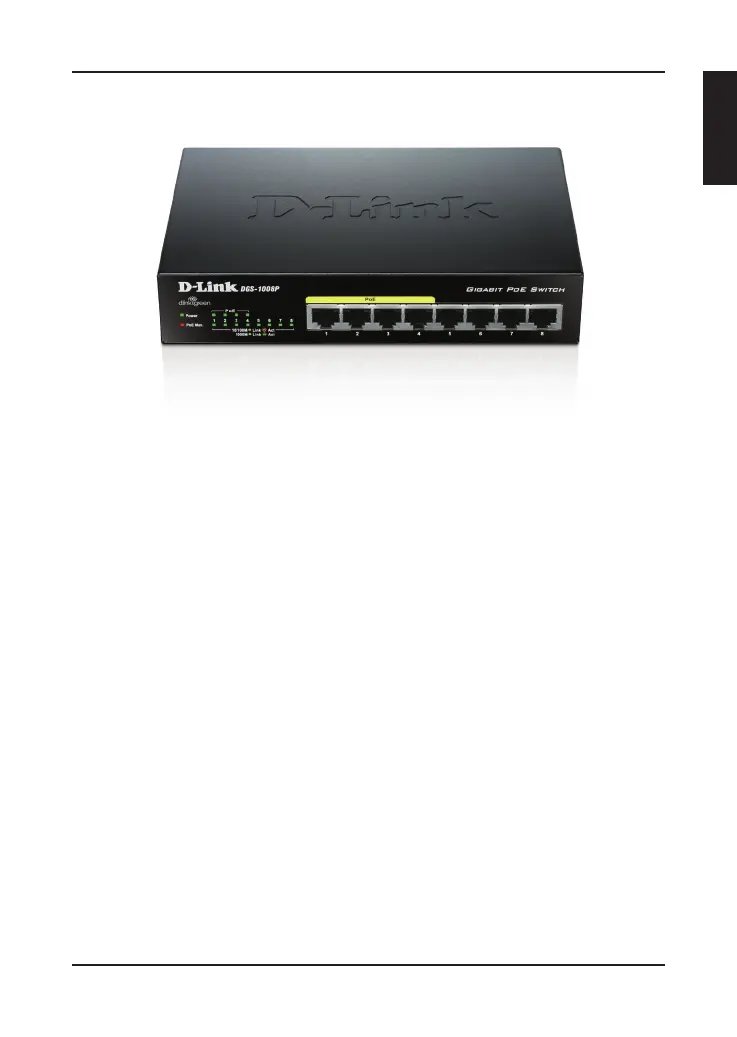

Power Indicator - This green indicator light is on when the Switch is receiving
power; otherwise, it is o.
Link/Act/Speed (1-8) - This LED indicator light is green when the port is
successfully connected to a 1000Mbps device and will blink as data is transmitted
or received.
This LED indicator light is amber when the port is successfully connected to a
100Mbps or 10Mbps device and will blink as data is transmitted or received.
PoE Ports (1-4) - This LED indicator light is solid green when the port is
successfully connected to a powered device and is powering the device
properly.
This LED indicator light is solid red when the PoE port has failed, possibly due
to PoE power circuit shortage, power is over the power current of the PoE
device’s classication, or out of the PoE voltage output of 44 ~ 57 VDC.
If the LED is o, there is no connection to a powered device (that requires power).
PoE Max - A solid red light indicates the power output to PoE devices is over 45W.
No additional devices can be powered on safely. A blinking red light indicates that
the addition or removal of a device caused the power output to PoE devices to go
over 45W. The PoE MAX LED will blink for 2 minutes before changing to a solid red
light. When the light is o, the power output to PoE devices is less than 45W.
LEDs

D-Link DGS-1008P Specifications

General

MAC address table	8000 entries
Store-and-forward	Yes
Packet buffer memory	0.256 MB
Packet forwarding rate (1 Gbps)	14880 pps
Packet forwarding rate (10 Mbps)	1488000 pps
Packet forwarding rate (100 Mbps)	148800 pps
10G support	No
Networking standards	IEEE 802.3, IEEE 802.3ac, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-T, 1000BASE-T
Switch type	Unmanaged
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Product color	Black
Rack mounting	-
LED indicators	Activity, Link, PoE, Power, Speed, Status
Total Power over Ethernet (PoE) budget	68 W
Power over Ethernet (PoE) ports quantity	4
Power over Ethernet (PoE) power per port	30 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Input current	1.5 A
Noise level	0 dB

Weight and Dimensions

Depth	120 mm
Width	190 mm
Height	38 mm
