D-Link DGS-1520-28MP Quick Installation Guide

Information in this document is subject to change without notice.
© 2021 D-Link Corporation. All rights reserved.
Package Contents
Open the shipping carton of the switch and carefully unpack its contents. The model you
have purchased may appear slightly different from the one shown in the illustrations. The
carton should contain the following items:
 One DGS-1520-28MP switch
 One AC power cord
 One power cord retainer
 One console cable (RJ-45 to RS-232)
 One rack mounting kit (two brackets and screws)
 Four rubber feet with adhesive backing
 One Quick Installation Guide
Front Panel Description
The front panel of the switch contains the following items:
 20 10/100/1000Base-T PoE ports
 4 100/1000/2.5GBase-T PoE ports
 2 10GBase-T ports
 2 10GBase-X SFP+ ports
 RJ-45 console port
 LEDs: Power, RPS, Console, Fan Error, Link/Activity/Speed Mode, PoE Mode, Link/
Activity/Speed (per port), PoE OK/PoE Fail (per PoE port), Stack ID
 Mode, Reset/ZTP buttons

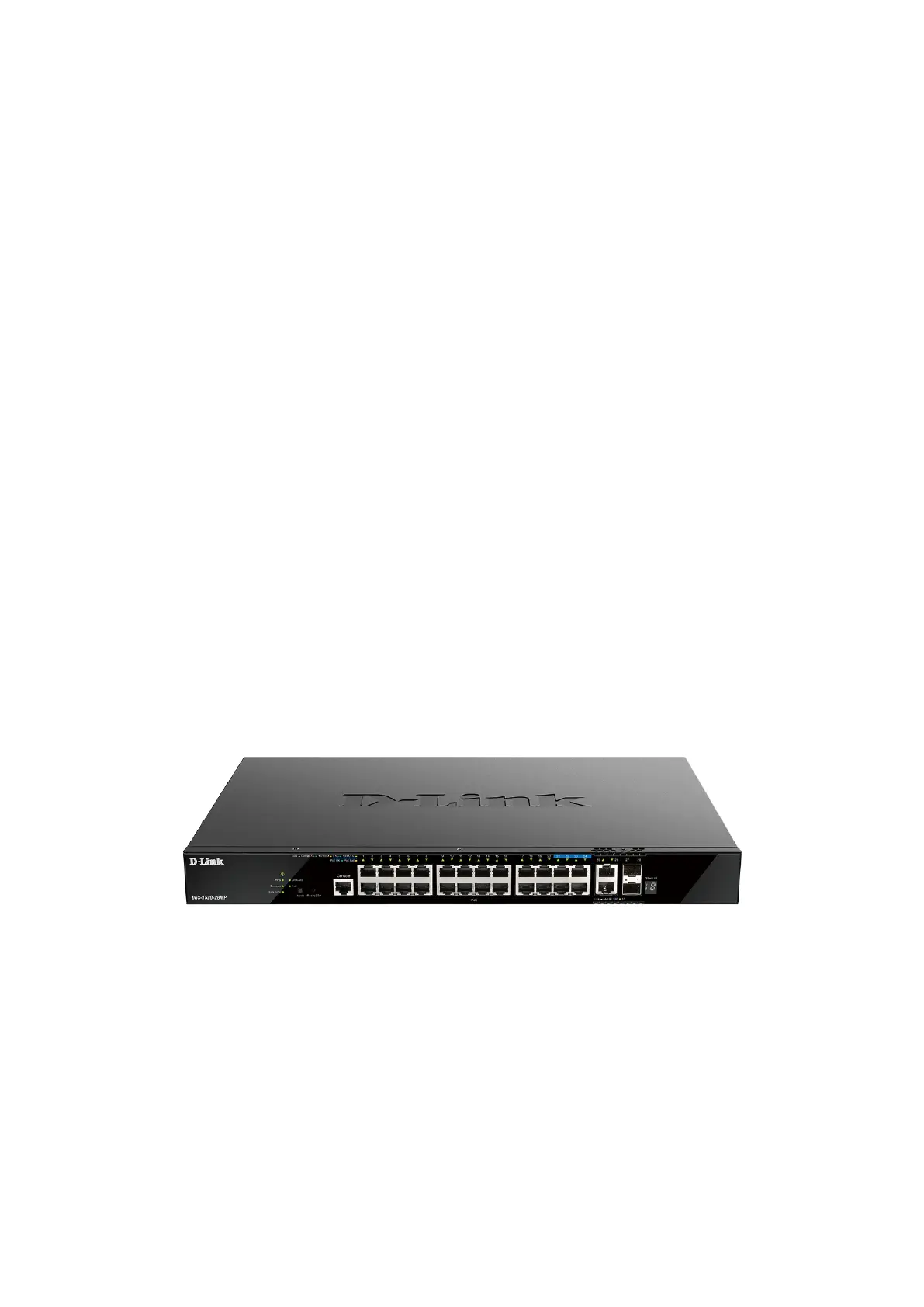

Figure 1 — DGS-1520-28MP front panel
Front Panel LEDs
The front panel of the switch contains the following LEDs: Power, RPS, Console, Fan
Error, Link/Activity/Speed Mode, PoE Mode, Link/Activity/Speed (per port), PoE OK/PoE
Fail (per PoE port), Stack ID.


D-Link DGS-1520-28MP Specifications

General

Brand	D-Link
Model	DGS-1520-28MP
Category	Switch
Language	English
