DGS-3130 Series Layer 3 Stackable Managed Switch Hardware Installation Guide
11
2. Hardware Components
This chapter describes the front, rear, and side panel components of all switches in the series.
DGS-3130-30TS Switch
DGS-3130-30S Switch
DGS-3130-30PS Switch
DGS-3130-54TS Switch
DGS-3130-54S Switch
DGS-3130-54PS Switch
DGS-3130-30TS Switch
Front Panel Components
The front panel of DGS-3130-30TS features a variety of LED indicators and ports.

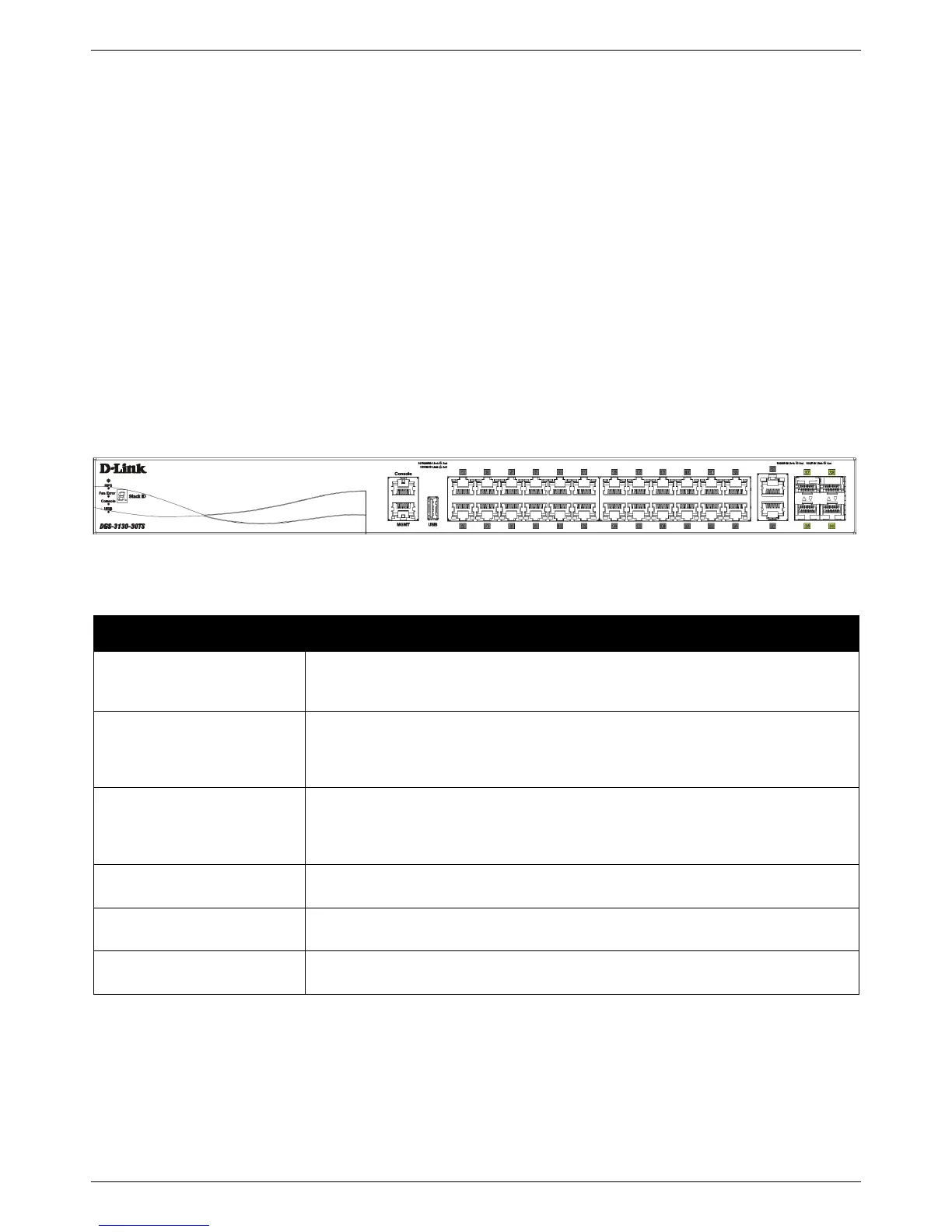

Figure 2-1 Front panel view of the DGS-3130-30TS
Ports that can be found on the front panel of this switch are listed in the table below.
Port
Description
USB
Inserting a flash drive into the USB 2.0 Type-A port provides an additional storage
space for portable firmware images and configuration files that can be copied to
and from the NVRAM of the Switch.
MGMT
The RJ45 Management (MGMT) port is an IP-based, Out-Of-Band (OOB) port for
Telnet, web, or SNMP management that operates at 10/100/1000 Mbps wire-
speed. This port can be used to configure the Switch without being connected to
the network.
Console (RJ45)
The RJ45 console port can be used to connect to the Command Line Interface
(CLI) of the Switch for configuration, management, and monitoring. This port uses
a special console cable (included in this package) with a DB9 interface to connect
the Switch to the serial port (COM) of the PC.
10/100/1000 Mbps RJ45
Ports
The Switch is equipped with 24 RJ45 Ethernet ports. These ports can operate at 10
Mbps, 100 Mbps, and 1 Gbps wire-speeds.
10 Gigabit RJ45 Ports
The Switch is equipped with 2 RJ45 Ethernet ports. These ports can operate at 1
Gbps or 10 Gbps wire-speeds.
10 Gigabit SFP+ Ports
The Switch is equipped with 4 SFP+ ports. These ports can operate at 1 Gbps or
10 Gbps wire-speeds and support a wide collection of SFP+ transceivers.
For a complete list of SFP/SFP+ transceivers that are compatible with this switch, refer to the SFP Ports and SFP+
Ports sections in Appendix A - Technical Specifications.
LED Indicators
Located on the front panel of this switch are LED indicators: Power, Console, RPS, Fan Err, USB, Link/Act indicators
for all the ports, and Stack ID.

D-Link DGS-3130-54TS Specifications

General

Power over Ethernet (PoE)	No
Switching Capacity	176 Gbps
MAC Address Table Size	32K
RAM	512 MB
Flash Memory	32 MB
Power Supply	Internal
Rack Mountable	Yes
Device Type	Managed
Primary Type	Layer 3
Port Type	10/100/1000 Mbps
Jumbo Frame	9KB
Operating Temperature	0 to 50 °C
Storage Temperature	-40°C to 70°C
Humidity	5% to 95% (non-condensing)
