D-Link DI-524 - Using the Configuration Menu

12
  Type admin in the User
Name eld
 Leave the Password blank
Click OK
  Open the web browser
 Type in the IP Address of
the Router (http://192.168.0.1)


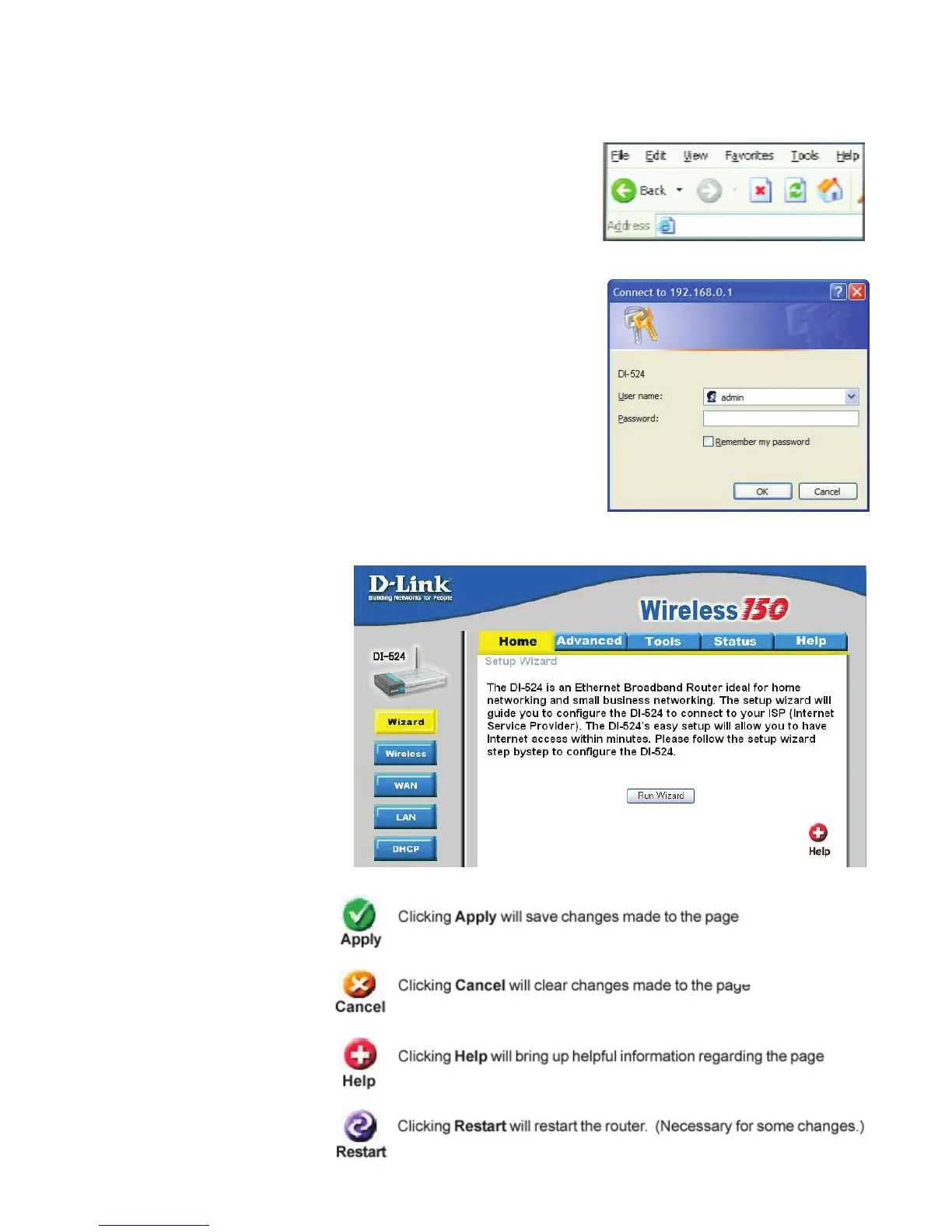

Using the Conguration Menu
Home > Wizard
The Home>Wizard
screen will appear.
Please refer to the
Quick Installation
Guide for more
information regarding
the Setup Wizard.
Note: if you have changed the default IP Address assigned to
the DI-524, make sure to enter the correct IP Address.

These buttons
appear on most of the
conguration screens
in this section. Please
click on the appropriate
button at the bottom
of each screen after
you have made a
conguration change.

http://192.168.0.1
Whenever you want to congure your network or the
DI-524, you can access the Conguration Menu by
opening the web-browser and typing in the IP Address
of the DI-524. The DI-524 default IP Address is shown
at right:
http://192.168.0.1
