D-Link DIR-825M

User Manual of DIR-825M
-13-
2.1.1 Front LED
The front LED provides a simple interface monitoring the router. Figure 2-1-1-1 shows the front LED of the DIR-
825M.
Front LED

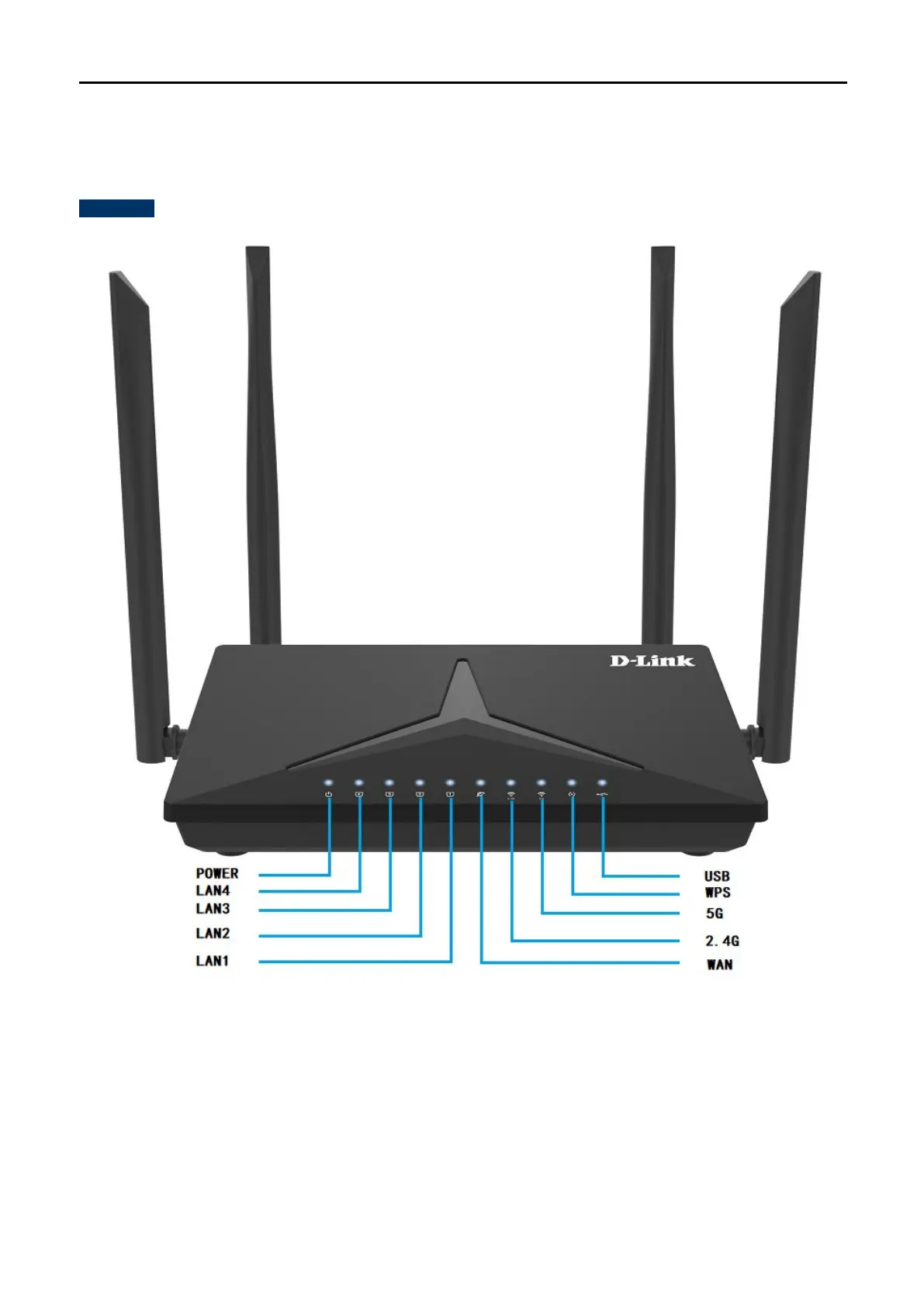

Figure 2-1-1-1 DIR-825M Top View
2.1.2 LED Indications
The LEDs on the front panel indicate instant status of port links, wireless data activity, system power, USB and
WPS, and help monitor and troubleshoot when needed. Figure 2-1-1-1 and Table 2-1-2-1 show the LED
