Hardware Overview

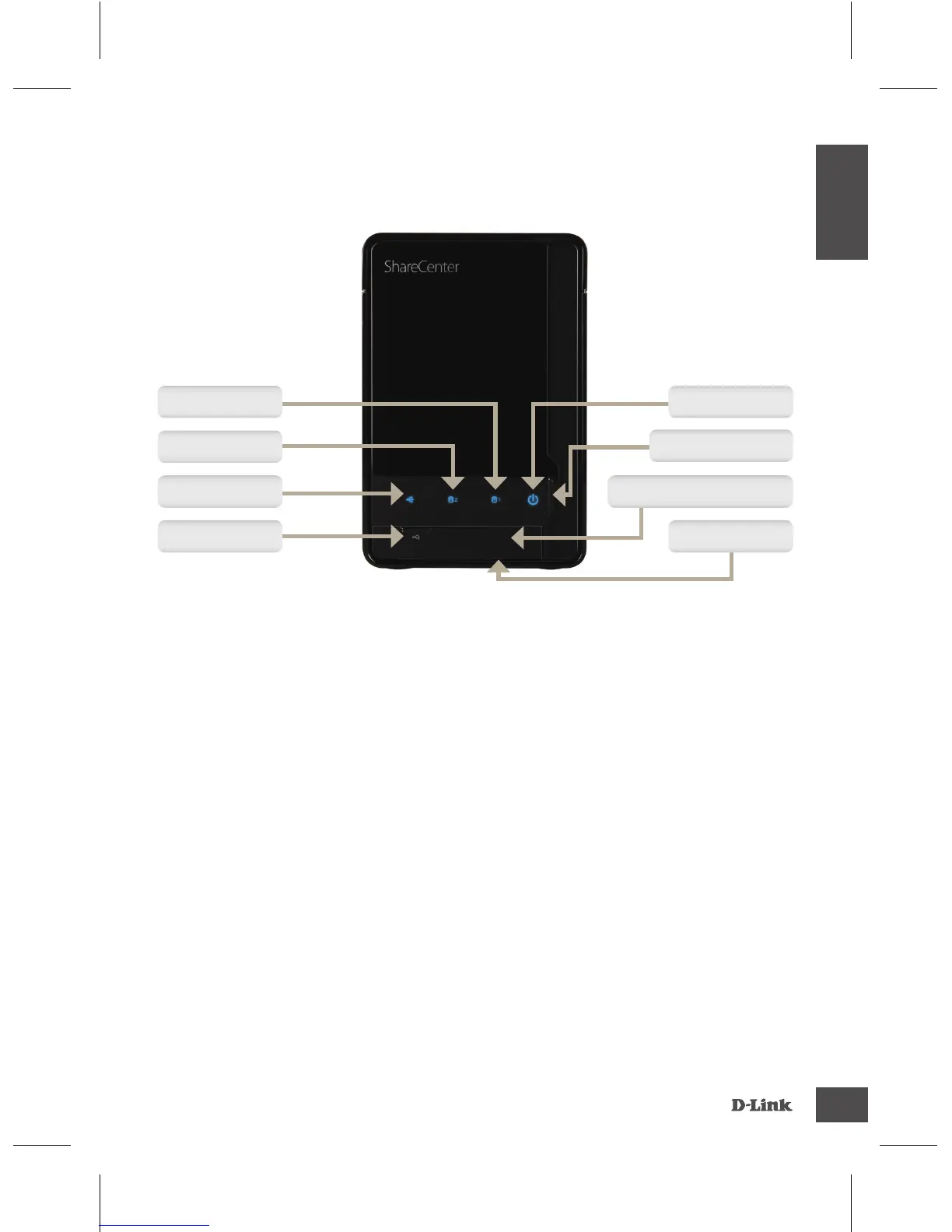

Front View
HDD1/HDD2 LEDS:
These lights will be solid BLUE when drives are connected but inactive. The lights
will blink when the drives are being accessed, formatted or synchronized. They will
illuminate AMBER if a drive has failed.
USB LED:
This light will illuminate when a USB device is inserted into the USB Port. This light
will blink when there is trafc.
USB Port:
This is the USB Port. Devices like a USB Printer, UPS or USB drive can be inserted
here.
Power LED:
This light will illuminate when this ShareCenter Pulse is powered on.
Power Button:
Press once to power on the ShareCenter Pulse. Press and hold the button until it
begins to blink to power down the ShareCenter Pulse.
USB Copy Button:
Press to copy data from USB drive to ShareCenter Pulse. Press and hold 5 seconds
to un-mount the USB drive.
Front Latch:
This panel can be latched or unlatched simply by pressing on it.
HDD2 LED
HDD1 LED Power LED
USB Port
USB LED
Front Latch
USB Copy Button
Power Button
