Hardware Setup

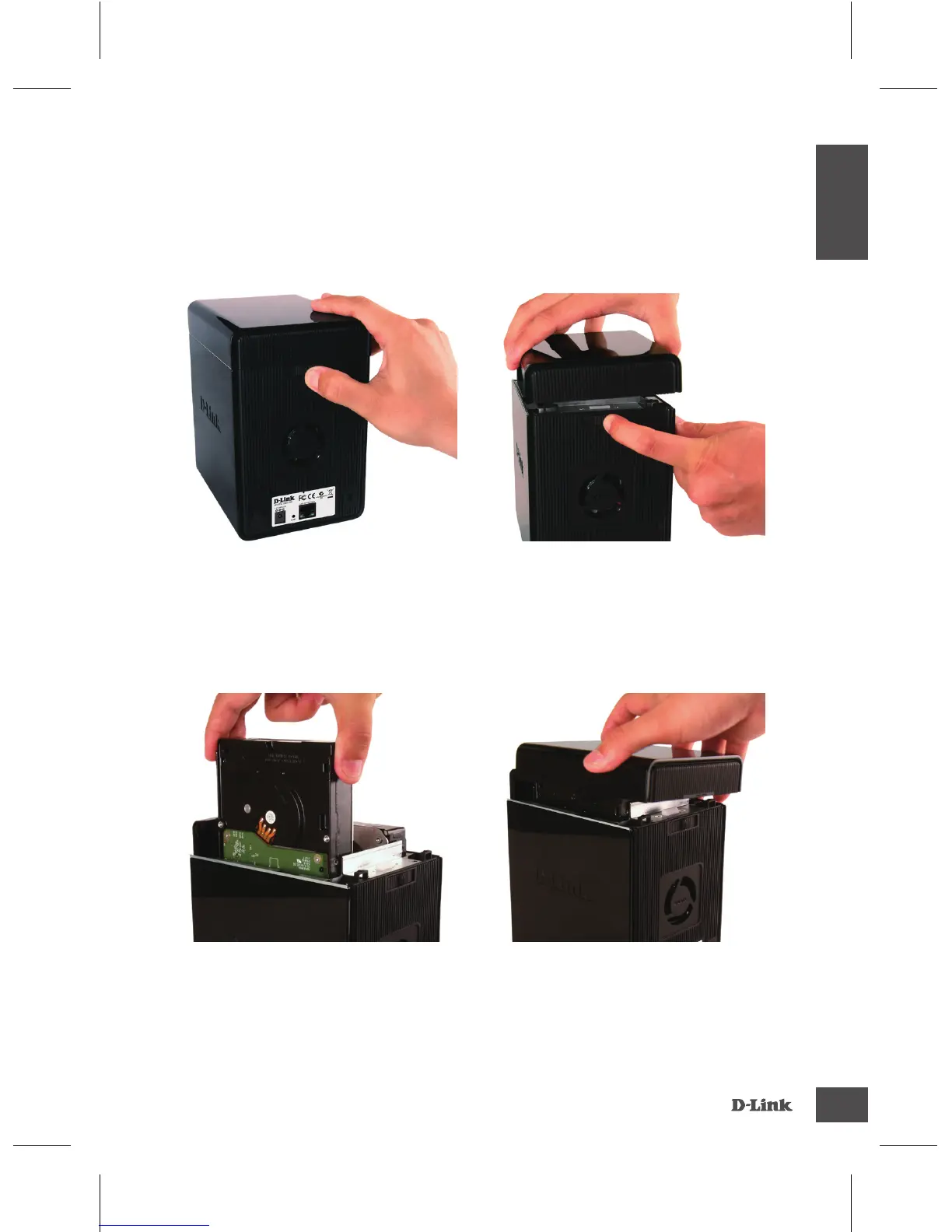

This section provides installation information for the ShareCenter Pulse. To
install the ShareCenter Pulse on your local network, refer to the steps below:
3. Insert a 3.5” SATA hard drive into
an available drive bay.
4. Re-attach the top cover.
1. To remove the top cover you have
move the cover lock to the right.
2. While holding the cover lock, slide
the top cover backwards. After
sliding the top cover backwards,
lift the top cover up to remove it.
