D-Link DP-301P+ User Manual

12
System Status and Printer Status
Server Name: The name assigned to the print server.
Model: The model of the print server.
Hardware Version: The version of the hardware on the print server.
Firmware Version: The version of the firmware and release date on the print
server.
MAC Address: The MAC address of the Ethernet port.
IP Address: The IP address of the print server.
Up Time: The length of time the print server has been up.

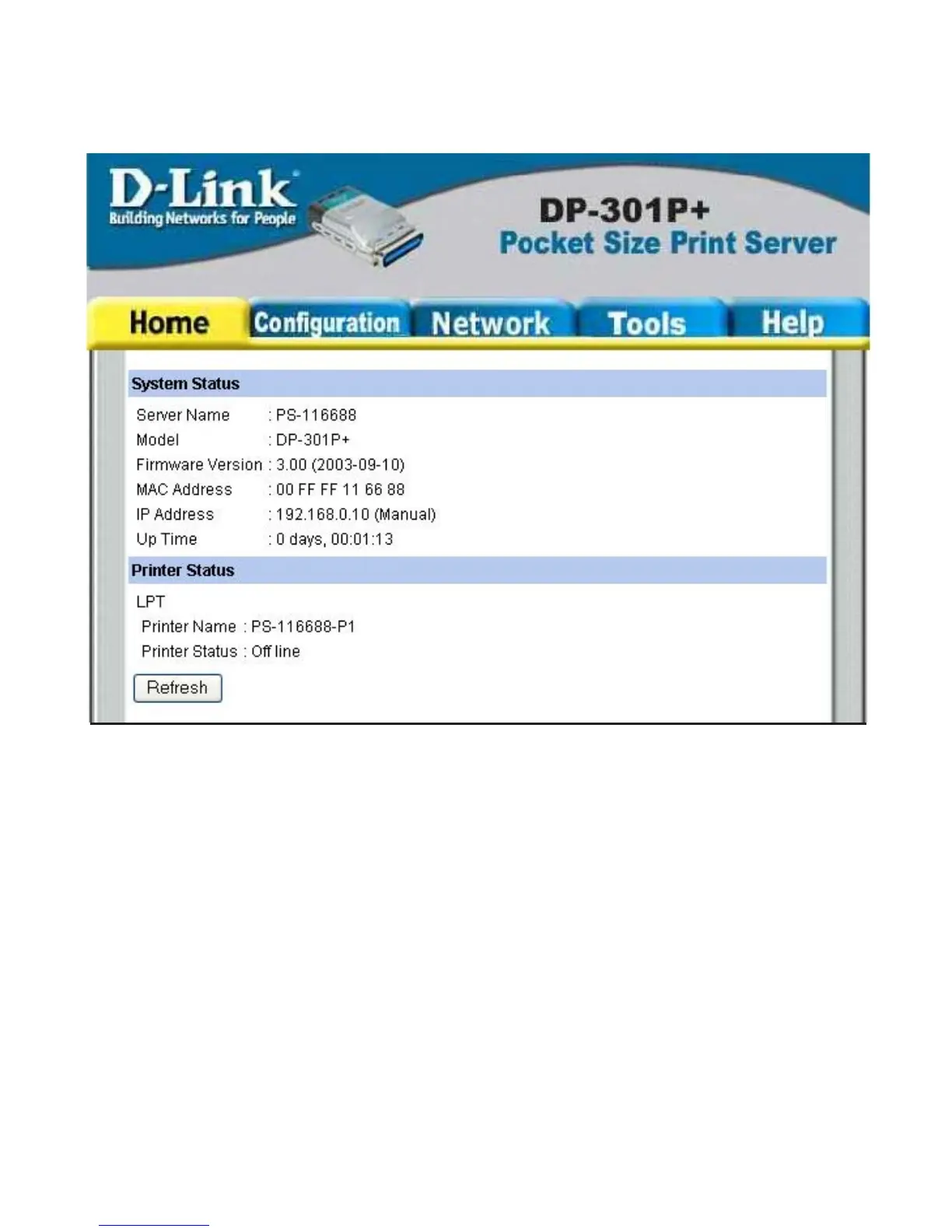

Using the Web Configuration (continued)
Home
The Home tab displays the system information, providing general information
regarding the print server. Click on the Refresh button to acquire the most updated
information. Once a printer is connected to the print server, the Printer Status will
be displayed.

D-Link DP-301P+ Specifications

General

Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Network connection type	Ethernet LAN
Copper ethernet cabling technology	100BASE-TX, 10BASE-T
Supported network protocols	TCP/IP, NetBEUI, AppleTalk, LPR, SMB, IPP
DC-in jack	Yes
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Flash memory	2 MB
Internal memory	8 MB
Internal	No
Product color	Gray
LED indicators	Power
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows NT, Windows XP Home, Windows XP Home x64, Windows XP Professional
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Safety	UL, LVD
Certification	FCC B, CE B, C-Tick
Cabling technology	10/100Base-T(X)
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	52.6 mm
Width	85.6 mm
Height	25.9 mm
