7 D-Link DPH-400S(SE) Quick Install Guide

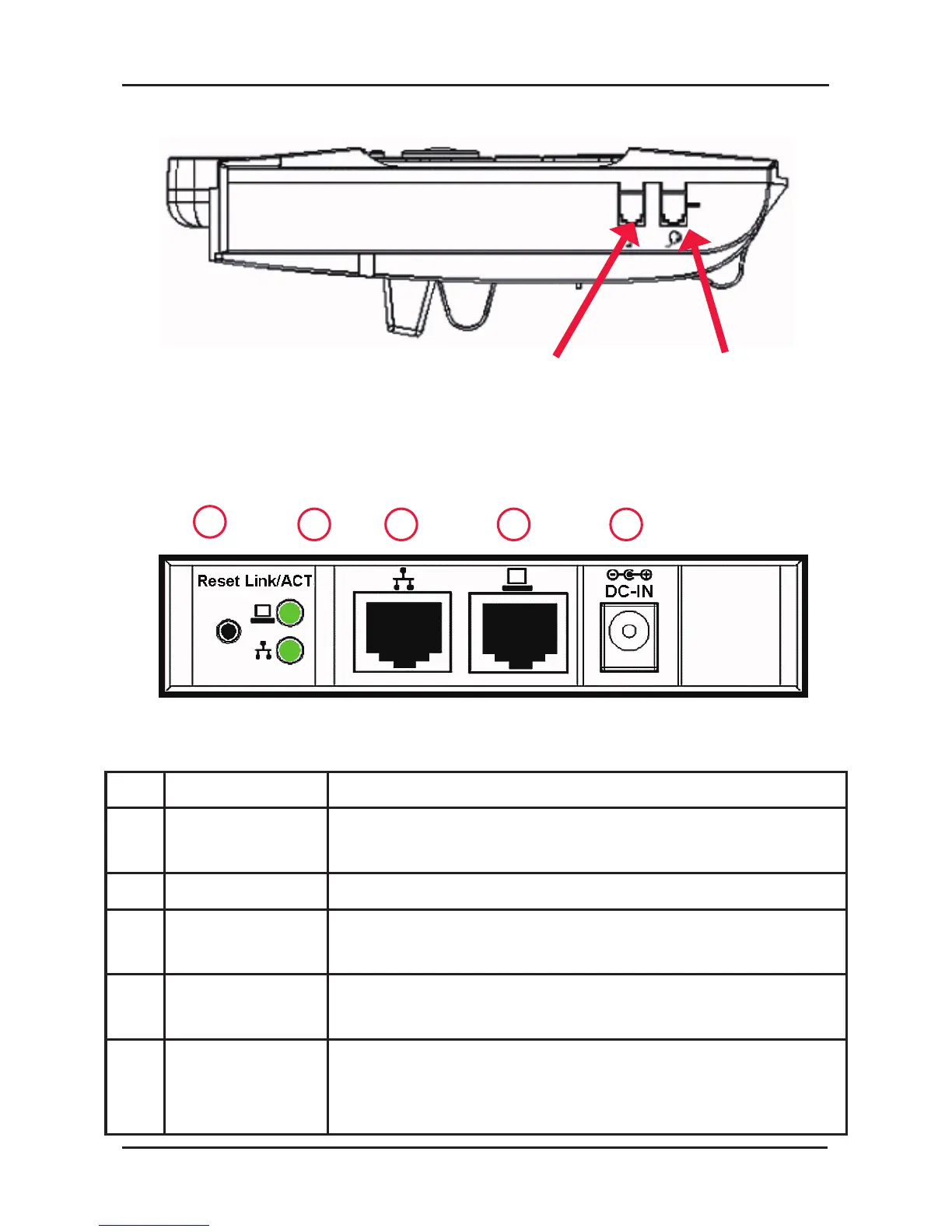

Side View
Rear View
Port & LED Functions
Handset
Jack (RJ-9)
Headset
Jack (RJ-9)
1
2
3
4
5
No Part Name Description of Port Function
1 Reset button Reset the settings to the factory defaults
settings
2 Link/Activity To indicate the link status of LAN and PC ports
3 LAN port RJ-45 Jack 100/10Mbps Ethernet port for
connecting to IP network
4 PC port RJ-45 Jack 100/10Mbps Ethernet port for
connecting to a PC or Notebook
5 Power Jack If a power source from an adapter is required,
please use the standard power adapter supplied
in the package (5VDC/2A).
