D-Link DSL-2640U Quick Installation Guide

DSL-2640U Quick Installation Guide
Selecting Operation Mode

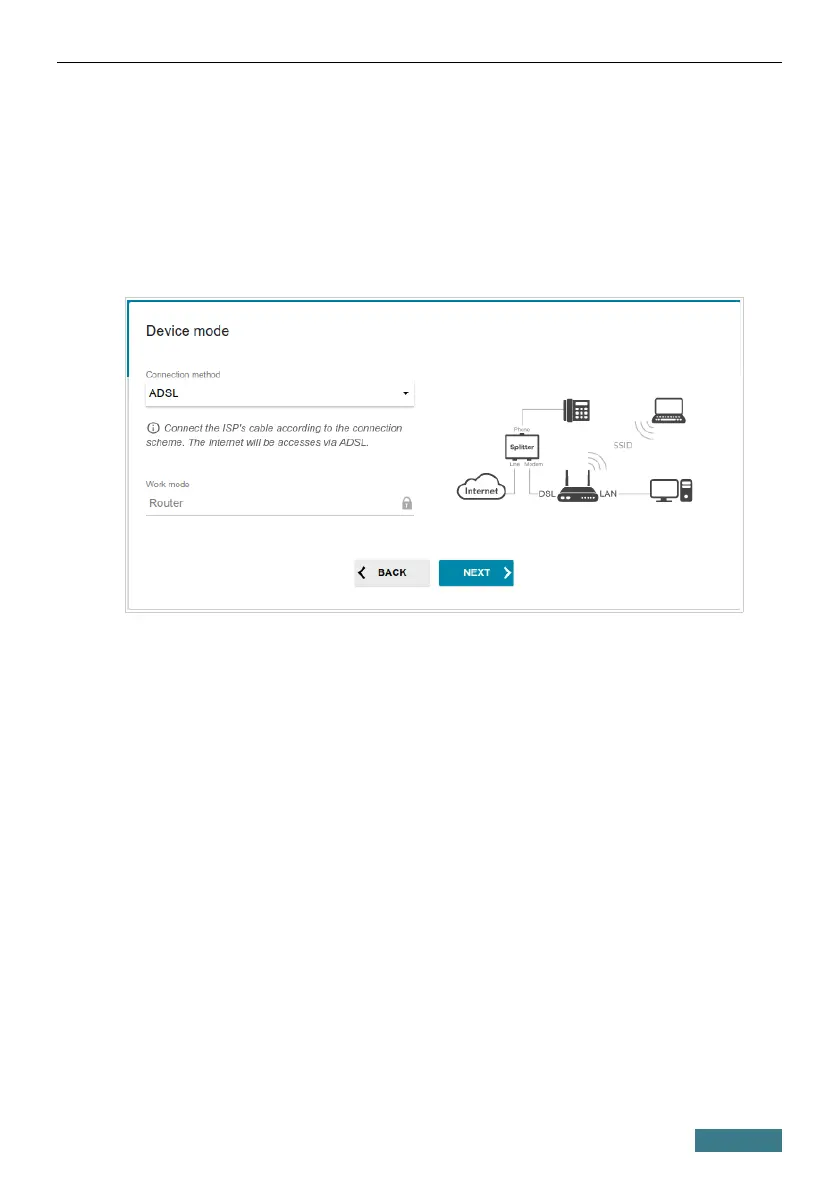

In order to connect your device to an ADSL line, on the Device mode page,
from the Connection method list, select the ADSL value. In this mode you
can configure a WAN connection, set your own settings for the wireless
network, configure LAN ports to connect an STB or VoIP phone, and set your
own password for access to the web-based interface of the device.
In order to connect your device to a private Ethernet line, on the Device
mode page, from the Connection method list, select the Ethernet (LAN)
value. In this mode you can configure one of the router's LAN port as the
WAN port, configure a WAN connection, set your own settings for the wireless
network, configure LAN ports to connect an STB or VoIP phone, and set your
own password for access to the web-based interface of the device.
When the operation mode is selected, click the NEXT button.
18

D-Link DSL-2640U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface connector	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface ports	four RJ-45 ports for 10/100BASE-T Ethernet connection
