D-Link DSL-2640U Quick Installation Guide

DSL-2640U Quick Installation Guide

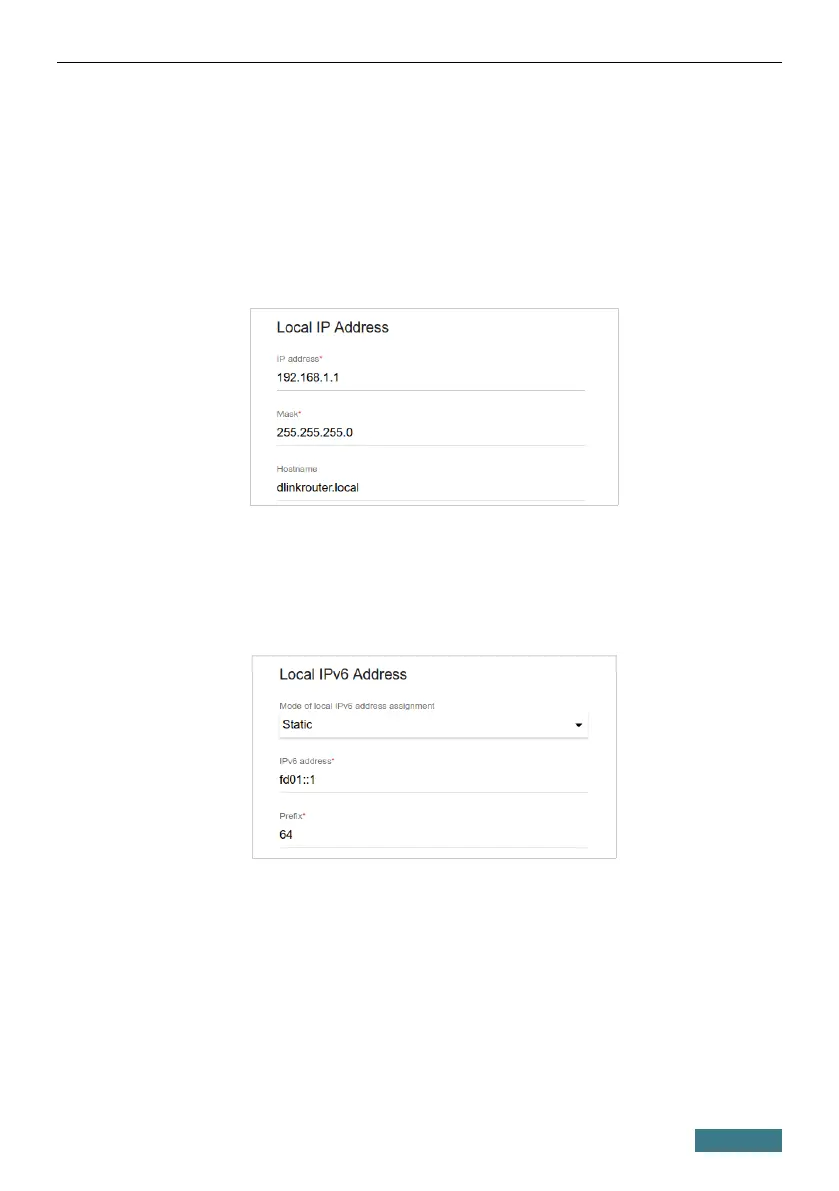

Configuring Local Area Network
1. Go to the Connections Setup / LAN page.
2. If needed, change the IPv4 address of the router's LAN interface and the
mask of the local subnet. To do this, click the IPv4 tab and specify
needed values in the IP address and Mask fields in the Local IP
Address section.
3. If needed, specify your own IPv6 address of the router's LAN interface.
To do this, click the IPv6 tab and select the Static value from the Mode
of local IPv6 address assignment drop-down list in the Local IPv6
Address section. Then specify the needed value in the IPv6 address
field.
29

D-Link DSL-2640U Specifications

Power

input voltage	100V-240V
input current	0.6A
input frequency	50 Hz - 60 Hz
output voltage	12V
output current	1A

Data Transfer Rates

G.dmt full rate downstream	up to 8 Mbps
G.dmt full rate upstream	up to 1 Mbps
G.lite ADSL downstream	up to 1.5 Mbps
G.lite ADSL upstream	up to 512 Kbps
G.dmt.bis full rate downstream	up to 12 Mbps
G.dmt.bis full rate upstream	up to 1 Mbps
ADSL2+ full rate downstream	up to 24 Mbps
ADSL2+ full rate upstream	up to 1 Mbps

Wireless Transfer Rates

IEEE 802.11b transfer rates	11, 5.5, 2, and 1 Mbps
IEEE 802.11g transfer rates	6, 9, 12, 18, 24, 36, 48, 54 Mbps

Media Interface

ADSL interface connector	RJ-11 connector for connection to 24/26 AWG twisted pair telephone line
LAN interface ports	four RJ-45 ports for 10/100BASE-T Ethernet connection
