DSL-2640U Quick Installation Guide
Conguring LAN Ports for IPTV/VoIP

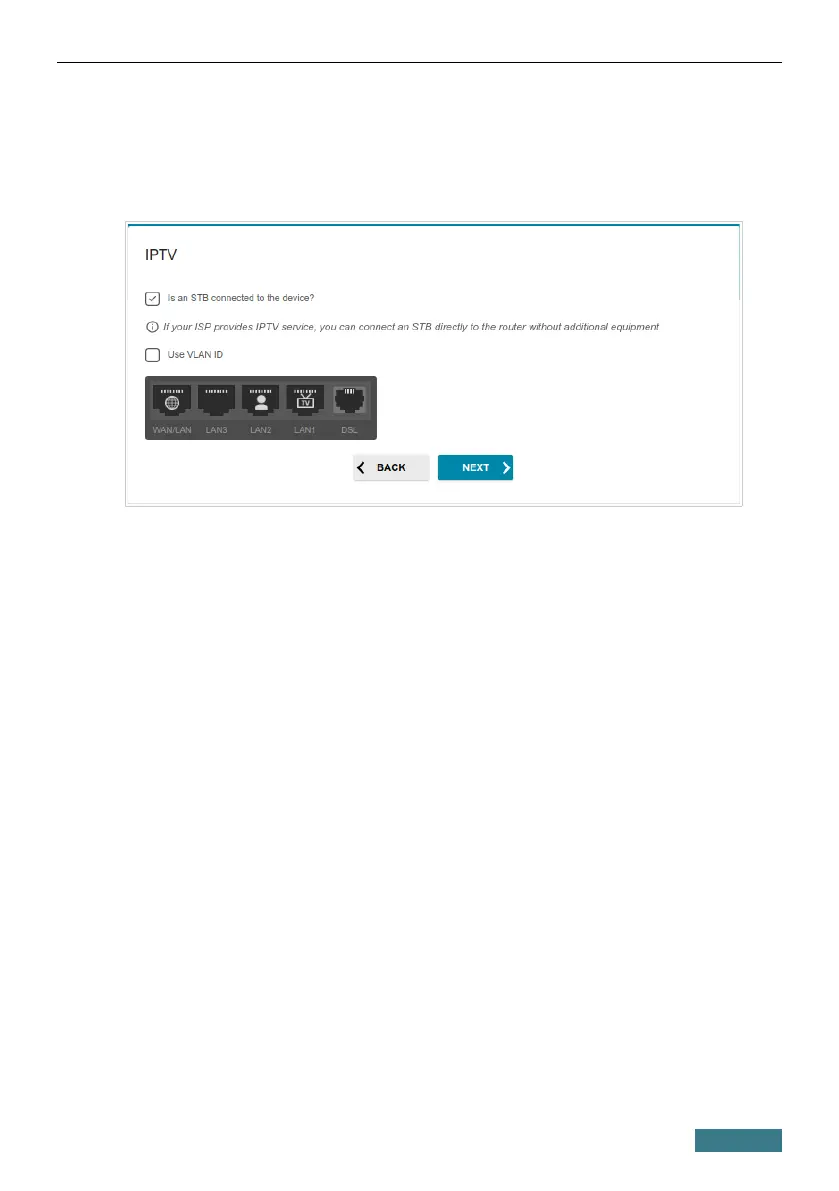

1. On the IPTV page, select the Is an STB connected to the device
checkbox.
2. Select a free LAN port for connecting your set-top box.
3. For the Ethernet (LAN) mode: If the IPTV service is provided via a
VLAN channel, select the Use VLAN ID checkbox and fill in the VLAN
ID field.
4. For the ADSL mode: Specify the VPI and VCI values in the relevant
fields.
5. Click the NEXT button.
26
