8D-Link DSL-2885A User Manual
Section 1 - Product Overview
2 3 4
5
6 7 81

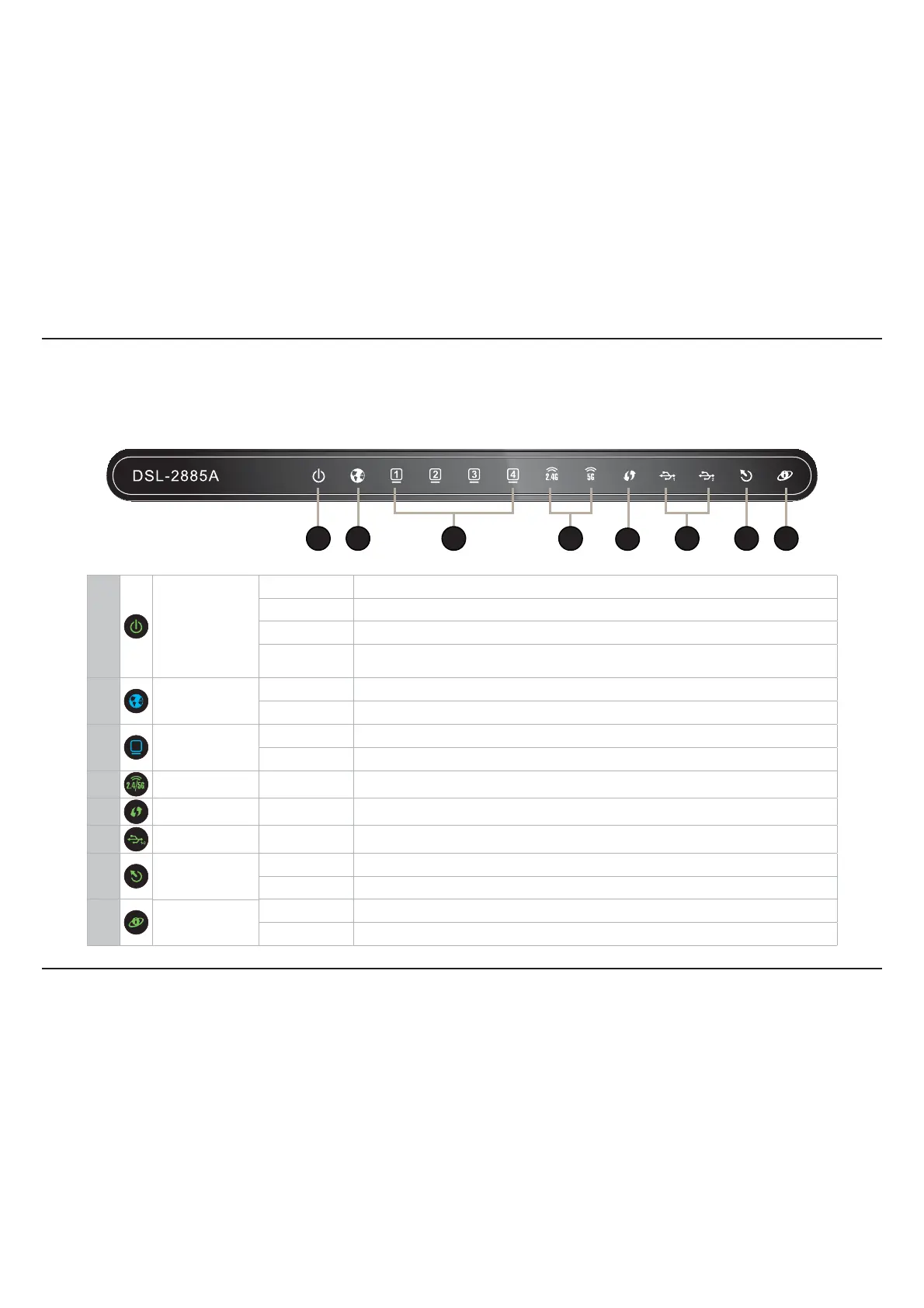

Hardware Overview
LEDs
1 Power
Solid Green A solid green light indicates a proper connection to the power supply.
S
olid Red A solid red light indicates a the device is booting or an error has occurred.
Blinking Green A blinking green light indicates that backup mode is active.
Blinking Red
A blinking red light indicates that the device is resetting to factory defaults or the
rmware is being updated.
2
WAN
Solid Blue A solid blue light indicates a WAN Port connection.
Blink
ing Blue A blinking blue light indicates a WAN Port activity.
3
LAN Ports 1-4
Solid Blue A solid blue light indicates a LAN Port connection.
Blink
ing Blue A blinking blue light indicates a LAN Port activity.
4
Wireless 2.4/5G Solid Green A solid green light indicates that the 2.4/5 GHz wireless band is enabled.
5
WPS Blinking Green A blinking green light indicates the WPS process is active.
6
USB 1-2 Solid Green A solid green light indicates that a USB device is detected on a USB port.
7
DSL
Solid Green A solid green light indicates a proper connection to a DSL enabled telephone line.
Blink
ing Green A blinking green light indicates the DSL port is negotiating a connection.
8
Internet
Solid Green A solid green light indicates an Internet connection.
S
olid Red A solid red light indicates no Internet connection is available.
