78
4.2 Connected-PC IP Address Configuration
Appropriate IP address settings are required to communicate with the
DWR-966. The following instructions use Windows XP to demonstrate
the IP setup steps.
1. In the Windows Start menu, click Control Panel.
2. Double-click Network Connections (if required, switch to Classic
View first).
3. Right-click Local Area Connection and then click Properties.

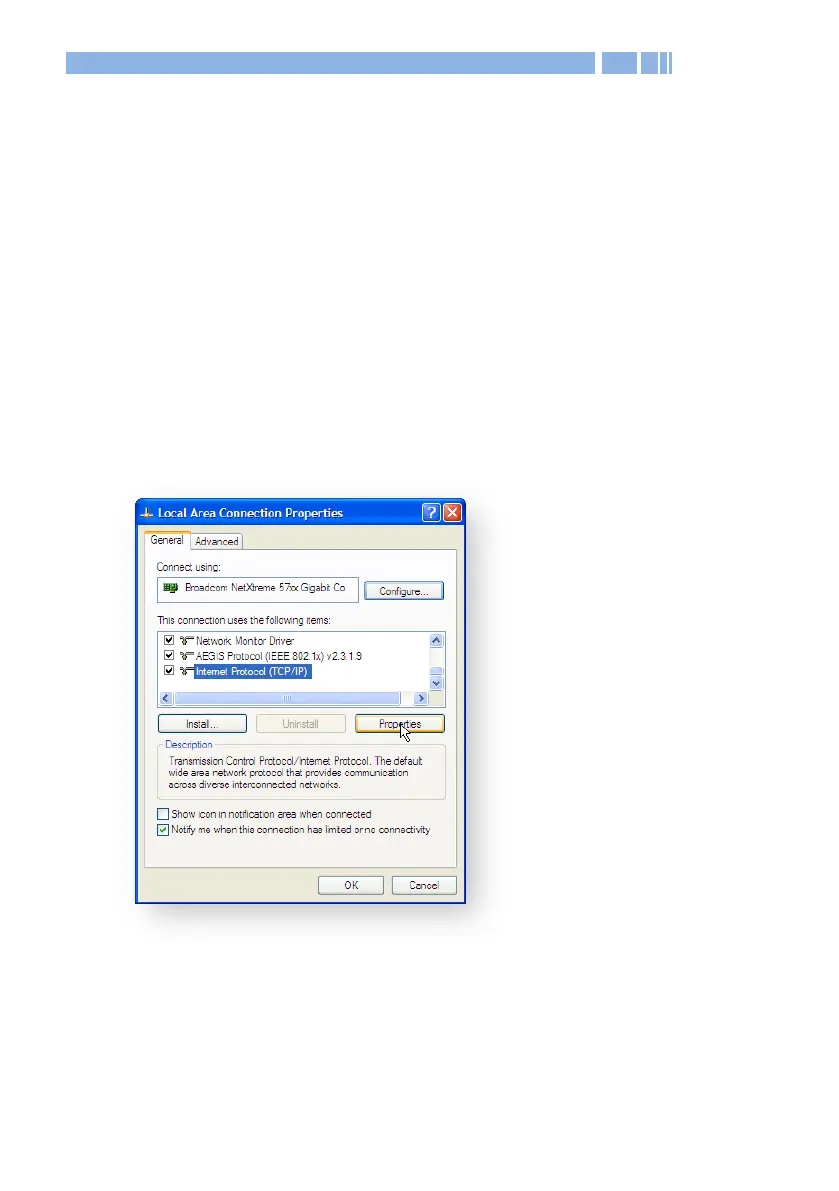

4. The Local Area Connection Properties window will appear:
5. From the “This connection uses the following items” list, select
Internet Protocol (TCP/IP) and then click Properties. The Internet
Protocol (TCP/IP) window will appear:
To Next Page
