D-Link EXO AX DIR-X1560 User Manual

14D-Link DIR-X1560 User Manual
Section 2 - Installation
Setup Wizard
If this is your rst time logging in to the page and no connection has been
established, then log in with the password shown on the device label or Quick
Install Guide.
The setup wizard is designed to guide you through a step-by-step process to congure your new DIR-X1560 and connect to the
Internet via a wireless setup process.

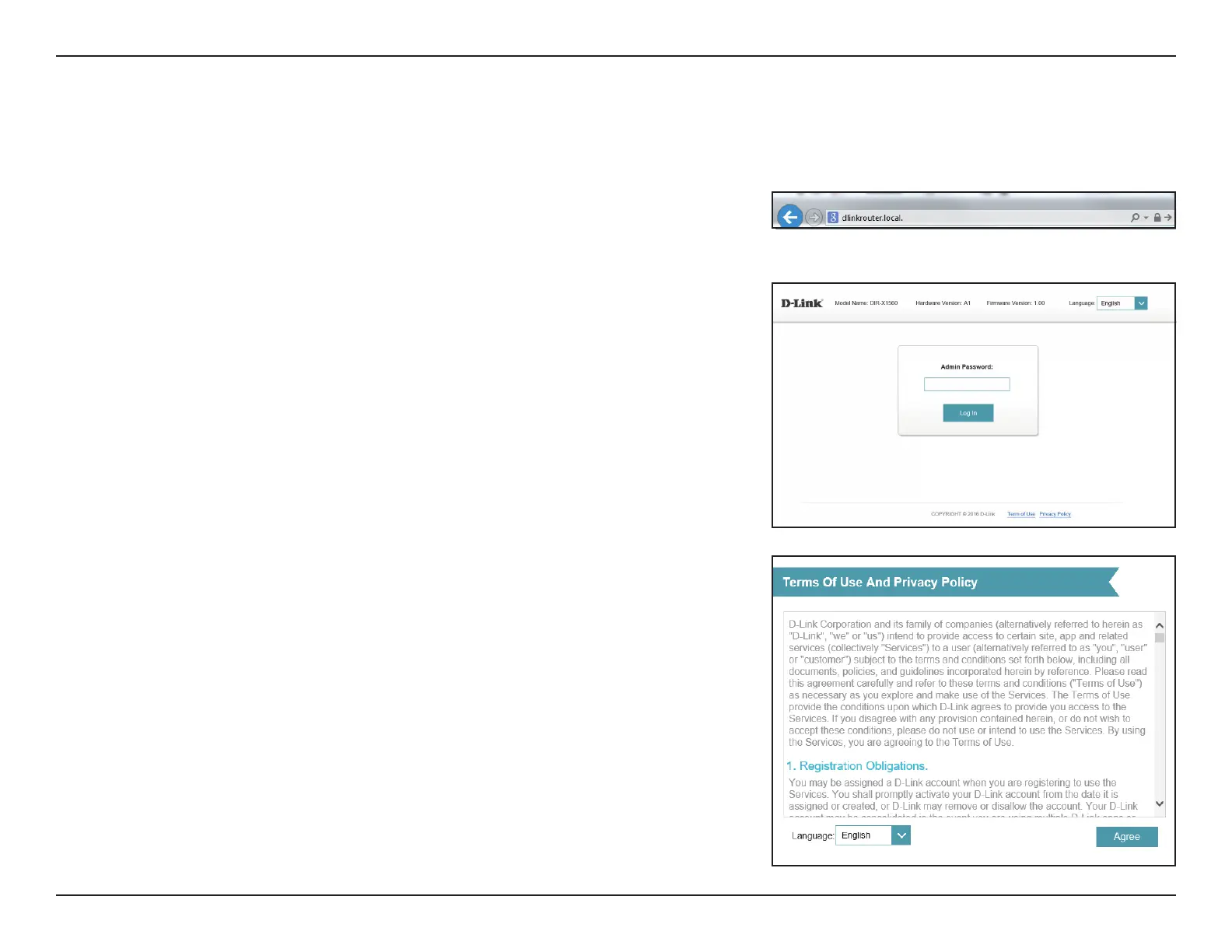

If this is your rst time installing the router, open your web browser and
enter http://dlinkrouter.local./ in the address bar. Alternatively, enter the IP
address of the router (default: http://192.168.0.1).
Agree to the Terms of Use and Privacy Policy before proceeding.

D-Link EXO AX DIR-X1560 Specifications

General

Wi-Fi Technology	Wi-Fi 6 (802.11ax)
Dual Band	Yes
Maximum Data Rate	1500 Mbps
Antenna Type	External
MU-MIMO	Yes
OFDMA	Yes
Beamforming	Yes
USB Port	No
LAN Ports	4 x Gigabit
WAN Ports	1 x Gigabit
Wireless Speed	1200 Mbps on 5GHz, 300 Mbps on 2.4GHz
Security	WPA3
