76D-Link DIR-X1560 User Manual
Section 3 - Conguration

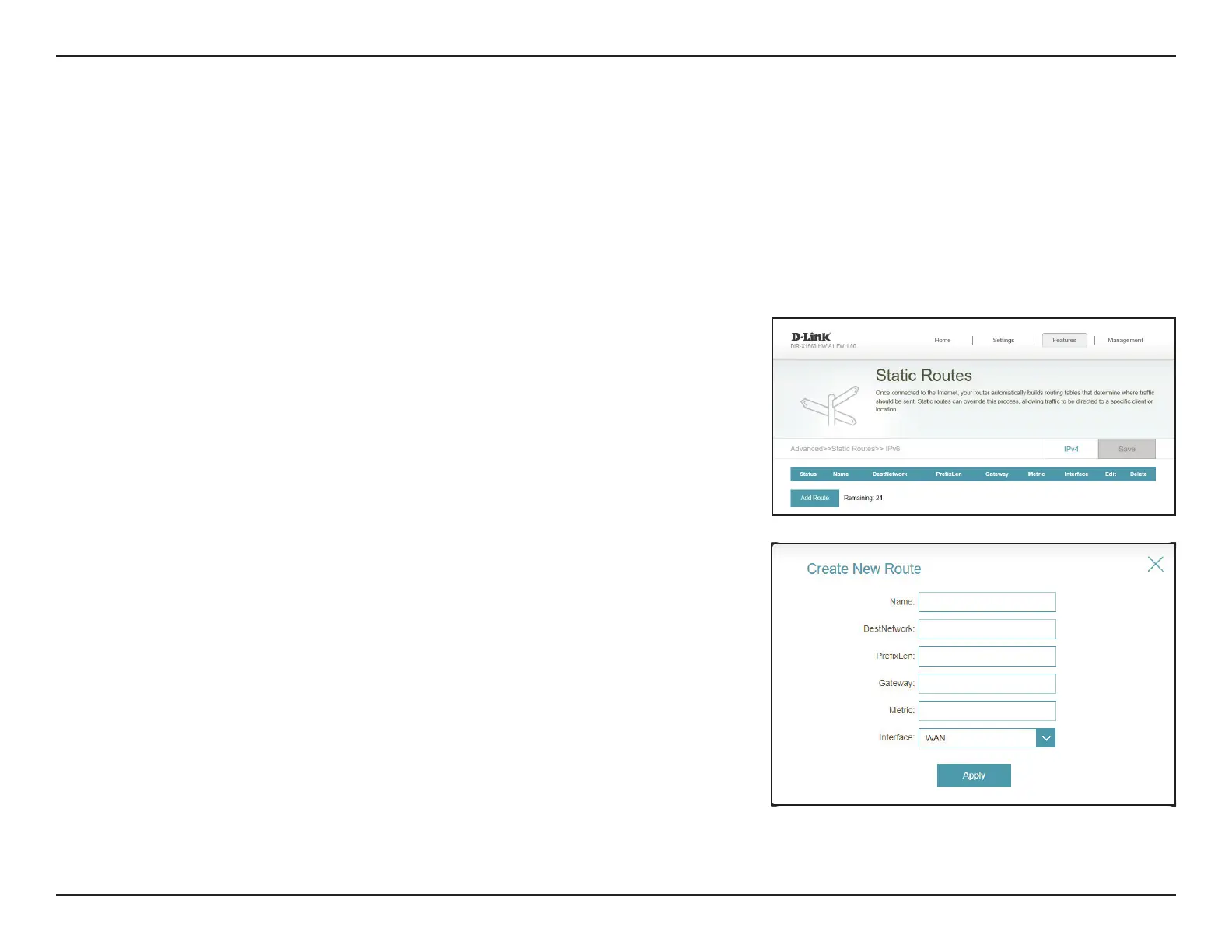

Static Route - IPv6
In the Features menu on the bar at the top of the page, click Static Route to access the IPv4 Static Route settings, then click
IPv6 to congure the IPv6 Static Routes.
To congure the Static Route IPv4 settings, click the IPv4 link. Refer to Static Route - IPv4 on page 75
Click Save at any time to save the changes you have made on this page.
If you wish to remove a route, click on the trash can icon in the Delete column. If you wish
to edit a route, click on the pencil icon in the Edit column. If you wish to create a new route,
click the Add Route button.
If you clicked on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
DestNetwork This is the IP address of the router used to reach the specied
destination.
PrexLen Enter the IPv6 address prex length of the packets that will
take this route.
Gateway Enter your next hop gateway to be taken when this route is
used.
Metric Enter a route metric value ranging from 0 to 15. This value
indicates the cost of using this route.
Interface Select the interface that the IP packet must use to transit out
of the router when this route is used.
