D-Link EXO AX DIR-X1560 User Manual

71D-Link DIR-X1560 User Manual
Section 3 - Conguration

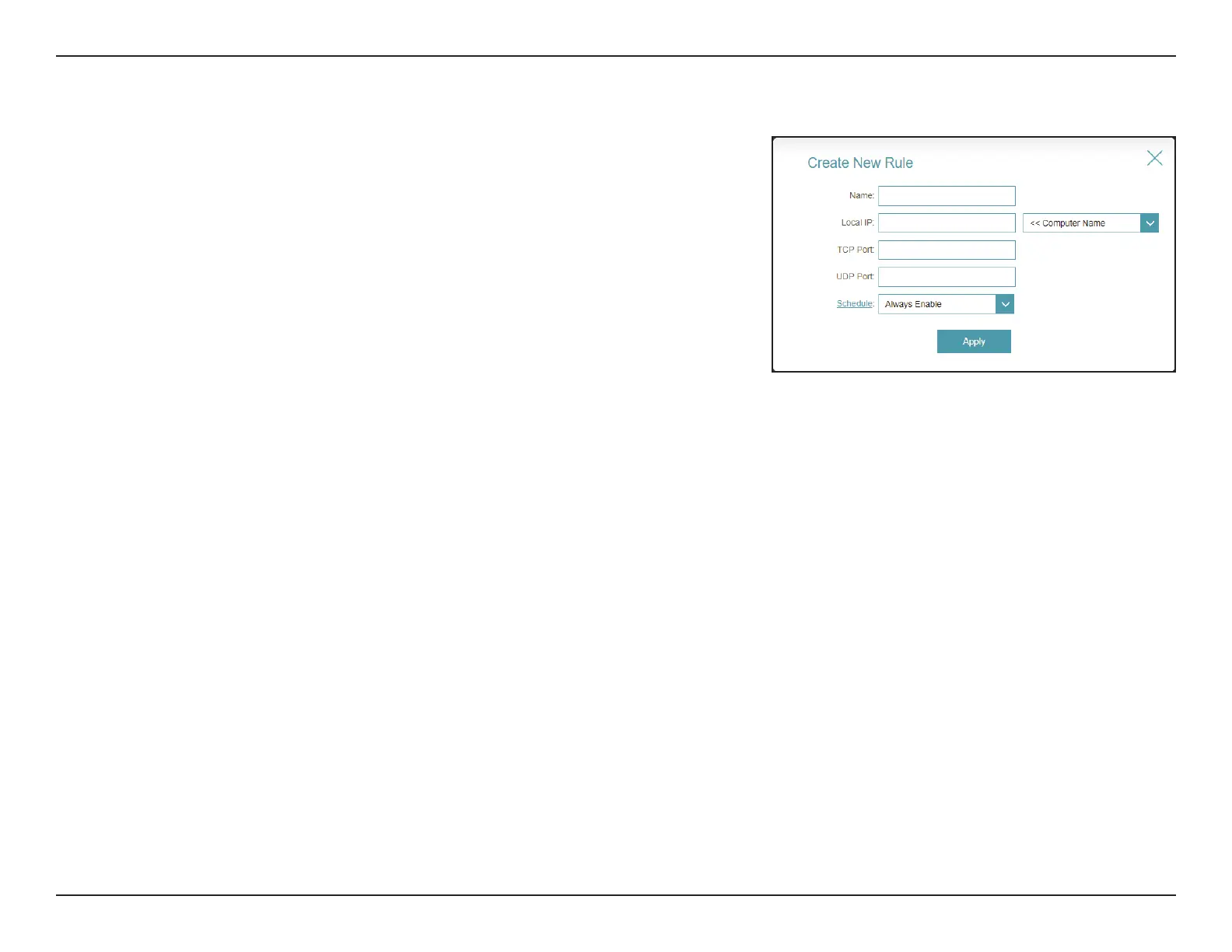

If you clicked on
Edit or Add Rule, the following options will appear:
Name Enter a name for the rule.
Local IP Enter the IP address of the computer on your local network
that you want to allow the incoming service to. Alternatively,
select the device from the drop-down menu.
TCP Port Enter the TCP ports that you want to open. You can enter a
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
UDP Port Enter the UDP ports that you want to open. You can enter a
single port or a range of ports. Separate ports with a comma
(for example: 24,1009,3000-4000).
Schedule Use the drop-down menu to select the time schedule that
the rule will be enabled for. The schedule may be set to
Always Enable, or you can create your own schedules in the
Schedules section. Refer to Time & Schedule - Schedule on
page 81 for more information.

D-Link EXO AX DIR-X1560 Specifications

General

Wi-Fi Technology	Wi-Fi 6 (802.11ax)
Dual Band	Yes
Maximum Data Rate	1500 Mbps
Antenna Type	External
MU-MIMO	Yes
OFDMA	Yes
Beamforming	Yes
USB Port	No
LAN Ports	4 x Gigabit
WAN Ports	1 x Gigabit
Wireless Speed	1200 Mbps on 5GHz, 300 Mbps on 2.4GHz
Security	WPA3
