D-Link Express EtherNetwork DI-604 User Manual

-10-
Configuring the DI-604
The DI-604 provides an embedded Web-based management utility
making it operating system independent. You can configure your DI-604
through the Netscape Communicator or Internet Explorer browser in MS
Windows, Macintosh, Linux or UNIX based platforms. All that is needed is
a web browser such as Internet Explorer or Netscape Navigator version 4
and higher with Java Script enabled.
Start-up and Log in

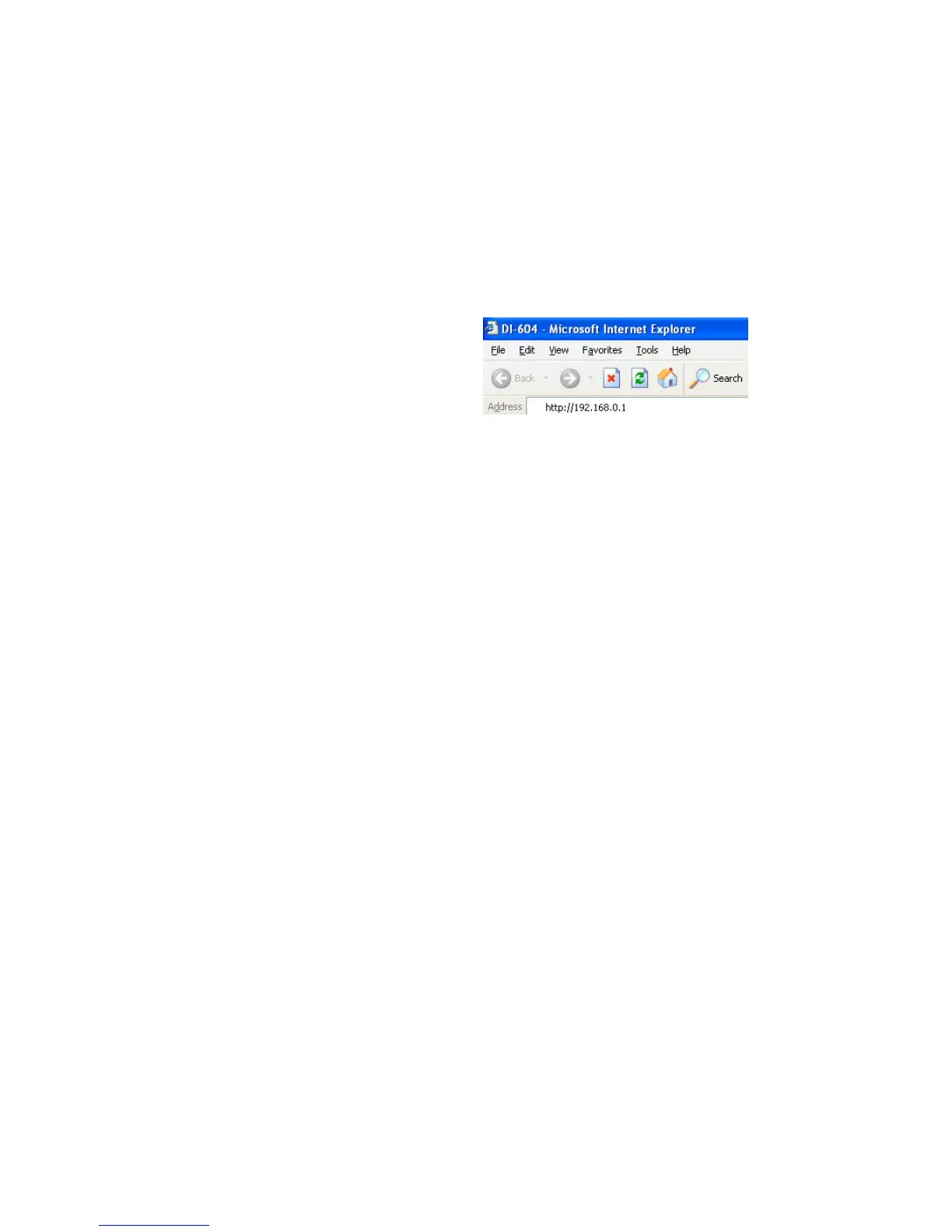

Activate your web browser and type in the IP address of the DI-604 into
the Location (for Netscape) or Address (for IE) field and press “Enter.” The
default IP address of the DI-604 is
192.168.0.1
For example: http://192.168.0.1
After the connection is established, the logon screen will pop up.
To log in as an administrator, enter the username of “admin” and the
password (there are no default password, leave it blank). Click the OK
button. If the password is correct, the web-management interface will
appear.

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
