D-Link Express EtherNetwork DI-604 User Manual

-17-
Using the Configuration Menu

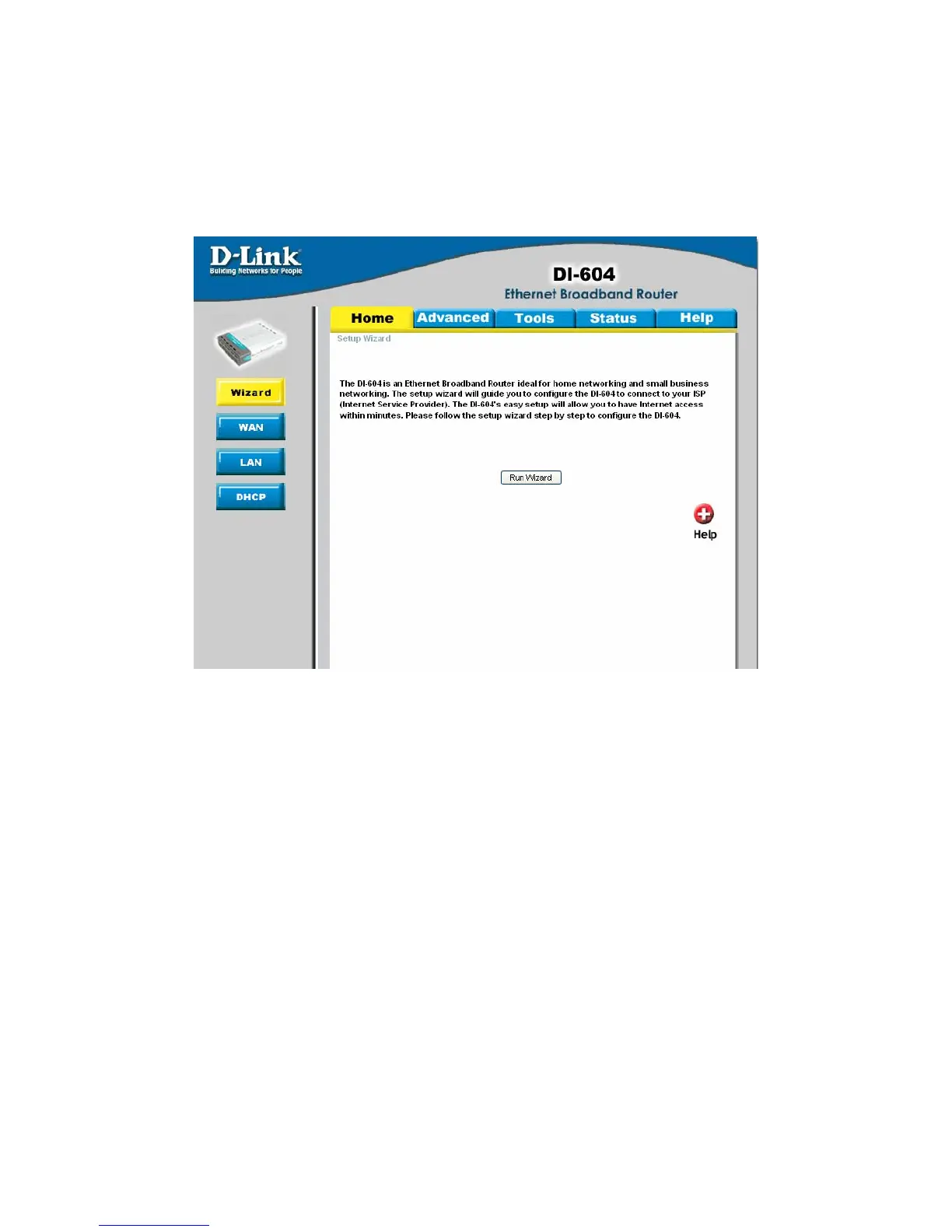

Setup Wizard
The Setup Wizard page is the first page that appears when logging into
the web-based management interface. The Setup Wizard is a utility used
to quickly configure the DI-604. It will guide you through four quick and
basic steps to help you connect to your ISP. You will be connected to your
ISP (Internet Service Provider) and have Internet access within minutes.
WAN
WAN is short for Wide Area Network. The WAN settings can be referred to
as the Public settings. All IP information in the WAN settings are public IP
addresses which are accessible on the Internet.
The WAN settings consist of three options: Dynamic IP Address, Static
IP Address, PPPoE, and Others. Select the appropriate option and fill in
the information needed to connect to your ISP.

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
