D-Link Express EtherNetwork DI-604 User Manual

-49-
Troubleshooting
If you do not wish to set the static IP address on your PC, you will need to
configure your PC to request an IP address from the gateway.
Click the Start button, select Settings, and select Control Panel.
Double-click the Network icon.

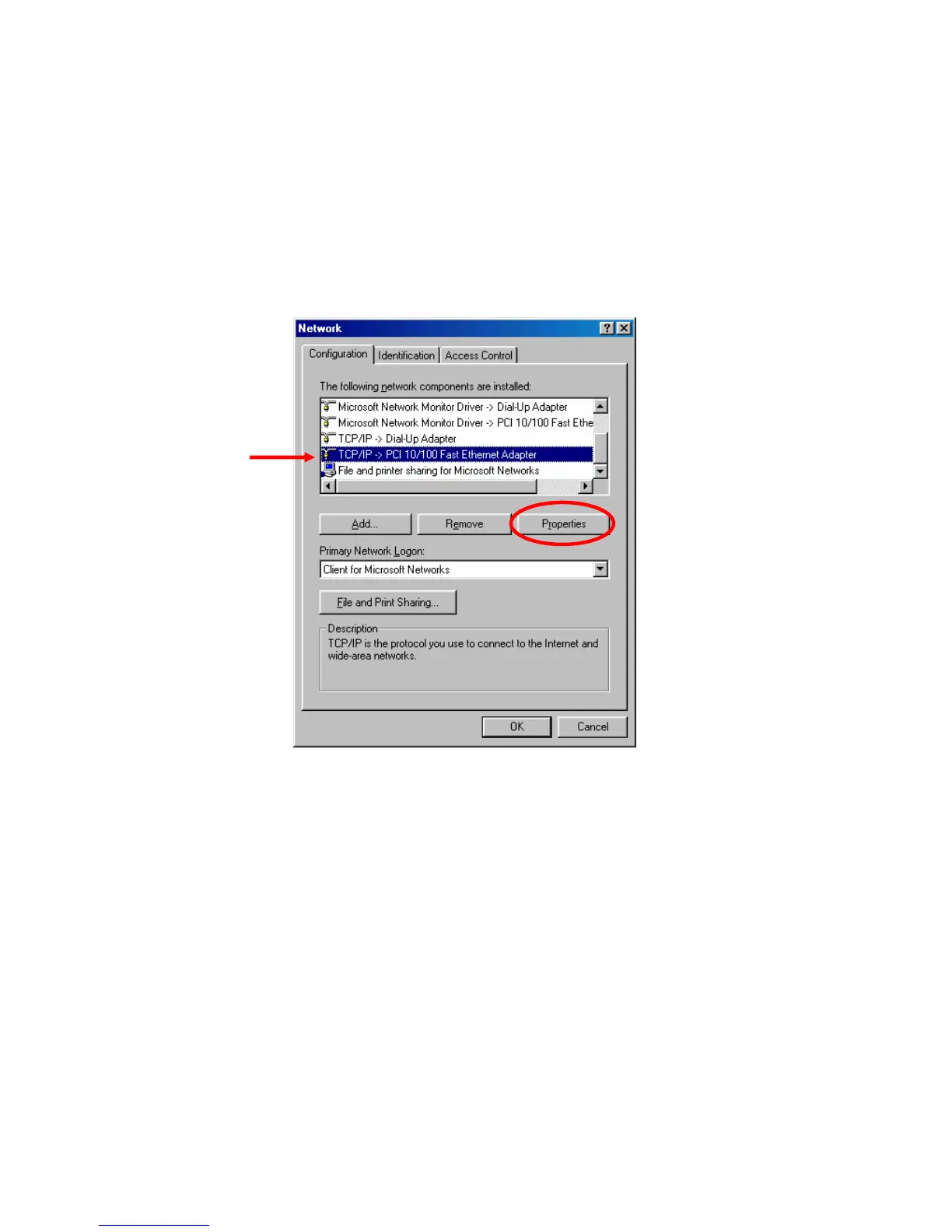

In the configuration tab, select the TCP/IP protocol line that has been
associated with your network card/adapter. If there is no TCP/IP line listed,
you will need to install TCP/IP now.
Click the Properties button.

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
