D-Link Express EtherNetwork DI-604 User Manual

-8-
Hardware Description

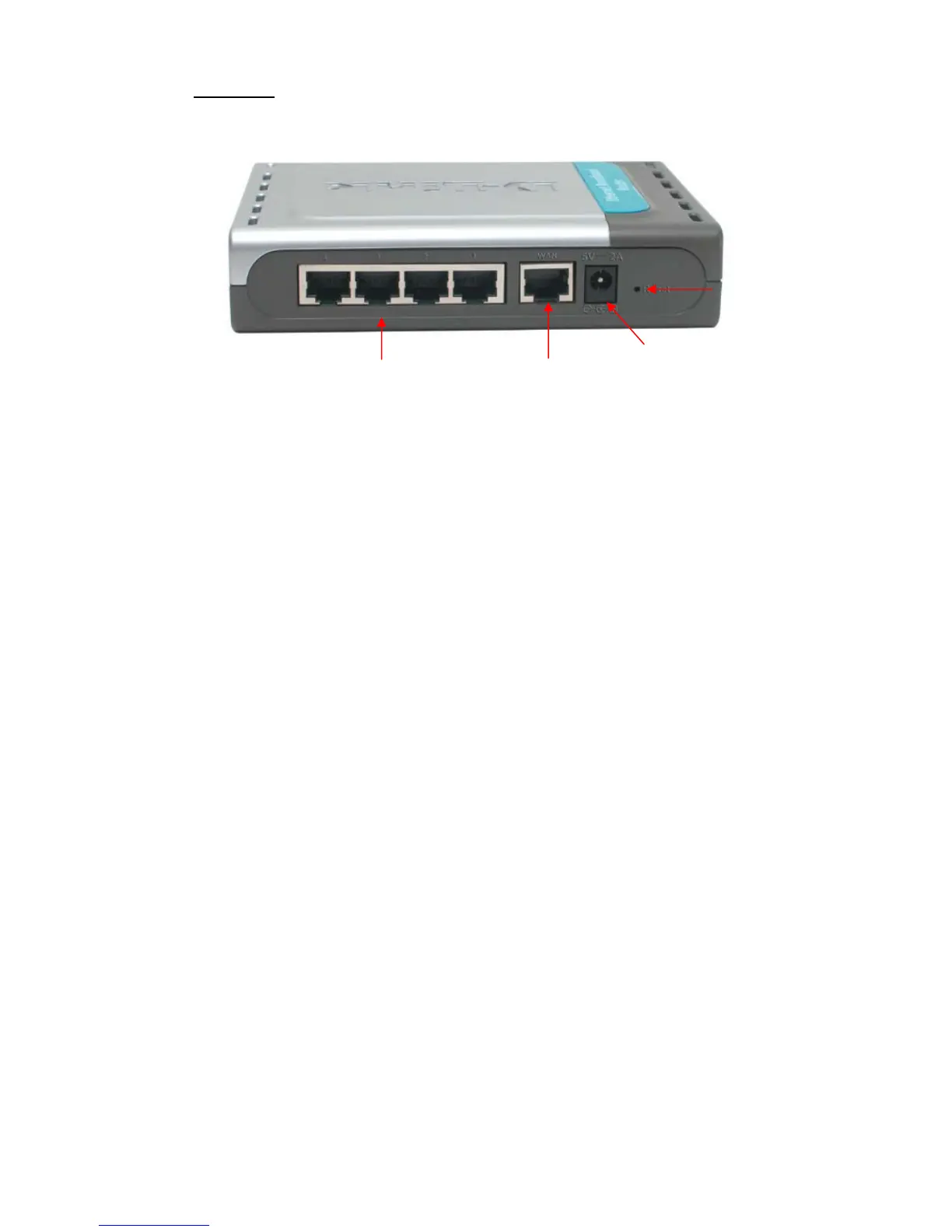

Rear Panel
Reset
Used to restore the DI-604 back to factory default settings.
LAN
PORTS
1-4
LAN port sockets (CAT5 Ethernet RJ-45 cable). The LED
glows steadily when a port is connected to a hub, switch or
network-adapter-equipped computer in your local area network
(LAN.)
WAN
WAN port socket (CAT5 Ethernet RJ-45 cable). This is where
you will connect to your Cable or DSL modem.
Power
Connect one end of your included power adapter to the power
port and the other end into your power outlet.
Reset
To reset the system settings to factory defaults, please follow these steps:
1. Leave the device powered on, do not disconnect the power
2. Press the reset button and hold (use a paper-clip)
3. Keep the button pressed about 10 seconds
4. Release the button
The DI-604 will then automatically reboot itself.
WAN
LAN
Reset
Power

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
