D-Link Express EtherNetwork DI-604 User Manual

-54-

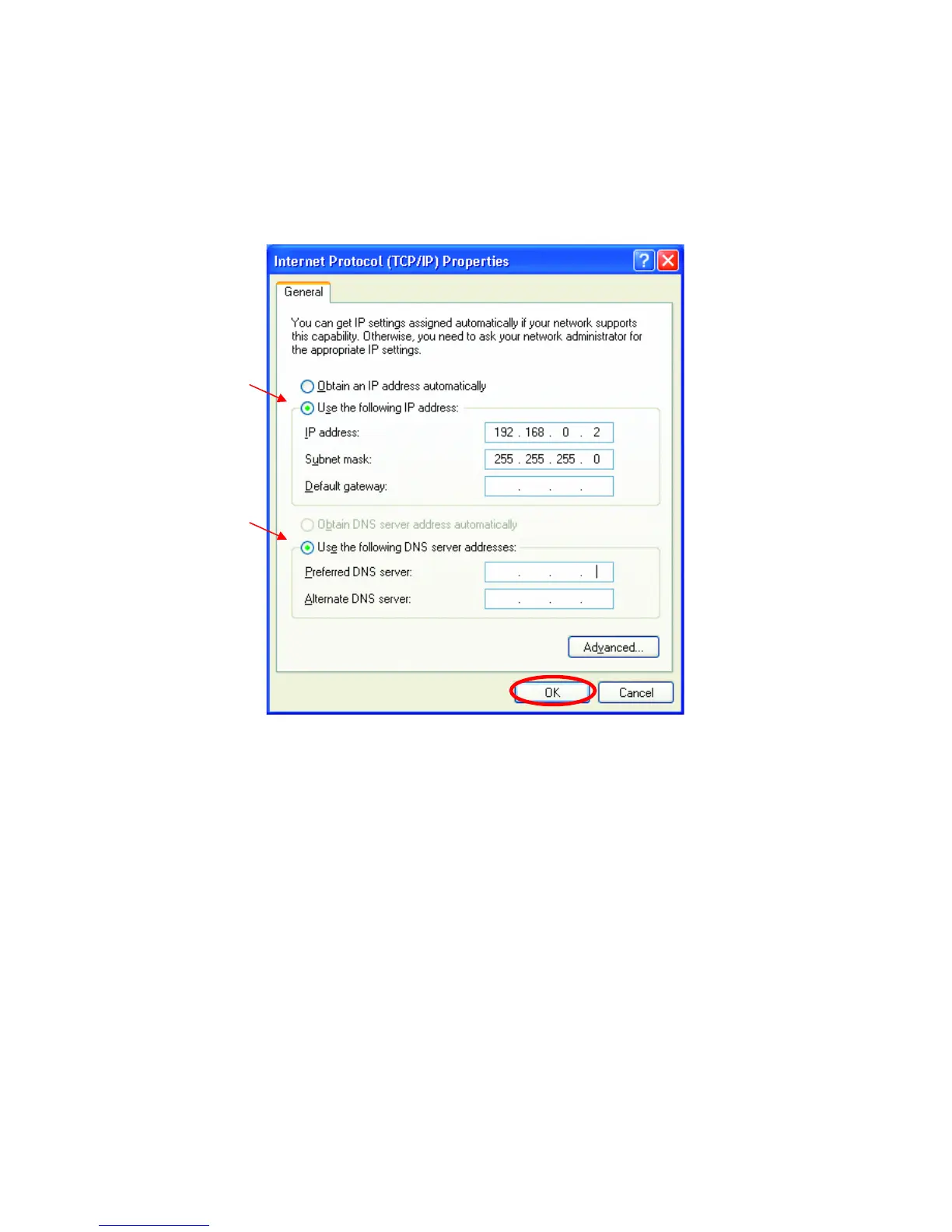

Select Use the following IP address in the Internet Protocol (TCP/IP)
Properties window.
Input your IP address and subnet mask. (The IP Addresses on your
network must be within the same range. For example, if one computer has
an IP Address of 192.168.0.2, the other computers should have IP
Addresses that are sequential, like 192.168.0.3 and 192.168.0.4. The
subnet mask must be the same for all the computers on the network.)
Input your DNS server addresses.
The DNS server information will be provided by your ISP (Internet Service
Provider.)
Click OK
You have completed the assignment of a Static IP Address. (You do not
need to assign a Static IP Address if you have a DHCP-capable
Gateway/Router.)

D-Link Express EtherNetwork DI-604 Specifications

General

Category	Wireless Router
Model	DI-604
Connectivity Technology	Wired
Data Link Protocol	Ethernet, Fast Ethernet
Standards	IEEE 802.3, IEEE 802.3u
WAN Ports Qty	1
LAN Ports Qty	4
Firewall	Yes
VPN Pass-through	Yes
Features	NAT support, DHCP support, DMZ port
Ports	5 x Ethernet 10/100 Mbps
Weight	0.75 lbs
