D-Link GO-SW-5G User Manual

D-Link GoSwitch5G/GoSwitch8G Unmanaged Gigabit Ethernet Switch
3
• Store-and-Forward switching method
• Supports 2K(GoSwitch5G)/ 8K(GoSwitch8G) absolute MAC addresses
• Supports 128KBytes RAM for data buffering
• IEEE 802.3x flow control for full duplex
• Back pressure flow control for half duplex
• Jumbo Frame Support at 1000Mbps ( 9216Bytes )
Front-Panel Components
The top case of the Switch consists of LED indicators, 5/8 (10/100/1000 Mbps) Ethernet ports.

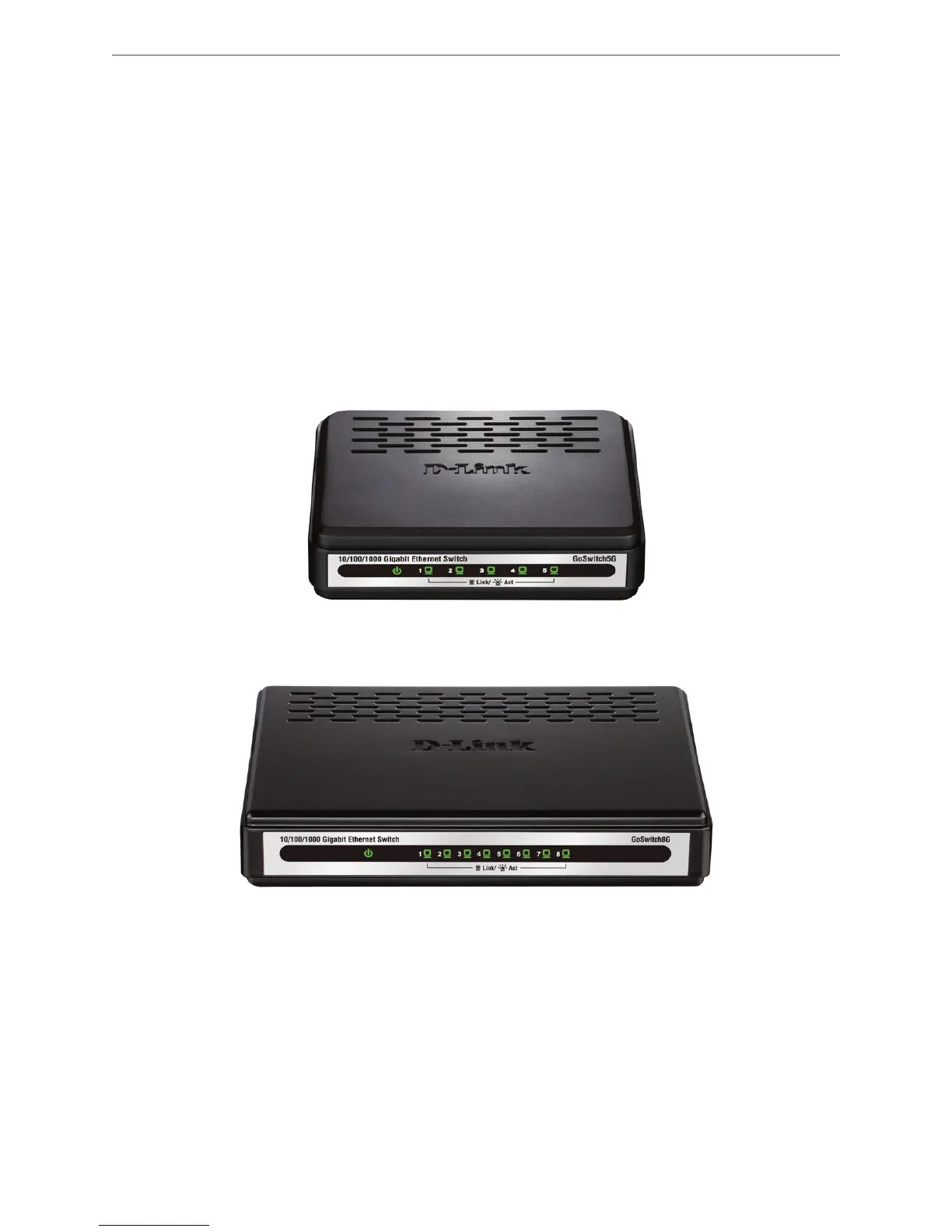

Figure 1-1. Front Panel View of the Switch
Comprehensive LED indicators display the status of the Switch and the network.

D-Link GO-SW-5G Specifications

General

Switching Capacity	10 Gbps
MAC Address Table Size	2K entries
Jumbo Frame Support	9, 216 bytes
Fanless Design	Yes
Data Transfer Rate	10/100/1000 Mbps
Ports	5 Gigabit Ethernet ports
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power Consumption	2.5 Watts max
