5 Configuration D-Link Web Smart Switch User Manual

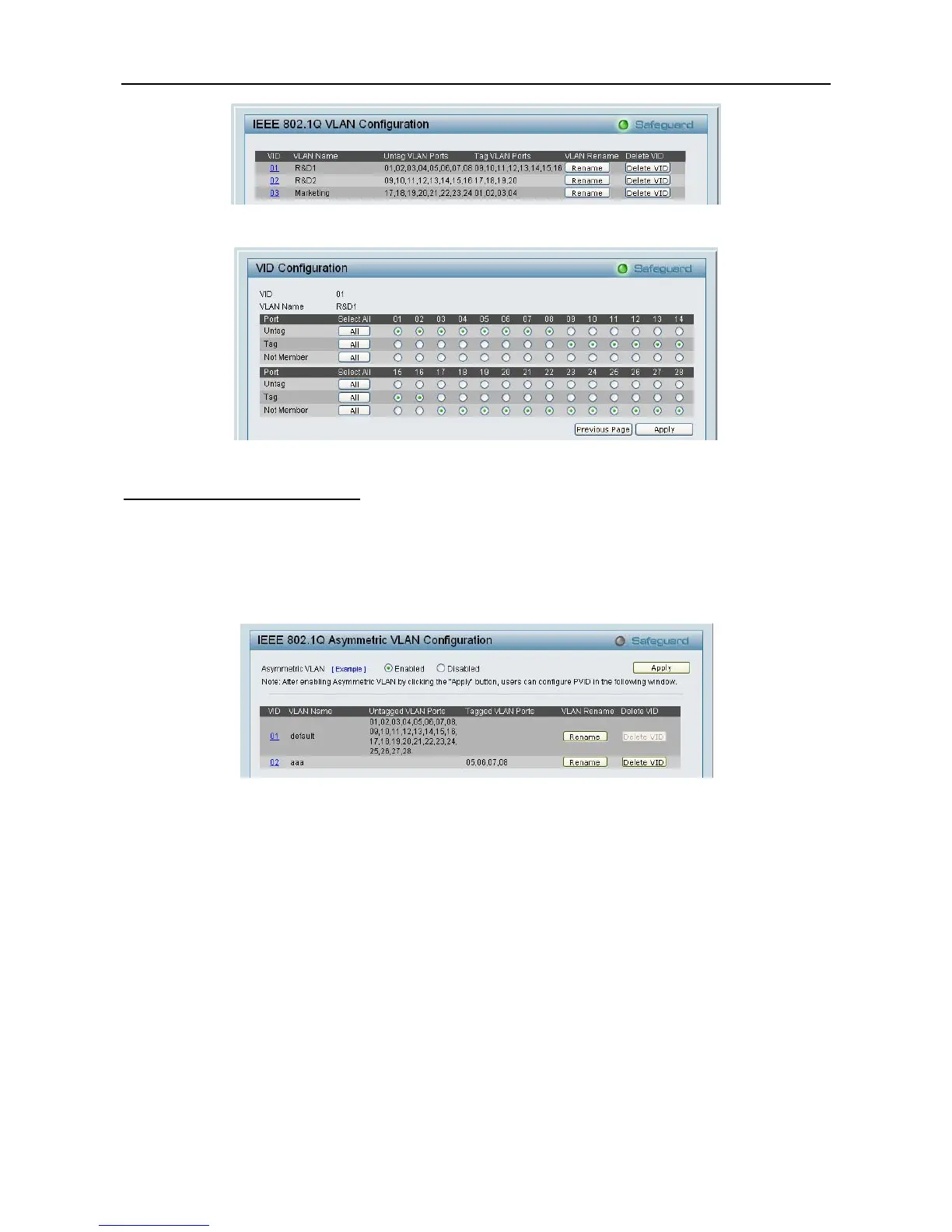

Figure 45 – Configuration > 802.1Q VLAN > Example VIDs
Figure 46 – Configuration > 802.1Q VLAN > VID Assignments
Configuration >Asymmetric VLAN
This function is located in the 802.1Q Configuration page; it allows devices in different VLANs to
communicate with the servers, firewalls or other shared resource in the shared VLAN. This configuration is
accomplished in three steps:
1. Enabling Asymmetric VLAN
2. Creating VLAN
3. Setting PVID
Figure 47 – Configuration > 802.1Q VLAN > Asymmetric VLAN
Click Example to open the page and follow the instructions below to configure Asymmetric VLAN
2
2
8
8
To Next Page
