xStack® DGS-3420 Series Layer 2+ Managed Stackable Gigabit Switch Hardware Installation Reference Guide
22
Installing SFP and SFP+ Ports
The Switch is equipped with SFP (Small Form Factor Portable) and SFP+ ports, which are used with fiber-optical
transceiver cabling.SFP ports support full-duplex transmissions, auto-negotiation, and can be uplinked with various other
switches across a gigabit network. The SFP ports support data rates of up to 1Gbit/s and the SFP+ ports support data
rates of up to 10Gbit/s.
See the figure below for installing the SFP ports in the Switch.

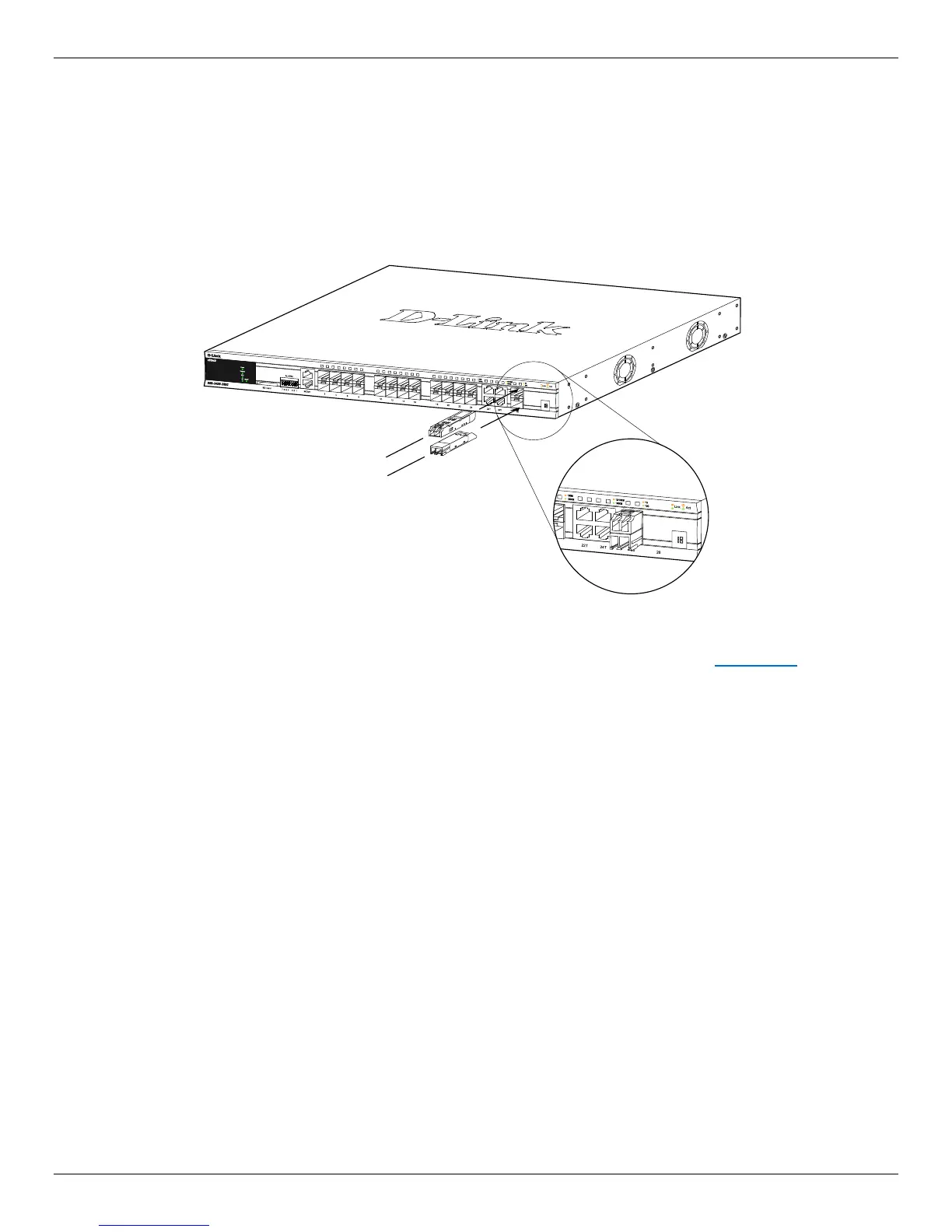

Figure 2–5 Inserting fiber-optic transceivers into a DGS-3420 Series Switch
For a full list of supported transceivers compatible with this switch series, refer to Port Functions on page 43
.
