xStack® DGS-3420 Series Layer 2+ Managed Stackable Gigabit Switch Hardware Installation Reference Guide
26

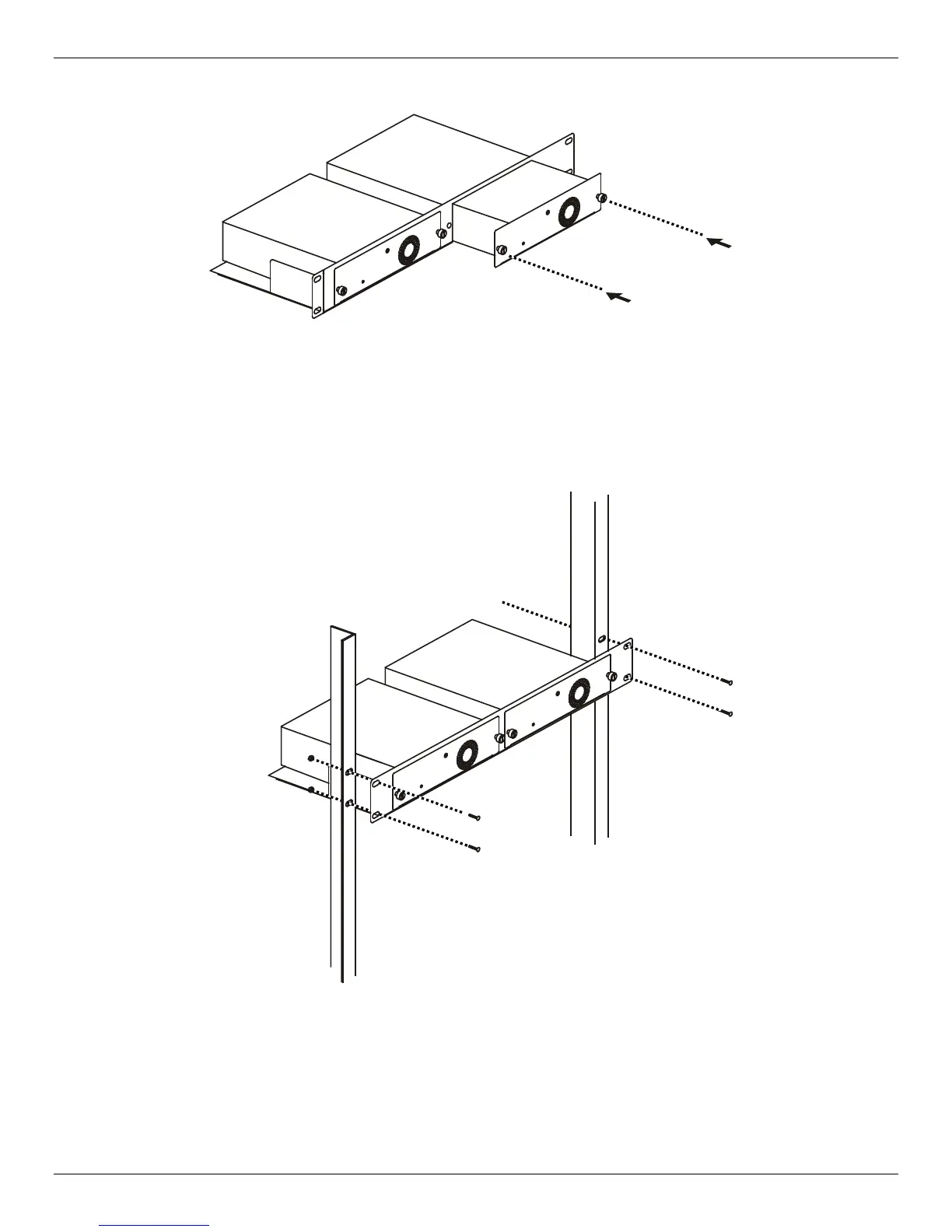

Figure 2–9 Install the DPS-500 in the DPS-800
The RPS can be mounted in a standard 19" rack. Use the following diagram to guide you.
Figure 2–10 Install the DPS-800 in an Equipment Rack
