2

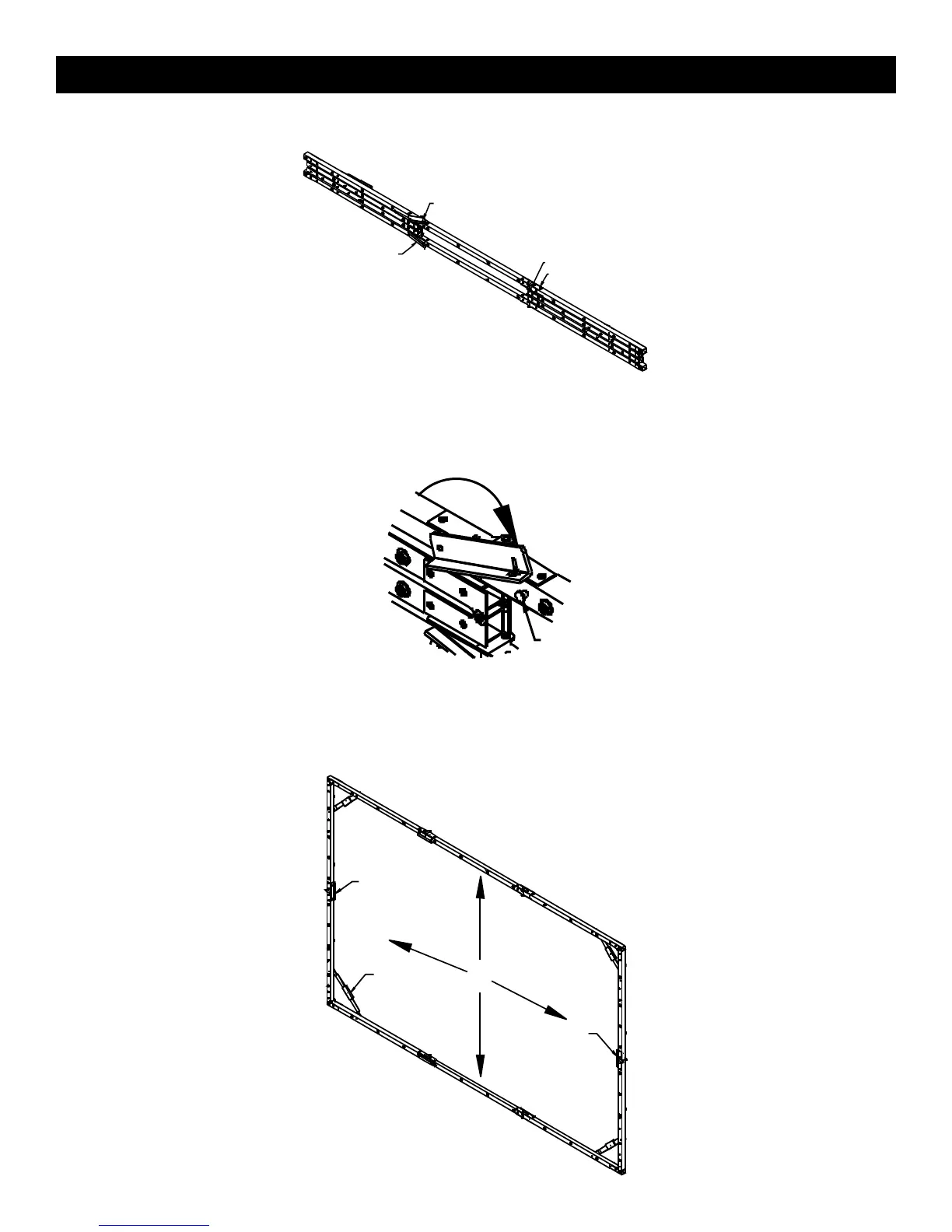

3. Rotate the frame 90 degrees as shown below (front view).
4. Rotate the latches on both sides until they lock with the rivets as shown below.
5. While holding the bottom of the frame in place, lift the top of the frame to unfold the sides. Lock down all four
corners and all remaining latches.
PROCEDURE
LATCH
LATCH
LATCH
LATCH
LOOKING FROM THE FRONT
TOP
ROTATE LATCH UNTIL IT LOCKS
WITH RIVET ON BOTH SIDES
RIVET
LATCH
LATCH
TOP
LOCK
DOWN THE
CORNERS
