ENGLISH
23

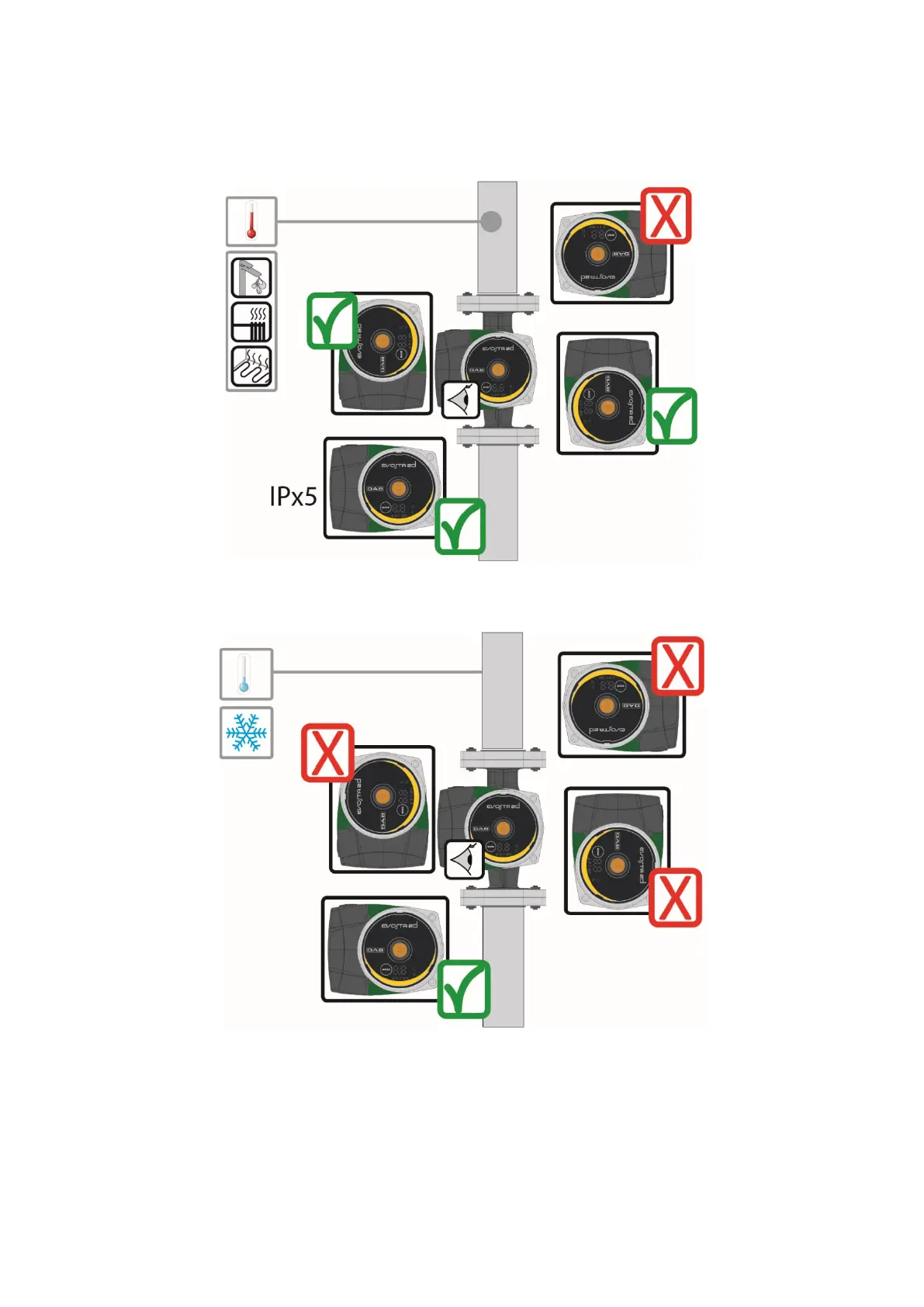

8.2.1 Positioning of the user interface in heating and domestic hot water systems
It is possible to position the user interface with the cable facing to the left, to the right, or downwards.
Figure 4: Positions of the user interface
8.2.2 Positioning of the user interface in conditioning and cold water systems
The user interface can be positioned only with the cable facing downwards.
Figure 5: Positions of the user interface
8.3 Rotation of the user interface
If the circulator is installed on pipes in a horizontal position, it will be necessary to rotate the interface with the
respective electronic device through 90 degrees in order to maintain the grade of IP protection and to allow
the user a more convenient interaction with the graphic interface.
