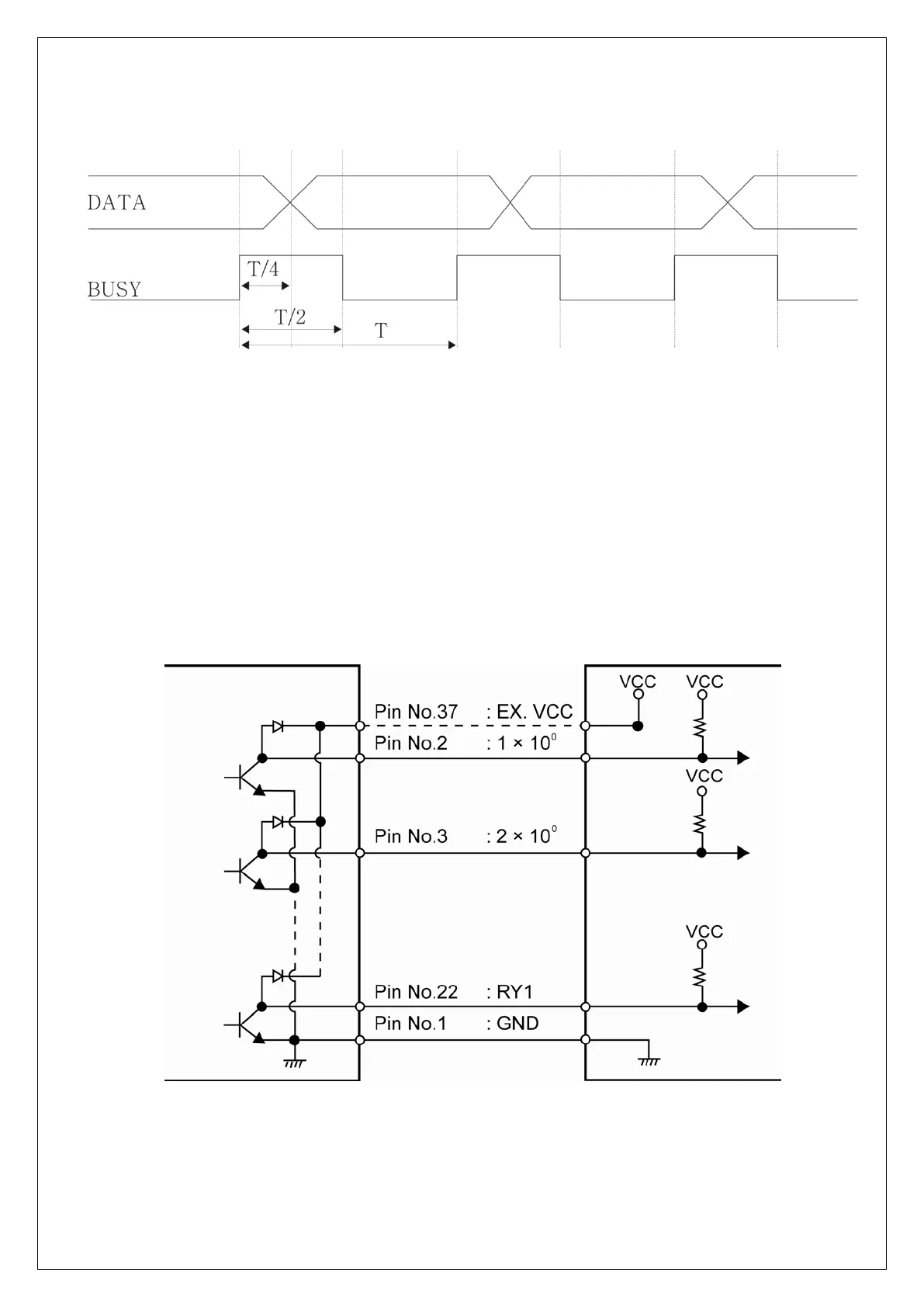

• Signal output
DATA output TIME(T) can set to Function F-04 BCD Mode.
(50, 100, 200, 500, 1000㎳)
• Signal logic
① BCD DATA output : Negative logic (Negative)
② BUSY output : DATA READ = L
③ polarity output : “+” = H, “-” = L
④ RALAY output : RY1 ~ RY4 = L
• BCD 출력 회로
INDICATOR 외부 기기
· External VCC : 50V Max
· Current : 500mA Max
To Next Page
