Electrical Connection
WARNING
Wire the range only in compliance with local ordinances.
Improper connection of the electrical wiring can cause an
electric shock hazard and damage the appliance. Dacor
is not responsible for damages resulting from improper
installation.
Connect the ground terminal (or lead) on the appliance to a
grounded, metallic, permanent wiring system or grounding
conductor.
Do not use an extension cord with this appliance. Such use
may result in fire, electric shock or other personal injury.
Do not install a fuse in the neutral or ground circuit. A fuse
in the neutral or ground circuit may result in an electric
shock hazard.
•
•
•
•
•
NOTE: Ranges equipped for use in Canada come from the
factory pre-wired. If installing a pre-wired range, skip to the Gas
Supply Connection section on page 15.
IMPORTANT:
Do not disconnect any of the wires inside the range electrical
box unless instructed to do so.
Make sure that the conduit or appliance cord is long enough
to allow the range to be pulled out for service without
disconnecting it from power.
For safety, replace the electrical access cover after
connecting the wiring.
•
•
•
Installation Instructions

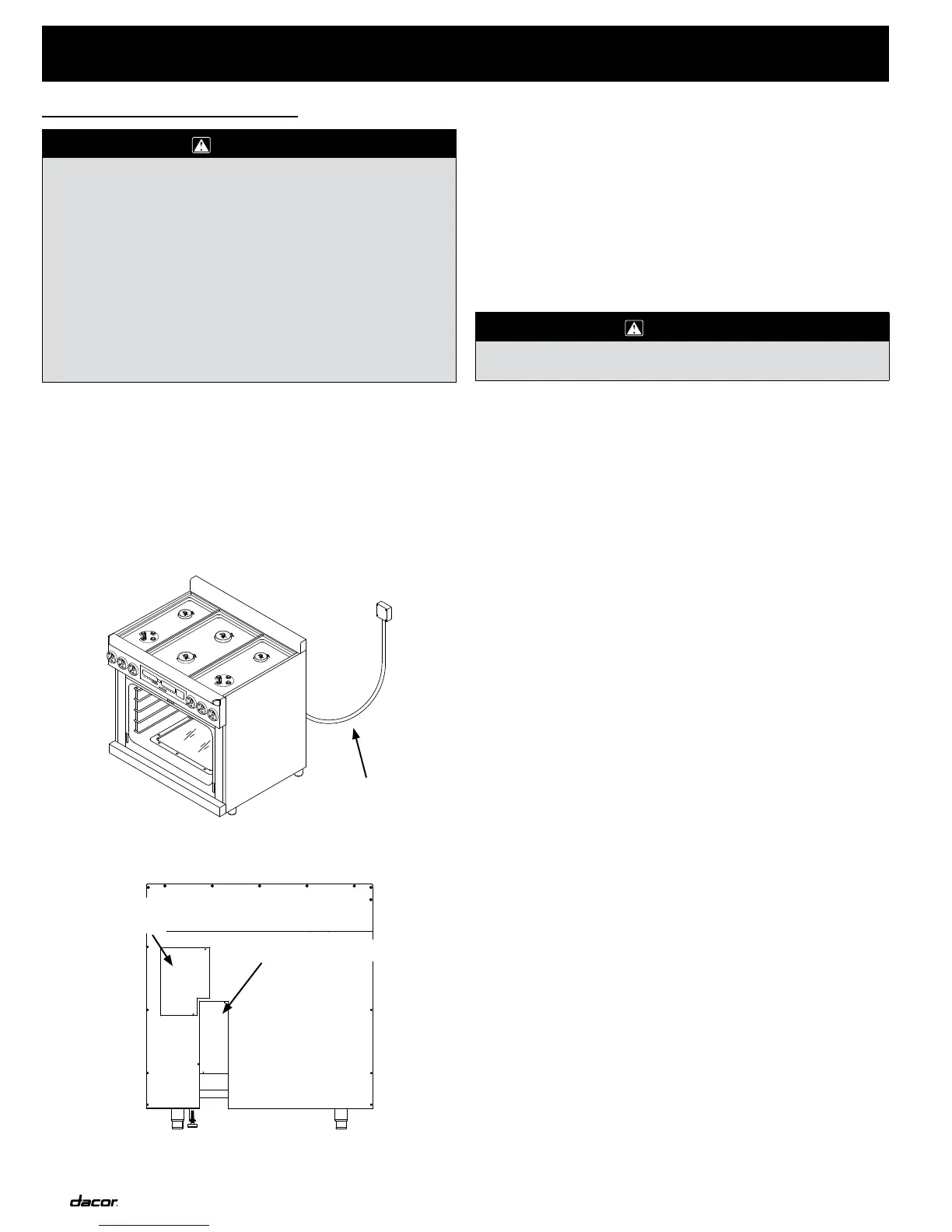

Put slack in electrical
wiring and gas line
Refer to the range rating label (see page 3) for power
requirements.
There are four possible ways to wire the range:
4 Wire Conduit
3 Wire Conduit (where local codes permit)
4 Wire Appliance Cord (where local codes permit)
3 Wire Appliance Cord (where local codes permit)
The sections below and on the following pages give directions for
connecting each type of wiring harness.
WARNING
Do not connect the green appliance wire to the neutral (white)
supply wire unless local building codes permit.
Connecting Conduit to the Range
NOTE: For connection of an appliance cord, see page 14.
Remove the range electrical access cover from the back of
the range.
If using a 4 Wire connection, loosen the grounding screw and
remove the neutral to ground jumper link.
Remove the nut from the conduit strain relief (not included).
Slide the wires and the end of the strain relief into the hole on
the bottom of the range electrical box.
Before connecting the wires, slide the strain relief nut over
the wires and thread it onto the conduit strain relief inside the
box. Tighten into place.
Connect the white wire to the neutral terminal in the box.
Connect the black wire to the L1 power supply terminal.
Connect the red wire to the L2 power supply terminal.
If using a 4 Wire connection, connect the green wire to the
grounding screw inside the box.
Replace the range electrical access cover.
•
•
•
•
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Gas Regulator
Access Cover
Back of Range
Electrical Access Cover
Gas and Electrical Access Covers
To Next Page
