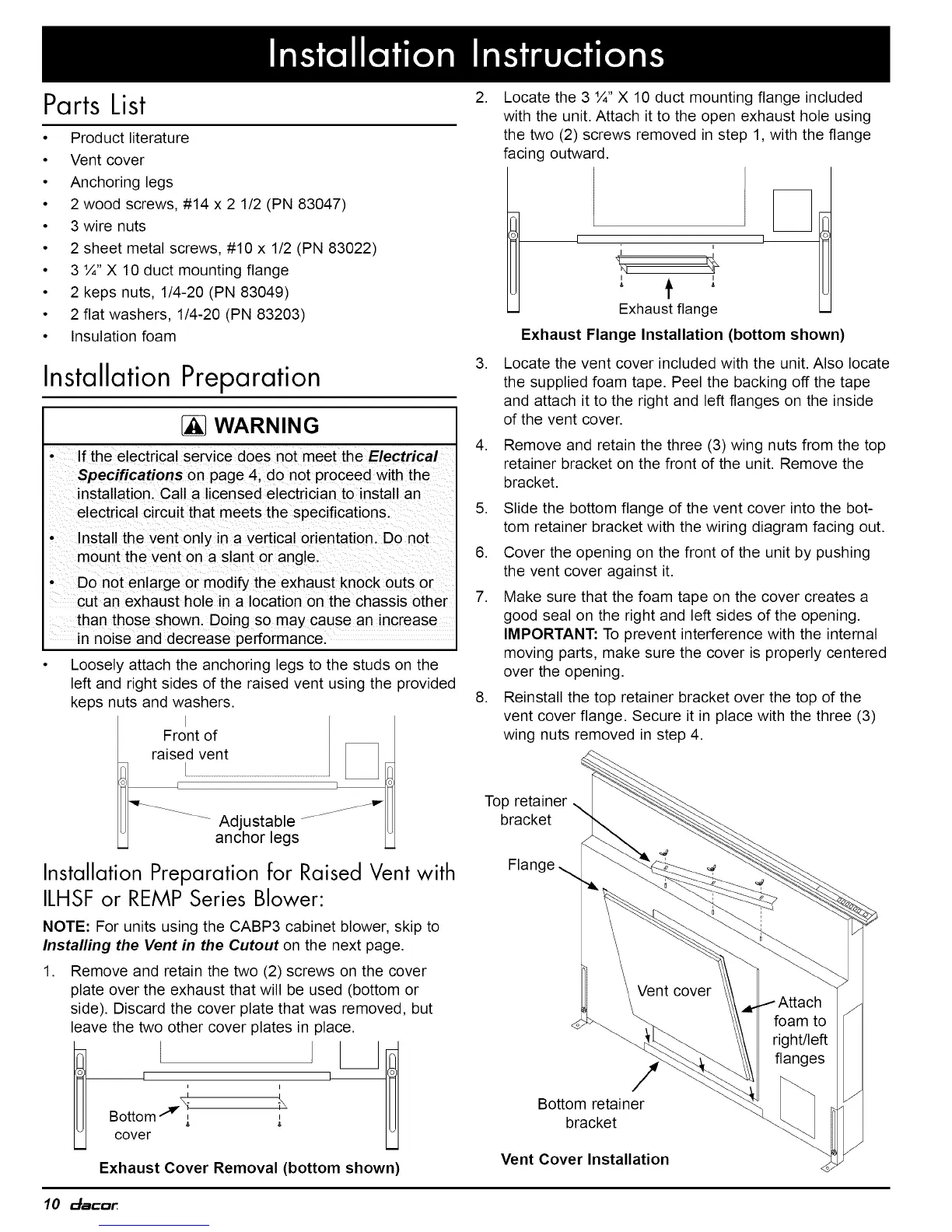

Parts List 2.
• Product literature
• Vent cover
• Anchoring legs
• 2 wood screws, #14 x 2 1/2 (PN 83047)
• 3 wire nuts
• 2 sheet metal screws, #10 x 1/2 (PN 83022)
• 3 ¼" X 10 duct mounting flange
• 2 keps nuts, 1/4-20 (PN 83049)
• 2 flat washers, 1/4-20 (PN 83203)
• Insulation foam
Installation Preparation
[_ WARNING
If the electrical service does not meet the Electrical
Specifications on page 4, do not proceed with the
installation. Call a licensed electrician to install an
electrical circuit that meets the specifications.
• Install the vent only in a vertical orientation. Do not
mount the vent on a slant or angle.
Do not enlarge or modify the exhaust knock outs or
cut an exhaust hole in a location on the chassis other
than those shown. Doing so may cause an increase
in noise and decrease performance.
Loosely attach the anchoring legs to the studs on the
left and right sides of the raised vent using the provided
keps nuts and washers.
I
Front of
raisedv_n
_ Adj_strlb_esJJJ_" I
Installation Preparation for Raised Vent with
ILHSFor REMPSeries Blower:
NOTE: For units using the CABP3 cabinet blower, skip to
Installing the Vent in the Cutout on the next page.
,
Remove and retain the two (2) screws on the cover
plate over the exhaust that will be used (bottom or
side). Discard the cover plate that was removed, but
leave the two other cover plates in place.
! !
_1
ml I.m
Bottom' , i'
cover
Exhaust Cover Removal (bottom shown)
,
,
Locate the 3 ¼" X 10 duct mounting flange included
with the unit. Attach it to the open exhaust hole using
the two (2) screws removed in step 1, with the flange
facing outward.
ml .
I
' t '
Exhaust flange
Exhaust Flange Installation (bottom shown)
Locate the vent cover included with the unit. Also locate
the supplied foam tape. Peel the backing off the tape
and attach it to the right and left flanges on the inside
of the vent cover.
Remove and retain the three (3) wing nuts from the top
retainer bracket on the front of the unit. Remove the
bracket.
5. Slide the bottom flange of the vent cover into the bot-
tom retainer bracket with the wiring diagram facing out.
6. Cover the opening on the front of the unit by pushing
the vent cover against it.
,
,
Make sure that the foam tape on the cover creates a
good seal on the right and left sides of the opening.
IMPORTANT: To prevent interference with the internal
moving parts, make sure the cover is properly centered
over the opening.
Reinstall the top retainer bracket over the top of the
vent cover flange. Secure it in place with the three (3)
wing nuts removed in step 4.
Top retainer
bracket
/
Bottom retainer
bracket
Vent Cover Installation
right/left
flanges
L.
10 c_acar
